Carbon fiber fabric cloth is specified by three numbers: the tow size (3K, 6K, 12K), the areal weight (5.7 oz/yd2 or 193 g/m2 for standard 3K), and the weave (2x2 twill or plain). For almost every skin, panel, tiller, dash, drone frame or knife scale a small shop lays up by hand, the answer is 5.7 oz 3K 2x2 twill, and the real decision is how big a cut to buy and how many plies to stack. This guide settles both.

Tow size: 3K, 6K or 12K

The K number is thousands of filaments in each tow. A 3K tow is about 0.08 in (2 mm) wide in the weave; 12K tows are about 0.2 in (5 mm) wide and the fabric is heavier, cheaper per pound and coarser to look at. Strength per pound of cured laminate barely changes between them, because the filament is the same standard-modulus carbon; what changes is drape, surface finish and how thick one ply comes out.

Tow	Typical fabric	Areal weight	Cured ply, hand laid	Use
1K	Plain weave	3 oz/yd2 (100 g/m2)	0.005 in (0.13 mm)	Tiny parts, fine cosmetic surface
3K	2x2 twill or plain	5.7 oz/yd2 (193 g/m2)	0.010 to 0.012 in (0.25 to 0.3 mm)	Everything from skins to structural panels
6K	2x2 twill, 4-harness satin	8 to 9 oz/yd2 (270 to 300 g/m2)	0.015 in (0.38 mm)	Thicker structural plies, less handling
12K	Plain or twill	11 oz/yd2 (370 g/m2)	0.020 in (0.5 mm)	Bulk plies under a 3K show ply

The cured thickness figures assume a wet layup at roughly 45% fiber volume; vacuum bagging pulls a 3K ply down to about 0.008 in (0.2 mm). Build a part to thickness by counting plies, not by adding resin.

2x2 twill vs plain weave

Plain weave goes over-one-under-one and looks like a checkerboard. It is the most stable fabric to cut and handle, distorts least when you move it, and is the right choice for flat panels and anywhere you cut small pieces. 2x2 twill goes over-two-under-two and reads as the diagonal pattern people mean when they say carbon fiber. It drapes into compound curves without bunching, wets out a little faster because the tows are less crimped, and holds a straighter line on the diagonal, which is why it is the show fabric. The tradeoff is that twill shifts on the bias if you drag it, so cut it with the edges taped and move it flat on a board.

Weave	Drape on curves	Stability when cut	Look	Pick it for
Plain	Fair	Best	Checkerboard	Flat panels, small cuts, inner plies
2x2 twill	Best	Good with taped edges	Diagonal	Show surfaces, curved skins, most jobs
4H or 8H satin	Very good	Poor	Smooth, low crimp	Aerospace-style bagged parts

Width and cut size: buy what the part needs

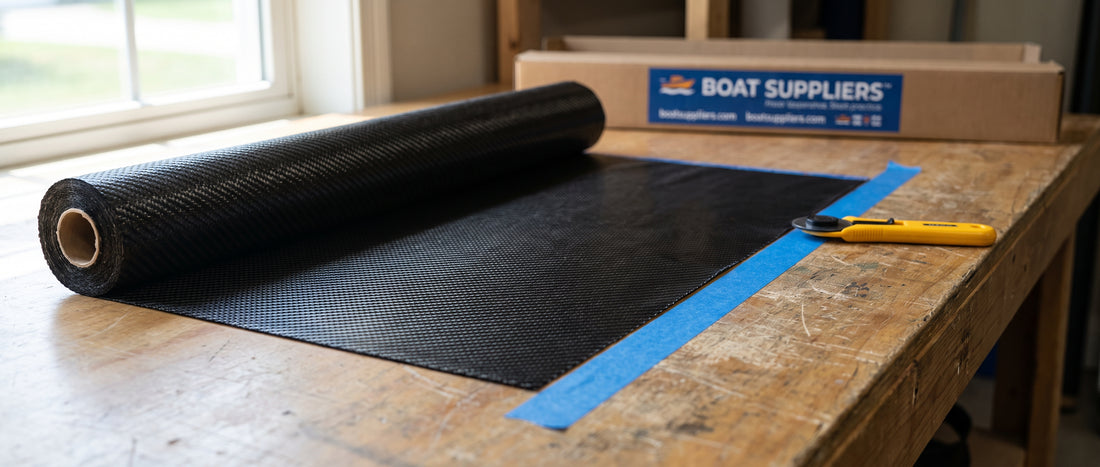

Standard carbon rolls are 50 in or 60 in wide; ours is 60 in, USA-woven 5.7 oz 3K 2x2 twill, and every cut below comes straight across that roll with taped edges so the weave does not fray in shipping or on the bench. Waste is the cost you control here. A 12 in square cut from a 60 in yard leaves offcuts you will never use, so buy the shape that matches the part.

Cut	Area	Fits
12 in x 12 in square	1 sq ft	One knife scale set, a phone-sized test panel, a first layup
12 in x 12 in, 3 pack	3 sq ft	Three plies of one small part, or three small parts
6 in x 5 ft strip	2.5 sq ft	Tiller sleeves, tube wraps, edge strips, drone arms
12 in x 5 ft strip	5 sq ft	Hatch lids, dash faces, a run of medium parts
24 in x 60 in panel	10 sq ft	Skins, seat pans, multi-part sessions

Two rules of thumb. A show ply wants a single uncut piece, so size the cut to the largest dimension of the finished surface plus 1 in of trim on every side. A structural part wants three or more plies, so a strip you can cross-cut into plies is cheaper than three squares. The Carbon Fiber Square 12 in x 12 in - 5.7oz 3K 2x2 Twill is the right first buy to learn wet-out on; the Carbon Fiber Fabric Strip 6 in x 5 ft - 5.7oz 3K 2x2 Twill, Taped Edges covers a tiller or a set of tubes; and the Carbon Fiber Fabric Cut 24 in x 60 in - 5.7oz 3K 2x2 Twill, Taped Edges is the buy for a skin or a day of parts.

Resin for carbon: epoxy, and how much

Carbon fabric is sized for epoxy. Polyester and vinyl ester will wet it and cure, but the bond at the fiber surface is weak, so you get a cosmetic skin, not a structural laminate. Use a laminating epoxy with a 20 to 30 minute pot life at 77F (25C) and mix it by the weight ratio on the can. Woven carbon takes roughly its own weight in resin in a hand layup: 5.7 oz of mixed epoxy per square yard per ply, which is about 6 oz for one ply of a 24 x 60 panel and under 1 oz for a 12 in square. Add a clear fill coat on any show surface, then sand the fill coat only and clear it with a UV-stable 2K urethane; epoxy yellows and chalks in sunlight while the carbon under it does not. Run the plies and area through the resin calculator before mixing.

Carbon dust is conductive and abrasive: a fitted P100 respirator with organic vapor cartridges for the epoxy, nitrile gloves and eye protection, and cut cured carbon wet or with dust extraction.

What we would order for a first structural part, say a 10 in x 14 in bracket at 0.045 in thick: four plies of 3K twill, which is one 24 in x 60 in panel with material left for a second part, plus a 24 oz laminating epoxy kit. For a knife scale set, one 12 in square and a 12 oz kit.

Frequently asked questions

What is the difference between 3K and 12K carbon fiber fabric?

3K tows hold 3,000 filaments and weave into a 5.7 oz/yd2 fabric that cures at about 0.010 in per ply; 12K tows hold 12,000 and weave into 11 oz/yd2 fabric that cures at about 0.020 in per ply with a coarser pattern. Strength per pound is close to identical. Buy 3K for show surfaces and small parts, 12K only as inner bulk plies on big panels.

Is twill or plain weave carbon fiber stronger?

In a cured laminate the difference is within a few percent and the twill is marginally stronger in-plane because its tows are less crimped. Pick by handling instead: 2x2 twill for curved surfaces and the diagonal show look, plain weave for flat panels and cuts under 6 in where twill distorts. For a 4-ply structural panel, use twill throughout and orient plies at 0 and 45 degrees.

How many plies of carbon fiber fabric cloth do I need?

Count plies to thickness at about 0.010 to 0.012 in per ply of 3K twill hand laid. A cosmetic skin over an existing part is 1 ply plus fill coats; a stiff dash panel or bracket is 4 plies (about 0.045 in); a load-bearing tube wrap or seat pan is 6 to 8 plies over a core or a mold. Add one ply if you cannot vacuum bag.

Is there such a thing as white carbon fiber fabric?

No. Carbon filament is black; what sells as white carbon fiber is white fiberglass or dyed aramid woven in a 2x2 twill so it reads like carbon, or a hybrid with white glass tows. It weighs and behaves like the fiber it actually is. If you want the look, buy a 5.7 oz 3K twill and clear it; if you want white, use a colored 6 oz glass twill and understand it has about a third the stiffness.

Can I use polyester resin with carbon fiber fabric?

Only for a cosmetic overlay. The sizing on carbon is formulated for epoxy, and polyester bonds poorly to it, so a structural part will delaminate under load. Use a laminating epoxy at the weight ratio on the can, budget 5.7 oz of mixed resin per square yard per ply, and if the part sits in the sun, top it with a UV-stable clear.
