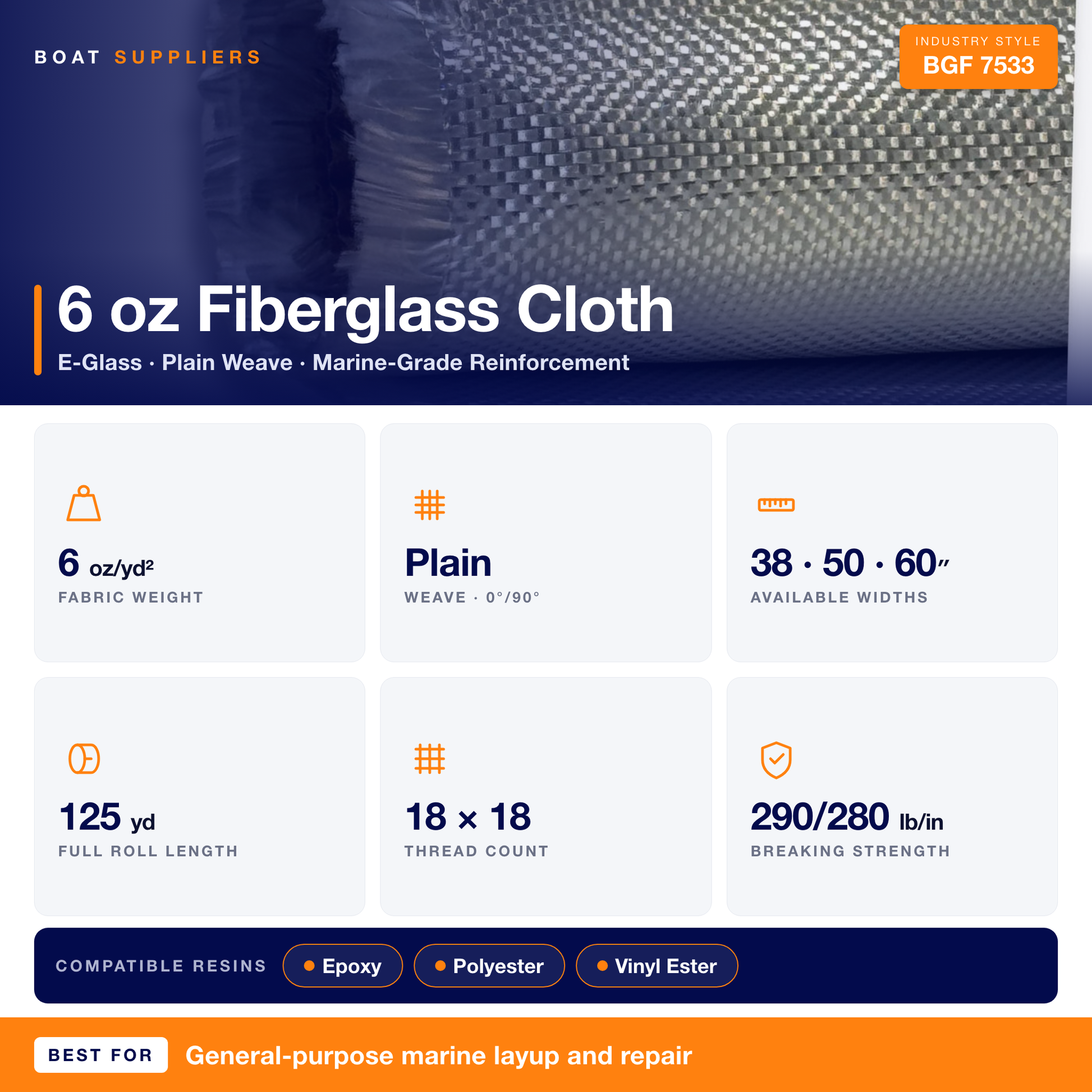

Technical Specifications
E-GlassPlain weaveWorks with Epoxy, Polyester, Vinyl Ester
MaterialE-Glass
Industry Style #BGF 7533
Weight6 oz/yd²
Weave / ConstructionPlain weave
Fiber Orientation0°/90° (woven)
Thickness0.0093"
Available Widths38", 50", 60"
Full Roll Length125 yd
Thread Count18 × 18
Tensile / Breaking Strength290 / 280 lb/in (warp/fill, dry)
Resin-to-Reinforcement Ratio~1:1 by weight
Compatible ResinsEpoxy, Polyester, Vinyl Ester
Best ForGeneral-purpose marine layup and repair
Compare Fabrics
| Product | 6oz Fiberglass E ClothYou're viewingfrom $7.54
| 3oz Fiberglass E Clothfrom $10.79
| 4oz Fiberglass E Clothfrom $5.96
| 10oz Fiberglass E Clothfrom $9.75
|
|---|---|---|---|---|
| Material | E-Glass | E-Glass | E-Glass | E-Glass |
| Style | BGF 7533 | — | BGF 1522 | BGF 7500 |
| Weight | 6 oz/yd² | 3.2 oz/yd² | 4 oz/yd² | 10 oz/yd² |
| Weave | Plain weave | Plain weave | Plain weave | Plain weave |
| Orientation | 0°/90° (woven) | 0°/90° (woven) | 0°/90° (woven) | 0°/90° (woven) |
| Thickness | 0.0093" | — | 0.0059" | 0.0154" |
| Widths | 38", 50", 60" | 38" | 30", 50" | 38", 50" |
| Full Roll | 125 yd | 125 yd | 125 yd | 125 yd |
| Thread Count | 18 × 18 | — | 24 × 22 | 16 × 14 |
| Tensile Strength | 290 / 280 lb/in (warp/fill, dry) | — | 170 / 160 lb/in (warp/fill, dry) | 490 / 430 lb/in (warp/fill, dry) |
| Resin Ratio | ~1:1 by weight | ~1:1 by weight | ~1:1 by weight | ~1:1 by weight |
| Resins | Epoxy, Polyester, Vinyl Ester | Epoxy, Polyester, Vinyl Ester | Epoxy, Polyester, Vinyl Ester | Epoxy, Polyester, Vinyl Ester |
| Best For | General-purpose marine layup and repair | Lightweight finishing and surface coats | Lightweight repairs and surfboard work | Medium-weight structural reinforcement |
| View | View | View |
