5.7 oz Plain Weave Carbon Fiber Tape (3K)

5.7 oz0°/90°2", 3", 4", 6" or 12" wide

1 2

Boat Suppliers

5.7 oz Plain Weave Carbon Fiber Tape (3K)

SKU:FG-CF5702-01

$8.45 USD

$8.45 USD ~~USD~~

$8.45 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 2"

2" 3" 4" 6" 12"

Length: 1 Yard

1 Yard 3 Yards 5 Yards 10 Yards 25 Yards Full Roll (50 Yards)

Quantity

Key Specs

Weight: 5.7 oz/yd² (193 g/m²)
Fiber Angle: 0°/90° (woven)
Widths: 2 in, 3 in, 4 in, 6 in, 12 in
Compatible Resins: Epoxy, Vinyl Ester
Ships: Rolled, never folded

Order several sizes at once width by length, one add to cart

Width	1 Yard	3 Yards	5 Yards	10 Yards	25 Yards	Full Roll (50 Yards)
2"	2" 1 Yard $8.45	2" 3 Yards $23.45	2" 5 Yards $37.45	2" 10 Yards $71.95	2" 25 Yards $177	2" Full Roll (50 Yards) $348.45
3"	3" 1 Yard $9.45	3" 3 Yards $26.45	3" 5 Yards $42.45	3" 10 Yards $81.95	3" 25 Yards $201.25	3" Full Roll (50 Yards) $395.45
4"	4" 1 Yard $11.45	4" 3 Yards $32.45	4" 5 Yards $51.95	4" 10 Yards $100.95	4" 25 Yards $248	4" Full Roll (50 Yards) $487.45
6"	6" 1 Yard $15.95	6" 3 Yards $45.95	6" 5 Yards $73.95	6" 10 Yards $142.95	6" 25 Yards $351.45	6" Full Roll (50 Yards) $692.45
12"	12" 1 Yard $19.95	12" 3 Yards $56.95	12" 5 Yards $91.45	12" 10 Yards $175.45	12" 25 Yards $417.45	12" Full Roll (50 Yards) $795.45

Nothing selected yet

Upgrade your project with 5.7oz Plain Weave Carbon Fiber, a premium composite material designed for superior strength, lightweight performance, and exceptional durability. This high-quality 3K carbon fiber fabric features a classic plain weave pattern, ensuring easy handling and a sleek, professional finish.

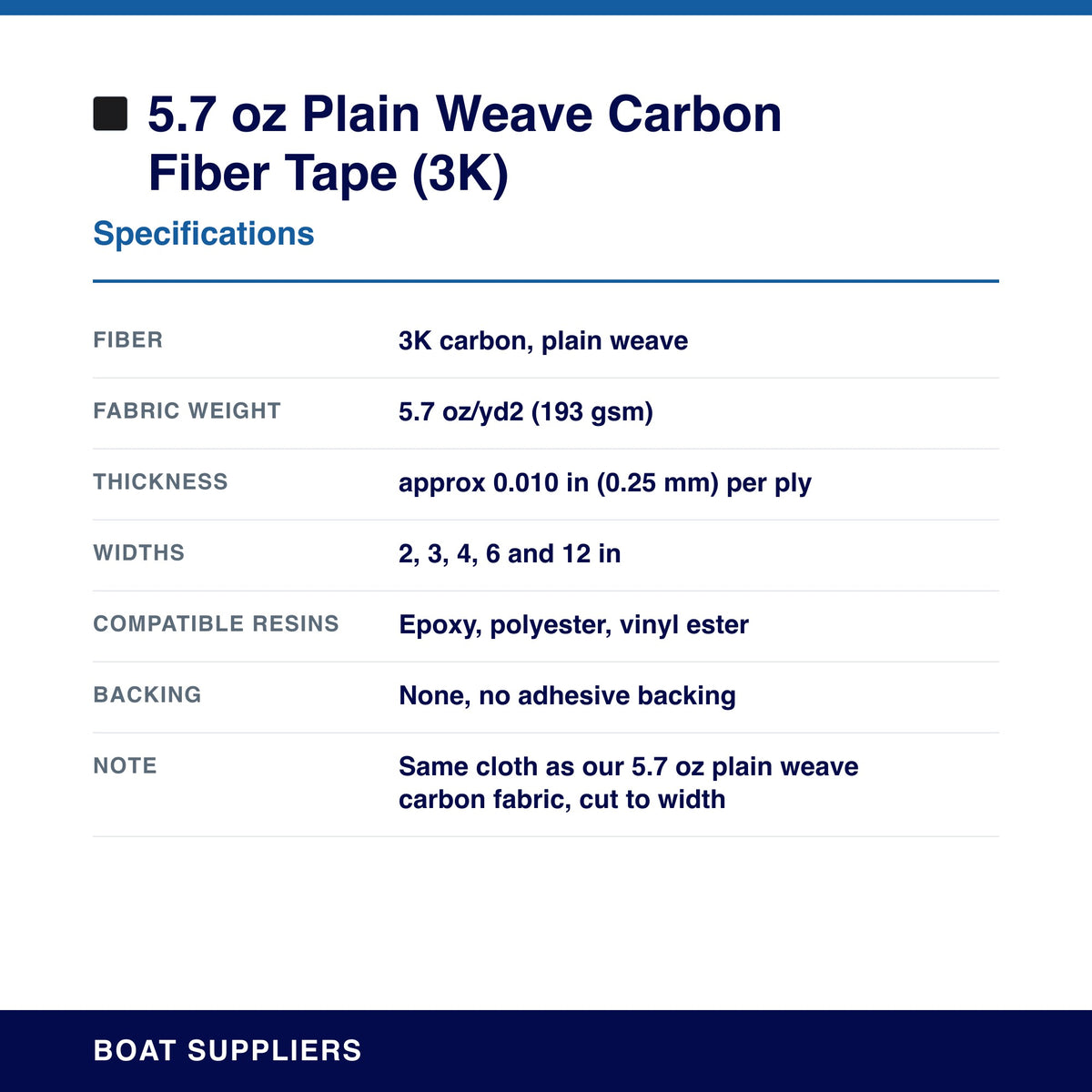

Specs

Fiber	3K carbon, plain weave
Weight	5.7 oz/yd² (193 gsm)
Thickness	approx 0.010 in (0.25 mm) per ply
Widths	2, 3, 4, 6 and 12 in
Lengths	1, 3 and 10 yd cuts, 50 yd full roll
Resin	epoxy, polyester, vinyl ester
Note	same cloth as our 5.7 oz plain weave carbon fabric, cut to width; no adhesive backing

The lightest of the three carbon tapes and the one with the fine 3K weave you want showing: tube and spar wraps, rail bands, paddle shafts and cosmetic repair bands under clear epoxy. At about 0.010 in per ply it drapes around tight radii the 12K tapes will not. When the band carries real load, step up to the 12.3 oz 12K plain weave tape; when the load runs only lengthwise, use the 11 oz unidirectional tape. All widths in carbon fiber tape.

Specifications

Fiber Type: High-strength carbon fiber (3K tow)
Weave Style: Plain weave
Fabric Weight: 5.7 oz/yd² (193 gsm)
Width: 50″ (1.27 m) standard
Thickness: ~0.010″ (0.25 mm)
Tensile Strength: ~500 KSI
Tensile Modulus: ~33 MSI
Density: 1.8 g/cm³
Finish: Sizing compatible with epoxy, vinyl ester, and polyester resins
(this product does not have an adhesive backing, it is referred to as a tape because of its size)
This is the same material as our 5.7oz Plain Weave Carbon Fiber Fabric pre-cut into smaller widths

Roll Length: Sold by the linear yard (continuous when possible)

Includes

5.7oz Plain Weave Carbon Fiber by the linear yard

Features

Lightweight yet exceptionally strong
High stiffness-to-weight ratio for structural applications
Plain weave pattern offers dimensional stability and easy handling
Excellent fatigue resistance for long-lasting performance
Corrosion-resistant and impervious to moisture
Compatible with a wide range of resins (epoxy, vinyl ester, polyester)
Ideal for cosmetic applications—distinct carbon fiber aesthetic
Easy to cut, drape, and laminate for complex shapes

View full details

Technical Specifications

Carbon FiberPlain weaveWorks with Epoxy, Vinyl Ester

MaterialCarbon Fiber

Weight5.7 oz/yd² (193 g/m²)

Weave / ConstructionPlain weave

Fiber Orientation0°/90° (woven)

Tow Size3K

Thickness0.010"

Available Widths2", 3", 4", 6", 12"

Full Roll Length50 yd

Resin-to-Reinforcement Ratio~50:50 by weight

Compatible ResinsEpoxy, Vinyl Ester

Best ForSeams, edges and repair bands in carbon

Compare Fabrics

Product	5.7 oz Plain Weave Carbon Fiber Tape (3K)You're viewingfrom $8.45	12.3oz Plain Weave Carbon Fiber Tape (12K)from $8.45	11oz Unidirectional Carbon Fiber Tape (12K)from $4.45	5.7oz 3K Plain Weave Carbon Fiber Fabric - 1st Qualityfrom $56.95
Material	Carbon Fiber	Carbon Fiber	Carbon Fiber	Carbon Fiber
Weight	5.7 oz/yd² (193 g/m²)	12.3 oz/yd² (417 g/m²)	11 oz/yd² (373 g/m²)	5.7 oz/yd² (193 g/m²)
Weave	Plain weave	Plain weave (bi-directional)	Unidirectional	Plain weave
Orientation	0°/90° (woven)	0°/90° (woven)	0° (unidirectional)	0°/90° (woven)
Tow Size	3K	12K	12K	3K
Thickness	0.010"	0.022"	0.021"	0.010"
Widths	2", 3", 4", 6", 12"	3", 4", 6", 10", 12"	1", 1.5", 2", 3", 4", 6", 8", 12"	50"
Full Roll	50 yd	100 yd	100 yd	100 yd
Thread Count	—	—	—	12.5 × 12.5
Resin Ratio	~50:50 by weight	~50:50 by weight	~50:50 by weight	~50:50 by weight (≈1:1)
Resins	Epoxy, Vinyl Ester	Epoxy, Vinyl Ester	Epoxy, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Seams, edges and repair bands in carbon	Fast build-up on seams and high-load bands	Stiffness along one line: spars, stringers, rails	Cosmetic and structural carbon skins (uniform look)
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

Close-up of 5.7oz 3K plain weave carbon fiber fabric showing the tight, even over-under checkerboard tow pattern.

What is carbon fiber?

Carbon fiber is a high-strength, lightweight material made from thin strands of carbon. It’s used in aerospace, marine, automotive, sporting goods, and composite construction for its superior strength-to-weight ratio.

Can carbon fiber be used with epoxy resin?

Yes, epoxy resin is the most commonly used resin with carbon fiber, providing a strong, durable bond for structural and cosmetic applications.

How strong is carbon fiber fabric?

Carbon fiber has a tensile strength around 500,000 psi and is roughly five times stronger than steel by weight, which is why it is used where stiffness and low weight both matter. Real-world laminate strength depends on resin, fiber orientation, and layup quality, so a strong carbon panel comes from good wet-out and proper ply orientation, not the fabric alone.
