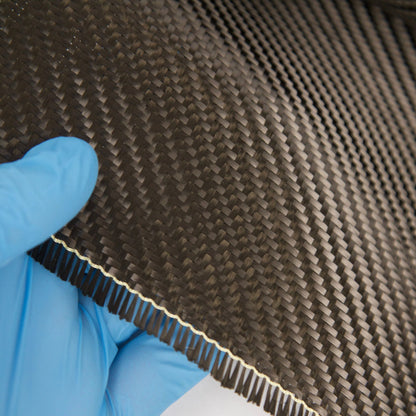

5.7oz 3K 2x2 Twill Weave Carbon Fiber Fabric - 1st Quality

SKU:FG-CFT5750-01

$56.95 USD

$56.95 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 50"

50" 60"

Length: 1 Yard

1 Yard 3 Yard Roll 5 Yard Roll 10 Yard Roll 25 Yard Roll Full Roll (100 Yards)

Quantity

Order several sizes at once width by length, one add to cart

Width	1 Yard	3 Yard Roll	5 Yard Roll	10 Yard Roll	25 Yard Roll	Full Roll (100 Yards)
50"	50" 1 Yard $56.95	50" 3 Yard Roll $168.95	50" 5 Yard Roll $276.95	50" 10 Yard Roll $435.95	50" 25 Yard Roll $948.95	50" Full Roll (100 Yards) $3,495.45
60"	60" 1 Yard $69.95	60" 3 Yard Roll $196.95	60" 5 Yard Roll $322.95	60" 10 Yard Roll $556.95	60" 25 Yard Roll $1,198.95	60" Full Roll (100 Yards) $3,978.95

Nothing selected yet

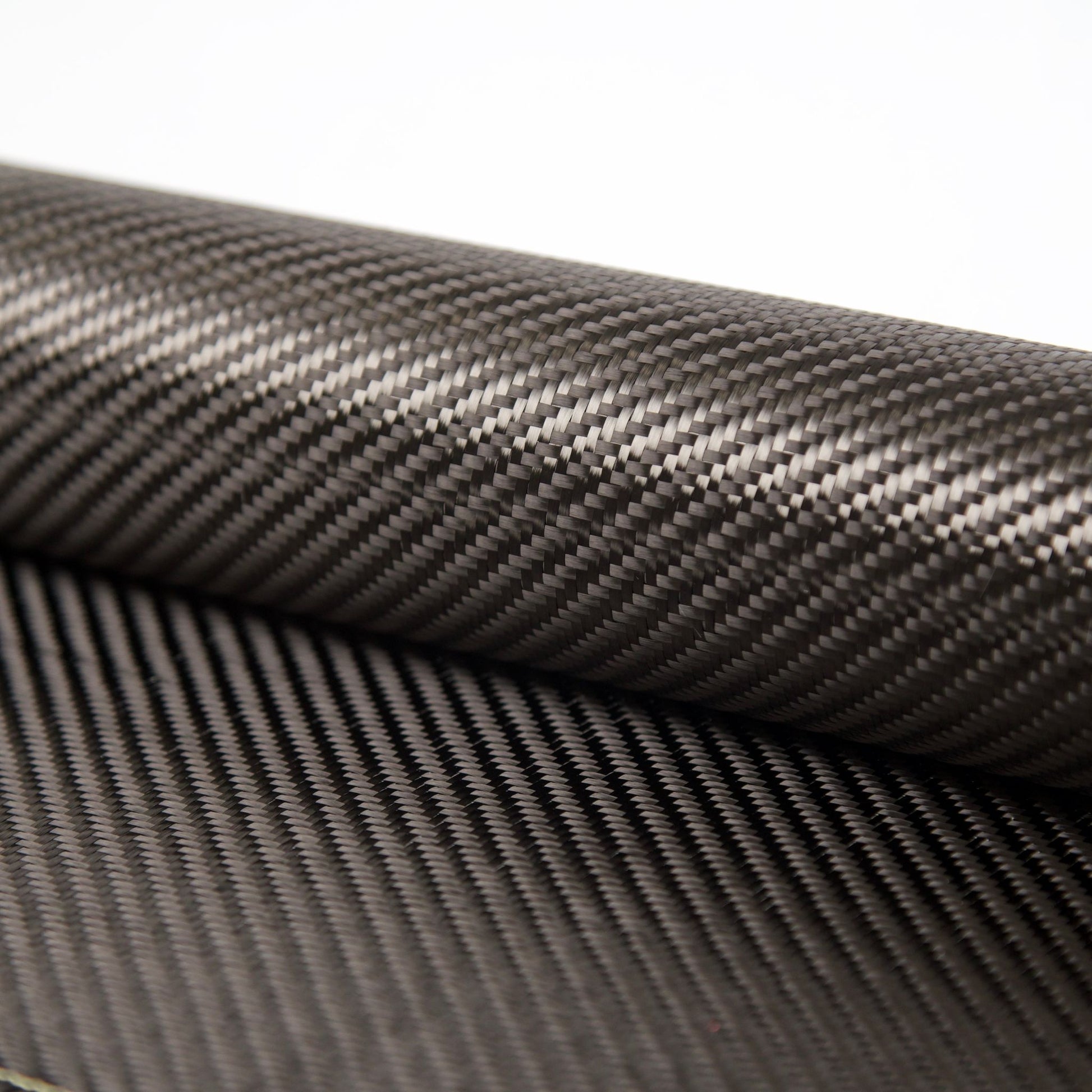

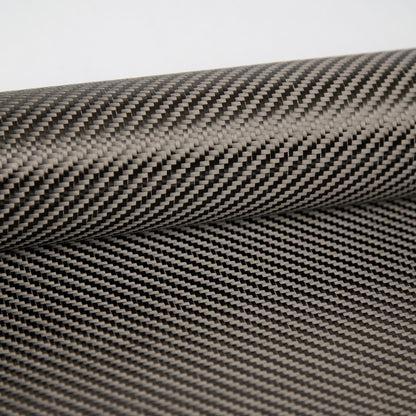

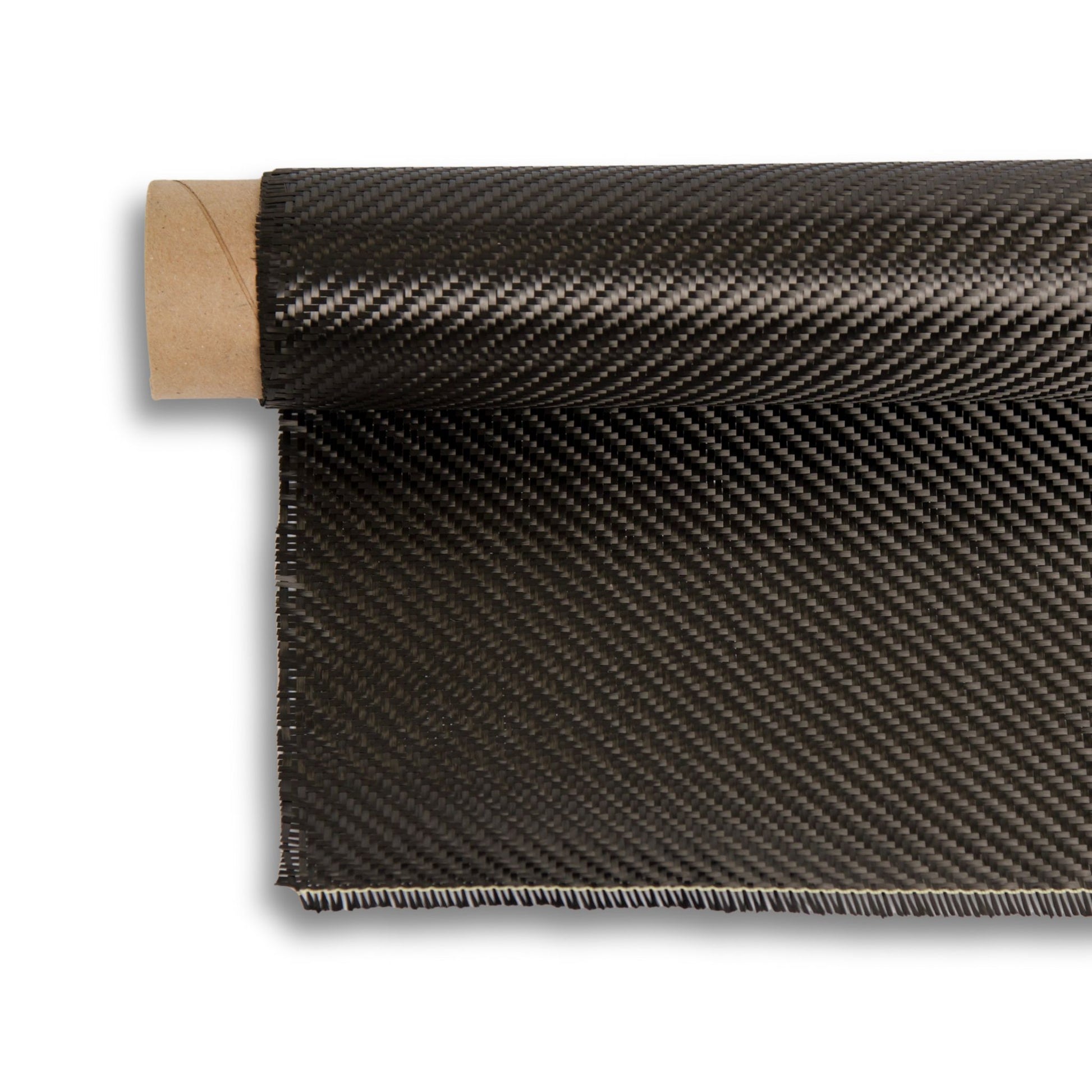

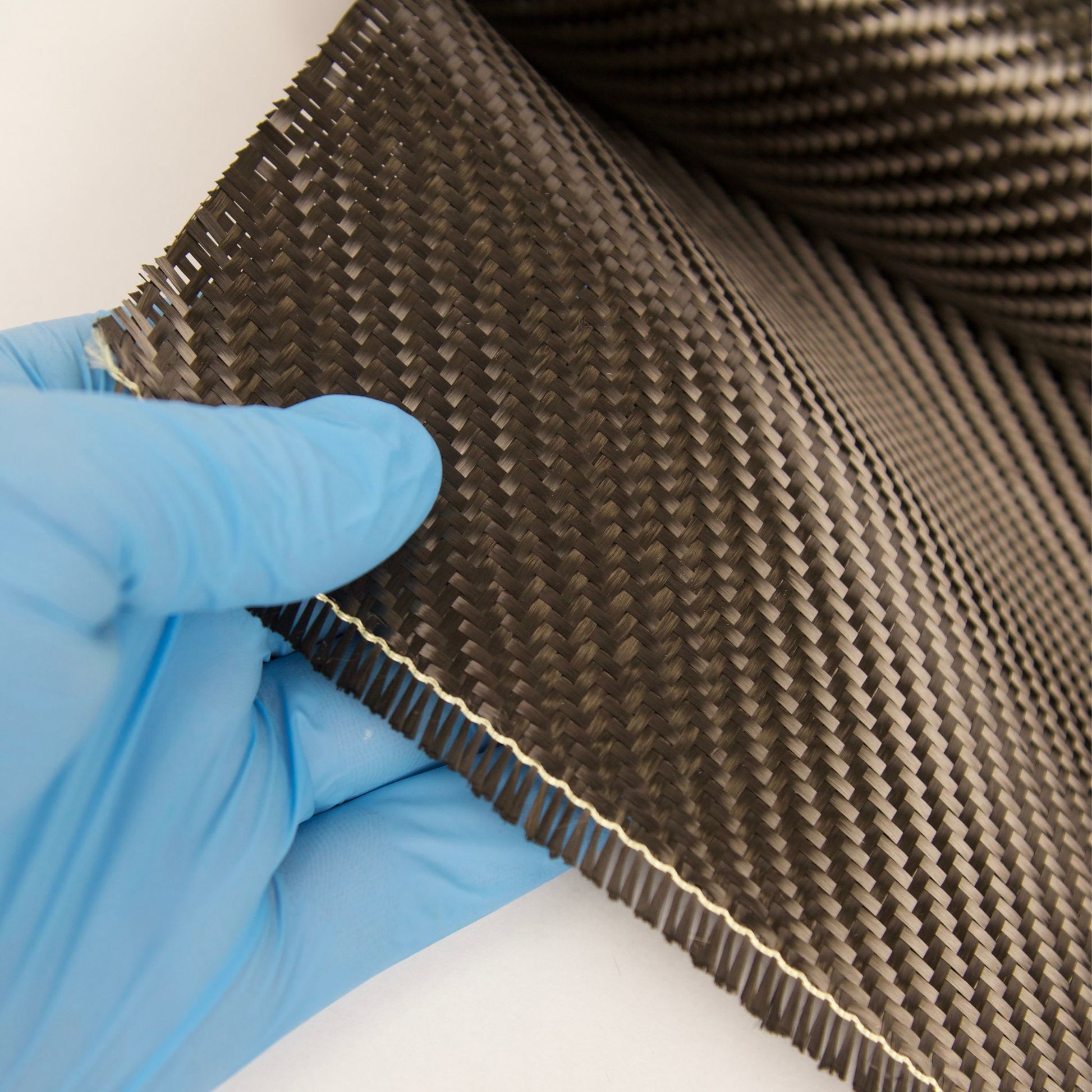

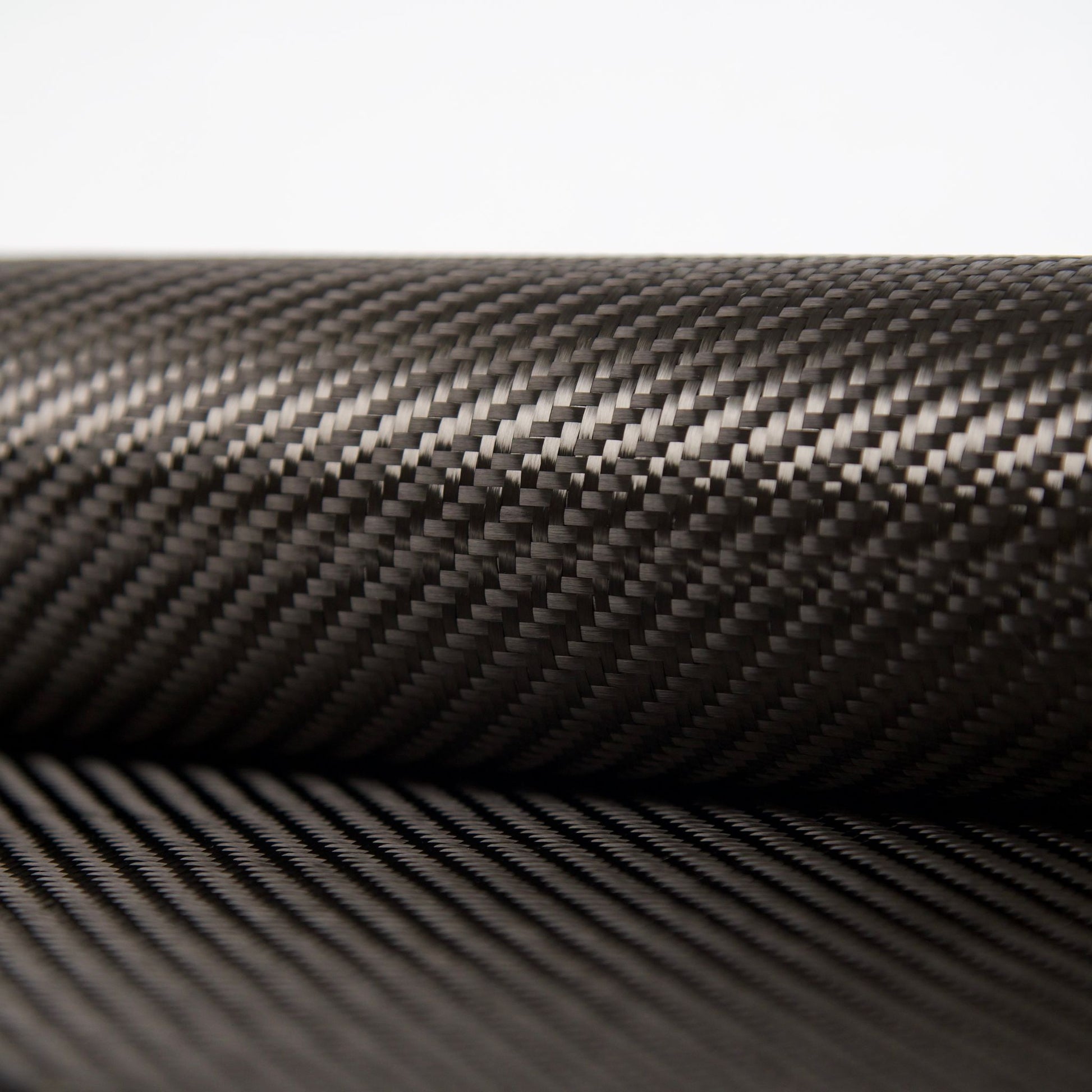

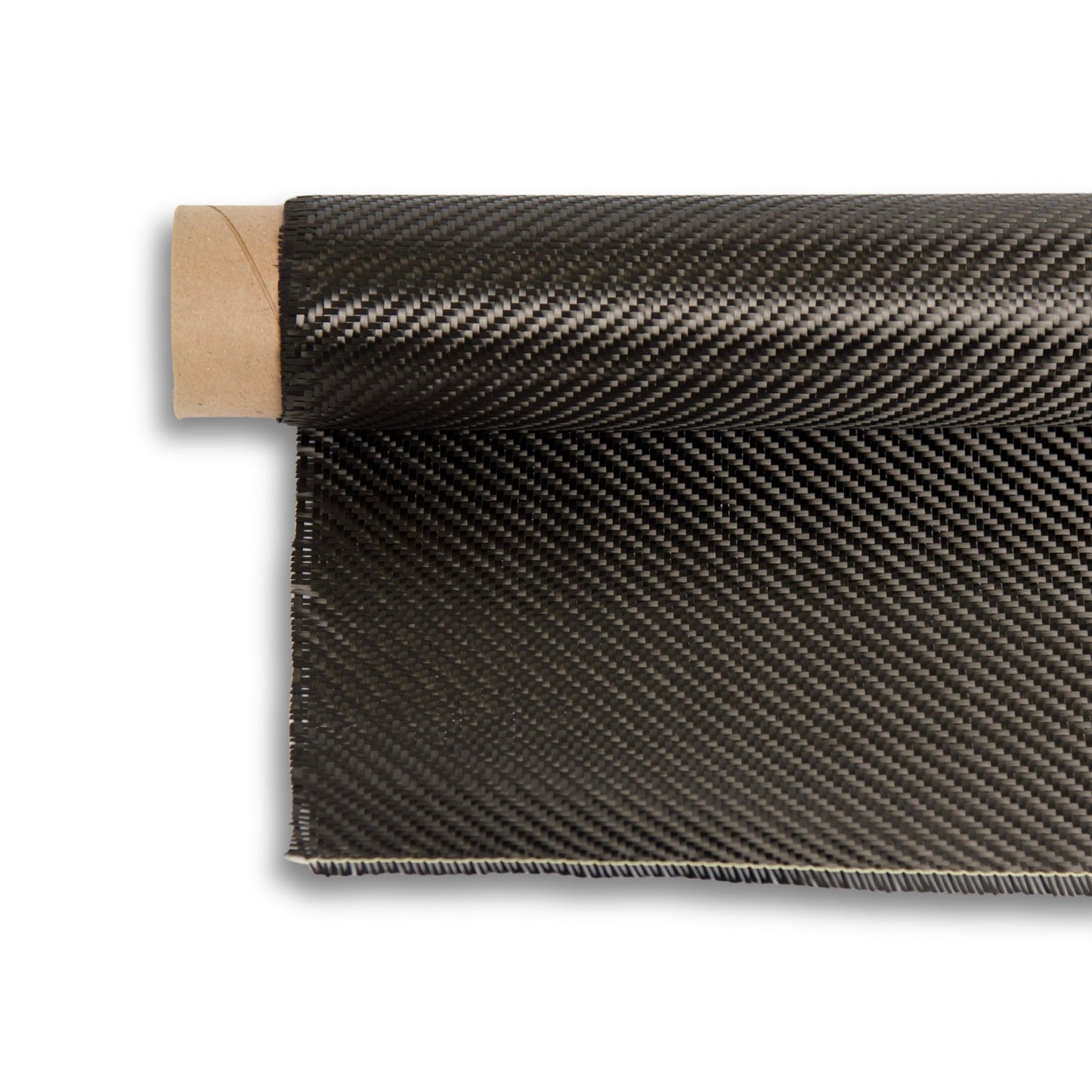

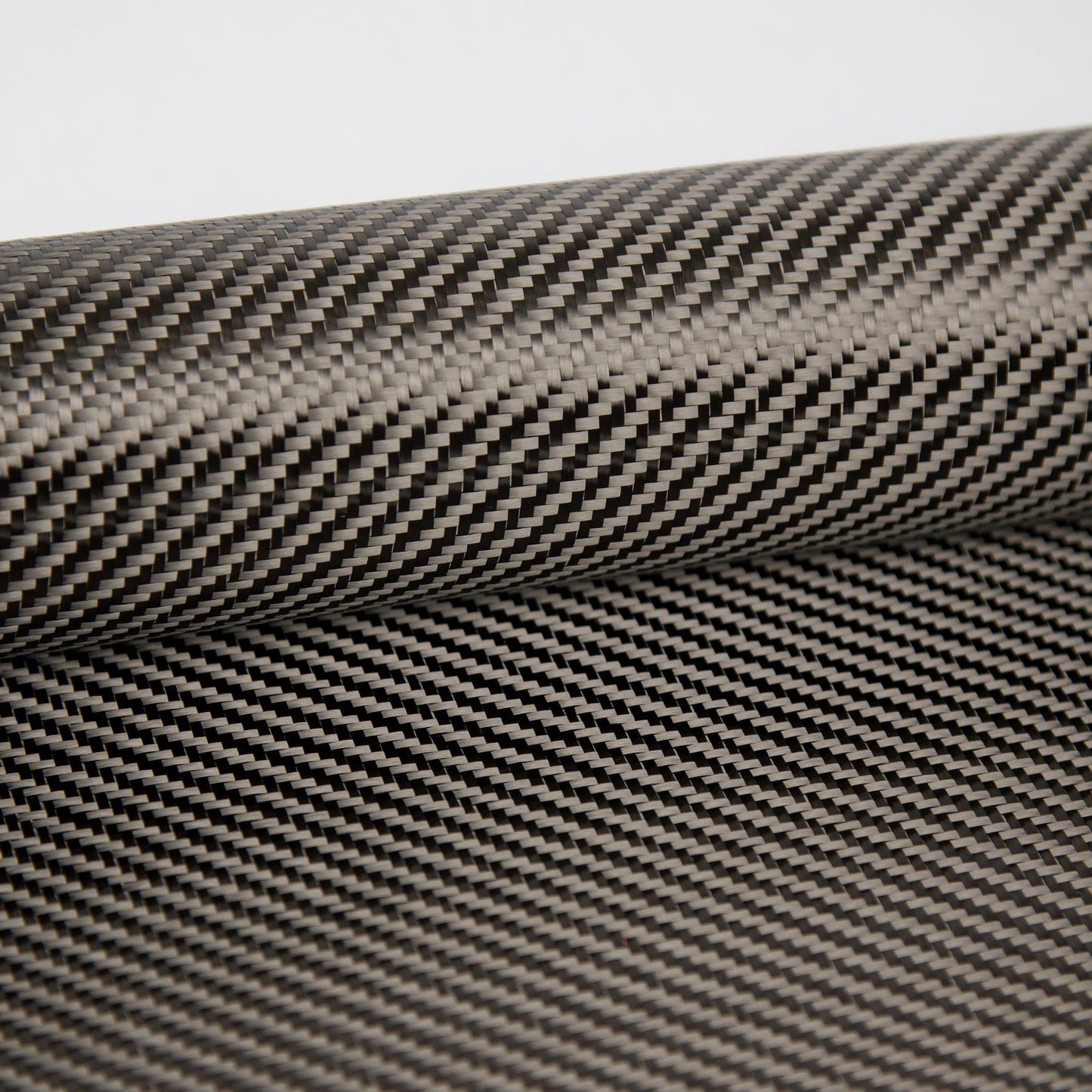

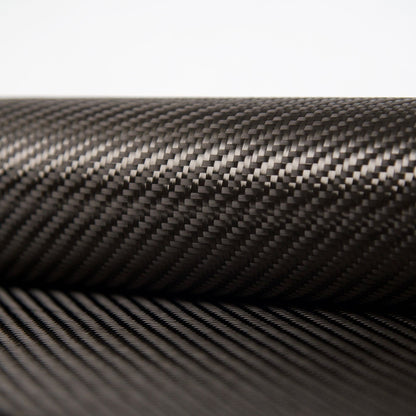

The twill everybody pictures when they hear carbon fiber: 5.7 oz/yd² of 3K tow in a 2x2 over-under-under pattern, first quality, in 50 in and 60 in widths. Two over two gives the diagonal weave its depth and lets the cloth follow a curve that a plain weave would bridge, which is why it shows up on hoods, cowlings, hardtops and trim panels.

5.7 oz/yd², 3K tow, 2x2 twill, 0/90 orientation
Two widths: 50 in and 60 in
Drapes over compound curves better than the plain weave in the same weight
First quality goods for show surfaces
Cut to 1, 3 and 10 yards, or take the full roll (100 yards)

Run it in epoxy, and stack it with the weave rotated 45 degrees on alternating plies if you want off-axis stiffness under a twill show layer.

Specifications

Fiber Type: High-strength carbon fiber (3K tow)
Weave Style: 2x2 Twill
Fabric Weight: 5.7 oz/yd² (193 gsm)
Width: 50″ (1.27 m)
Thickness: ~0.010″ (0.25 mm)
Tensile Strength: ~500 KSI
Tensile Modulus: ~33 MSI
Density: 1.8 g/cm³
Finish: Sizing compatible with epoxy, vinyl ester, and polyester resins

Roll Length: Sold by the linear yard (continuous when possible)

Includes

5.7oz 2x2 Twill Carbon Fiber - Sold by the linear yard

Features

Premium, first-quality weave for consistent strength and appearance
Twill pattern offers excellent drapability for complex shapes
Lightweight yet extremely strong and rigid
High stiffness-to-weight ratio for structural applications
Smooth surface and distinctive carbon fiber aesthetic
Corrosion and fatigue resistant
Compatible with a wide range of resin systems
Suitable for both structural and cosmetic applications

View full details

Technical Specifications

Carbon Fiber2x2 TwillWorks with Epoxy, Polyester, Vinyl Ester

MaterialCarbon Fiber

Weight5.7 oz/yd² (193 g/m²)

Weave / Construction2x2 Twill

Fiber Orientation0°/90° (woven)

Tow Size3K

Thickness0.010"

Available Widths50", 60"

Full Roll Length100 yd

Thread Count12 × 12

Resin-to-Reinforcement Ratio~50:50 by weight (≈1:1)

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForCosmetic carbon parts (classic 2x2 twill look)

Compare Fabrics

Product	5.7oz 3K 2x2 Twill Weave Carbon Fiber Fabric - 1st QualityYou're viewingfrom $56.95	5.7oz 3K Plain Weave Carbon Fiber Fabric - 1st Qualityfrom $56.95	6oz 3K 2x2 Twill Carbon Fiber Fabric – Stabilizedfrom $60.95	5.7oz 3K 2x2 Twill Carbon Fiber Fabric - Discount Short Rollfrom $39.50
Material	Carbon Fiber	Carbon Fiber	Carbon Fiber	Carbon Fiber
Weight	5.7 oz/yd² (193 g/m²)	5.7 oz/yd² (193 g/m²)	6 oz/yd² (203 g/m²)	5.7 oz/yd² (193 g/m²)
Weave	2x2 Twill	Plain weave	2x2 Twill (veil-stabilized)	2x2 Twill
Orientation	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)
Tow Size	3K	3K	3K	3K
Thickness	0.010"	0.010"	0.011"	0.010"
Widths	50", 60"	50"	50"	50"
Full Roll	100 yd	100 yd	100 yd	100 yd
Thread Count	12 × 12	12.5 × 12.5	13 × 13	—
Resin Ratio	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Cosmetic carbon parts (classic 2x2 twill look)	Cosmetic and structural carbon skins (uniform look)	Easy-handling cosmetic twill (veil-stabilized)	Cosmetic carbon parts (classic 2x2 twill look)
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

6oz x 50 inch wide 2x2 Twill Stabilized Carbon Fiber

What is carbon fiber?

Carbon fiber is a high-strength, lightweight material made from thin strands of carbon. It’s used in aerospace, marine, automotive, sporting goods, and composite construction for its superior strength-to-weight ratio.

Can carbon fiber be used with epoxy resin?

Yes, epoxy resin is the most commonly used resin with carbon fiber, providing a strong, durable bond for structural and cosmetic applications.

How strong is carbon fiber fabric?

Carbon fiber has a tensile strength around 500,000 psi and is roughly five times stronger than steel by weight, which is why it is used where stiffness and low weight both matter. Real-world laminate strength depends on resin, fiber orientation, and layup quality, so a strong carbon panel comes from good wet-out and proper ply orientation, not the fabric alone.
