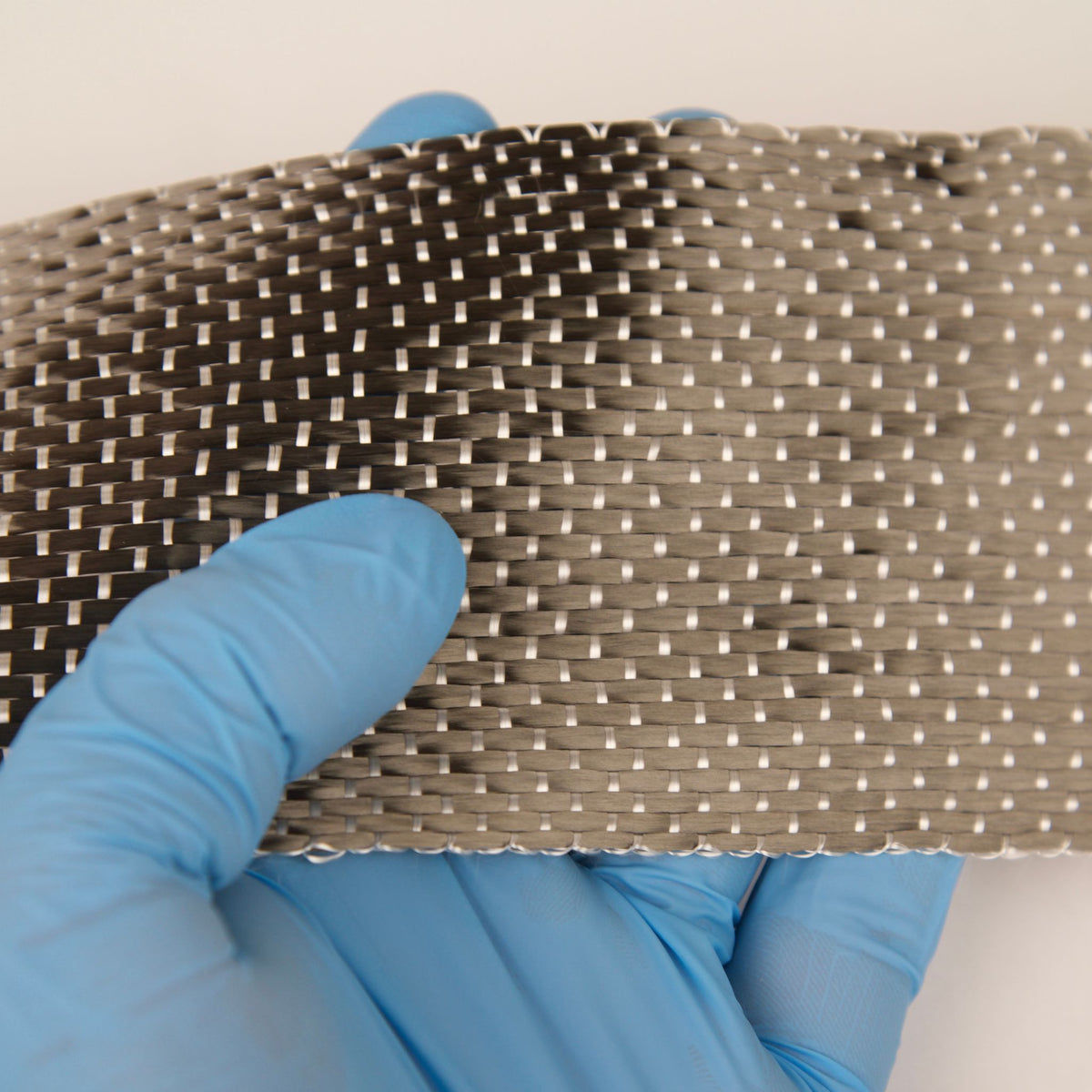

11oz Unidirectional Carbon Fiber Tape (12K)

SKU:FG-CFU001-01

$4.45 USD

$4.45 yd

Sale Sold out

Shipping calculated at checkout.

1043 in stock

Width: 1"

1" 1.5" 2" 3" 4" 6" 8" 12"

Length: 1 Yard

1 Yard 3 Yards 5 Yards 10 Yards 25 Yards Full Roll (100 Yards)

Quantity

Order several sizes at once width by length, one add to cart

Width	1 Yard	3 Yards	5 Yards	10 Yards	25 Yards	Full Roll (100 Yards)
1"	1" 1 Yard $4.45	1" 3 Yards $12.45	1" 5 Yards $19.45	1" 10 Yards $37.45	1" 25 Yards $84.15	1" Full Roll (100 Yards) $299.96
1.5"	1.5" 1 Yard $4.95	1.5" 3 Yards $14.45	1.5" 5 Yards $22.95	1.5" 10 Yards $43.45	1.5" 25 Yards $96.45	1.5" Full Roll (100 Yards) $371.45
2"	2" 1 Yard $5.95	2" 3 Yards $16.95	2" 5 Yards $26.95	2" 10 Yards $50.95	2" 25 Yards $111.35	2" Full Roll (100 Yards) $419.95
3"	3" 1 Yard $6.95	3" 3 Yards $19.45	3" 5 Yards $30.95	3" 10 Yards $59.95	3" 25 Yards $130.35	3" Full Roll (100 Yards) $489.98
4"	4" 1 Yard $7.95	4" 3 Yards $21.95	4" 5 Yards $34.95	4" 10 Yards $66.95	4" 25 Yards $146.45	4" Full Roll (100 Yards) $549.95
6"	6" 1 Yard $10.95	6" 3 Yards $30.45	6" 5 Yards $48.95	6" 10 Yards $93.95	6" 25 Yards $209	6" Full Roll (100 Yards) $735.45
8"	8" 1 Yard $13.95	8" 3 Yards $39.45	8" 5 Yards $63.45	8" 10 Yards $120.95	8" 25 Yards $265.45	8" Full Roll (100 Yards) $998.95
12"	12" 1 Yard $18.45	12" 3 Yards $52.45	12" 5 Yards $84.45	12" 10 Yards $161.95	12" 25 Yards $364.35	12" Full Roll (100 Yards) $1,299.95

Nothing selected yet

Earn 4 Boat Points Learn More

Our 11 oz Unidirectional Carbon Fiber Tape is designed for maximum strength in a single direction. With fibers running parallel along the tape length, this material is ideal for structural reinforcement, stiffeners, spars, and load-bearing components where directional strength is critical.

Specs

Fiber	12K carbon, unidirectional (binder threads only, no crosswise fiber)
Weight	11 oz/yd² (373 gsm)
Thickness	approx 0.017 in (0.43 mm) per ply
Widths	1, 1.5, 2, 3, 4, 6, 8 and 12 in
Lengths	1, 3 and 10 yd cuts, 100 yd full roll
Resin	epoxy, polyester, vinyl ester

Pick the unidirectional tape when the load runs one way along the tape: spar and stringer caps, mast and boom stiffening, rudder and tiller reinforcement. Every fiber runs lengthwise, so one ply is stiffer along the run than either woven tape and has no strength across it. For a woven face or hoop strength on a tube, use the 5.7 oz 3K plain weave tape; for a heavy balanced band in both directions, the 12.3 oz 12K plain weave tape. Compare widths across the line in carbon fiber tape.

Specifications

Fiber Type: 12K high-strength carbon fiber
Weave Style: Unidirectional (binder threads only for stability)
Fabric Weight: 11 oz/yd² (373 gsm)
Width Options: 1″, 1.5″, 2″, 3″, 4″, 6″, 8″, 12″
Thickness: ~0.017″ (0.43 mm)
Resin Compatibility: Epoxy, polyester, vinyl ester
Finish: Sizing for resin adhesion

Roll Lengths: 1 yd, 3 yd, 10 yd, 100 yd

Includes

11oz Unidirectional Carbon Fiber Tape (12K) by the linear yard

Features

Unidirectional fiber alignment for maximum strength along tape length
Lightweight and highly efficient for targeted reinforcement
Compatible with epoxy, polyester, and vinyl ester resins
Excellent for structural parts, repairs, and strengthening beams or spars
Multiple widths for precise placement without excess material

View full details

Technical Specifications

Carbon FiberUnidirectionalWorks with Epoxy, Vinyl Ester

MaterialCarbon Fiber

Weight11 oz/yd²

Weave / ConstructionUnidirectional

Fiber Orientation0° (unidirectional)

Tow Size12K

Thickness0.021"

Available Widths1", 1.5", 2", 3", 4", 6", 8", 12"

Full Roll Length100 yd

Resin-to-Reinforcement Ratio~50:50 by weight

Compatible ResinsEpoxy, Vinyl Ester

Best ForStiffness along one line: spars, stringers, rails

Compare Fabrics

Product	11oz Unidirectional Carbon Fiber Tape (12K)You're viewingfrom $4.45	5.7 oz Plain Weave Carbon Fiber Tape (3K)from $8.45	12.3oz Plain Weave Carbon Fiber Tape (12K)from $8.45
Material	Carbon Fiber	Carbon Fiber	Carbon Fiber
Weight	11 oz/yd²	5.7 oz/yd²	12.3 oz/yd²
Weave	Unidirectional	Plain weave	Plain weave (bi-directional)
Orientation	0° (unidirectional)	0°/90° (woven)	0°/90° (woven)
Tow Size	12K	3K	12K
Thickness	0.021"	0.010"	0.022"
Widths	1", 1.5", 2", 3", 4", 6", 8", 12"	2", 3", 4", 6", 12"	3", 4", 6", 10", 12"
Full Roll	100 yd	50 yd	100 yd
Resin Ratio	~50:50 by weight	~50:50 by weight	~50:50 by weight
Resins	Epoxy, Vinyl Ester	Epoxy, Vinyl Ester	Epoxy, Vinyl Ester
Best For	Stiffness along one line: spars, stringers, rails	Seams, edges and repair bands in carbon	Fast build-up on seams and high-load bands
	Selected	View	View

What To Expect When You Order Fabric Rolls

11oz Unidirectional Carbon Fiber Tape (12K)

What is carbon fiber?

Carbon fiber is a high-strength, lightweight material made from thin strands of carbon. It’s used in aerospace, marine, automotive, sporting goods, and composite construction for its superior strength-to-weight ratio.

Can carbon fiber be used with epoxy resin?

Yes, epoxy resin is the most commonly used resin with carbon fiber, providing a strong, durable bond for structural and cosmetic applications.

How strong is carbon fiber fabric?

Carbon fiber has a tensile strength around 500,000 psi and is roughly five times stronger than steel by weight, which is why it is used where stiffness and low weight both matter. Real-world laminate strength depends on resin, fiber orientation, and layup quality, so a strong carbon panel comes from good wet-out and proper ply orientation, not the fabric alone.
