Composite Layup Schedule Guide: How to Plan and Execute Any Fiberglass Build

If you've ever stared at a blank mold wondering exactly how many layers of glass to lay down, in what order, and with what resin ratio, you already understand why a proper composite layup schedule is the most important document in any fiberglass build. Whether you're constructing a new hull panel, repairing a deck, or fabricating a custom part, your layup schedule is the blueprint that determines how strong, how heavy, and how durable the finished laminate will be. Get it right and your part performs flawlessly for decades. Get it wrong and you're dealing with delamination, osmotic blisters, or a laminate that's either dangerously thin or unnecessarily heavy. This guide walks you through how to design a fiberglass layup schedule from the ground up: practically, systematically, and with the real-world details that most guides skip over.

What Is a Composite Layup Schedule?

A composite layup schedule (sometimes called a laminate schedule) is a documented plan that specifies every layer of reinforcement in a composite part, in sequence from the mold surface outward. Each line of the schedule defines the material type, fabric weight, fiber orientation, resin system, and any core materials used between skins. Think of it as a recipe: the ingredients matter, but so does the order you add them.

A complete layup schedule typically records:

• Layer number - the sequence in which each ply is applied

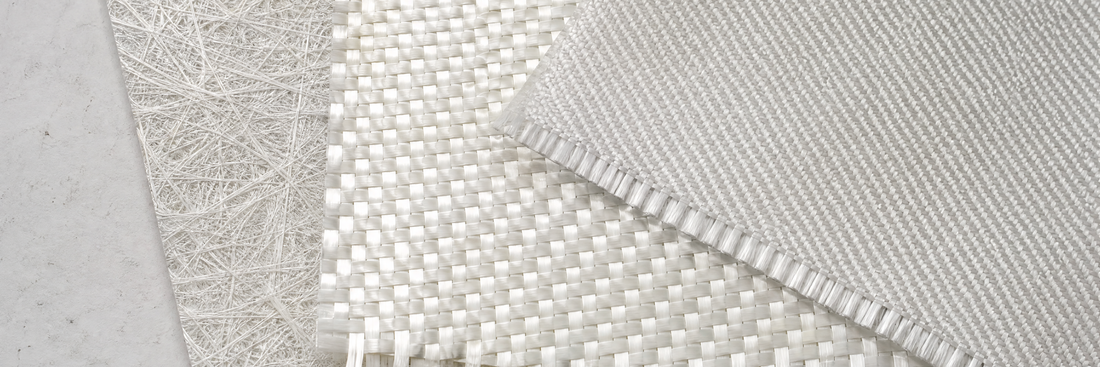

• Reinforcement type - chopped strand mat (CSM), woven roving, biaxial or triaxial cloth, unidirectional tape, etc.
• Fabric weight - expressed in oz/yd² or g/m² (chopped strand mat is the exception: it is rated in oz/ft²)
• Fiber orientation - 0°, 90°, ±45°, or random
• Resin system - polyester, vinylester, or epoxy
• Core material and thickness - if applicable (balsa, foam, honeycomb)
• Estimated cured thickness - per layer and cumulative
• Target fiber-to-resin ratio - by weight

That last point is where a lot of amateur builds go wrong. More resin does not mean more strength. A resin-rich laminate is typically weaker, heavier, and more prone to cracking than a properly wetted-out schedule. For woven cloth and roving, a reasonable hand-layup target is about 50% fiber and 50% resin by weight (roughly 1:1). Chopped strand mat runs resin-richer, about 2.3:1 resin to glass (roughly 30% fiber), and 1708 about 1.5:1. Under vacuum infusion, 60% fiber and 40% resin by weight is achievable and delivers meaningfully better structural properties with significantly less finished weight.

Step 1: Define Your Structural Requirements Before You Touch a Mold

Laminate schedule design starts not with materials, but with loads. Before you specify a single layer of glass, answer these questions:

• What forces will this part experience? (Hydrostatic pressure, point loads, impact, flex?)
• What is the acceptable weight budget?
• Will this be a single-skin or sandwich (cored) construction?
• What service environment will the part live in? (Submerged, UV-exposed, fuel contact?)

For marine applications, the American Bureau of Shipping (ABS), ISO 12215, and Lloyd's Register all publish scantling rules that give minimum laminate thicknesses based on hull length, beam, and design category. These are excellent starting points for composite thickness planning even if your build doesn't require formal certification.

As a rough rule of thumb for recreational powerboat hulls: budget approximately 1 lb/ft² of laminate for every 2 to 3 feet of beam, with hull sides typically 20 to 30% lighter than the bottom. Decks and cabin tops are generally lighter still, often half the bottom weight, unless they carry concentrated loads like cleats, windlasses, or mast partners.

Step 2: Choose Your Reinforcement Stack

The sequence of fabrics in your fiberglass layup schedule has a massive impact on both structural performance and surface quality. Here's how a typical marine hull layup is built from the mold surface outward.

Layer 1: Mold Release and Gelcoat

Before any reinforcement goes down, the mold itself must be properly prepared. Apply Partall #2 Paste Wax to the mold surface in thin, even coats, buffing each coat to a clear finish before applying the next. A minimum of three coats on a new mold and one to two coats on a seasoned mold is standard practice. The paste wax fills micro-pores in the mold surface and prevents resin from bonding, giving you a clean, damage-free release without pulling gelcoat or distorting the mold geometry. Skipping or rushing this step is the single most expensive mistake in production composite work.

Once the mold is released, spray or brush your marine gelcoat to a uniform thickness of 18 to 22 mils wet. Gelcoat is your finished exterior surface, your first line of defense against UV and water intrusion, and the layer that gives the part its color and gloss. Apply it before any glass goes in and let it reach a firm, tack-free gel before laying down the skin coat behind it.

Layer 2: Surfacing Veil or Skin Coat CSM

A lightweight 1.5 oz chopped strand mat immediately behind the gelcoat creates a resin-rich skin that prevents print-through from heavier woven fabrics behind it. This layer should be wet out thoroughly with no dry spots and should look fully translucent when properly consolidated. Let it reach a firm gel before applying heavier structural plies to avoid disturbing the surface.

Layers 3 Through N: Structural Plies

This is where your fiberglass layup schedule does its real structural work. Typical marine builds alternate between 1.5 oz CSM (which bonds well and builds thickness isotropically) and woven roving or multiaxial fabrics (which deliver directional strength). A common sequence looks like this:

• 1.5 oz CSM
• 24 oz woven roving (0°/90°)
• 1.5 oz CSM
• 24 oz woven roving (0°/90°)
• [Repeat to target thickness]

For higher-performance builds, replace or supplement woven roving with 1708 biaxial stitched fabric. The designation breaks down as 17 oz of ±45° biaxial glass plus a 0.75 oz/ft² CSM mat (about 6.75 oz/yd²) stitched to the back, giving a combined fabric weight of about 24 oz/yd². That construction delivers directional shear and torsional stiffness along with the bonding layer already attached. It is one of the most widely specified fabrics in production marine construction and handles hull sides, transoms, and structural bulkhead tabbing equally well.

On vertical surfaces or overhead layups, neat resin can sag or drain before it kicks. Adding a small amount of fumed silica (Cabosil or equivalent) to your mixed resin raises its thixotropic index so the resin clings to the fabric and stays put through the cure cycle. Start with roughly 1 to 2 percent of the resin weight, which is about a quarter to half the resin volume in loose powder, and adjust from there. Stay well short of a ketchup mix (about 3 percent), or the resin stops wetting out the cloth.

Core Layer (Sandwich Construction)

Sandwich panels dramatically increase stiffness-to-weight ratio by separating two thin, stiff skins with a lightweight core. The core itself carries almost no tensile or compressive load. Its job is simply to keep the skins separated. Common core thicknesses for marine decks run from 12mm to 25mm. Closed-cell structural foam and end-grain balsa are the most common choices: closed-cell foam wins on moisture resistance while balsa offers better compressive strength under hardware load points. Regardless of core choice, the bond between core and skin is critical and must be achieved without voids or dry areas. Check with our team for current core material availability and specifications that fit your build.

Step 3: Calculate Your Target Laminate Thickness

Composite thickness planning means knowing how thick each ply contributes to your final stack. The table below gives approximate cured thicknesses per layer for hand layup with polyester resin at typical hand-layup resin contents (about 1:1 resin to glass by weight for roving, 1.5:1 for 1708 and 2.3:1 for mat).

Printable version: download the Fiberglass Laminate Thickness Chart (PDF). More free shop charts: composites reference charts.

To plan your own stack ply by ply, print the layup schedule worksheet (PDF) and log material, resin, batches, temperature and thickness as you go.

A common mid-sized powerboat bottom laminate targeting roughly 0.340" might look like this: start with a 0.75 oz skin coat CSM (~0.020"), then apply four repetitions of 1.5 oz CSM (~0.040") plus 24 oz woven roving (~0.040"), where each repeat contributes 0.080". The full calculation is: 0.020" + (4 x 0.080") = 0.020" + 0.320" = 0.340". That is a solid, impact-resistant bottom laminate. Working through the math on paper before mixing a drop of resin saves material, time, and re-work. Use the resin calculator to cross-check your resin quantity estimates against your planned area and layer count before you order.

Step 4: Select Your Resin System

For the vast majority of production marine work, polyester resin is the workhorse: cost-effective, easy to use, and well-understood. Marine-Grade Polyester Layup Resin with Hardener handles everything from hull lamination to structural repairs. It offers good strength, excellent wet-out characteristics, and is forgiving for fabricators at all experience levels. If you need to adjust viscosity for improved fabric wet-out or easier brushing and rolling, small additions of Styrene thinner reduce resin viscosity without compromising cure chemistry. Add styrene sparingly, no more than 5 to 10% by weight, and always work in a well-ventilated space with appropriate respiratory protection. Important: styrene is a regulated hazardous air pollutant and a VOC-restricted substance in many jurisdictions. Consult your local air quality and workplace safety regulations before use and follow all applicable handling requirements.

For MEKP catalyst, the standard working range for polyester and vinylester resins is 1.0 to 2.0% by volume of resin. At a shop temperature of around 70 degrees F, about 1.55% is the typical starting point (1.25% at 77 degrees F) and gives a workable pot life without risking an uncontrolled exotherm. Drop toward 1.0% in warm weather or large batch sizes; nudge toward 2.0% in cooler conditions or for small touch-up batches. A 5% error in catalyst ratio sounds small but can leave you with an under-cured laminate that never reaches full hardness, or one that exotherms so aggressively it distorts the mold. Measure your catalyst by volume with a graduated syringe or dispenser rather than eyeballing it whenever precision matters.

Vinylester resin is worth the premium on hull bottoms and anywhere else that sees prolonged water immersion. Its superior hydrolytic resistance significantly reduces osmotic blistering risk over time. Epoxy is the top performer for strength and moisture resistance but demands careful mixing discipline, is sensitive to humidity during application, and will not bond well to CSM that uses a styrene-soluble binder.

Step 5: Plan Your Consumables and Process

Once you know your reinforcement stack and resin system, you need to have your mixing and handling supplies staged before the first batch is mixed. Scrambling for a mixing cup after your resin is in the pot is how you lose control of pot life. Have graduated mixing cups, stir sticks, and chemical-resistant nitrile gloves on hand so you can measure accurately and work safely through every batch, from the skin coat to the final structural ply. Accurate measurement of resin and catalyst is not optional: it directly determines whether your laminate reaches full mechanical properties or not. Use MEKP catalyst measured to ratio by volume rather than eyeballed from a squeeze bottle.

If your schedule includes vacuum bagging, plan your infusion lines and bag layout as carefully as the laminate itself. Standard vacuum tubing works well for connecting pumps and gauges to bag fittings. For flow channels within the bag itself, spiral vacuum tubing is the right choice: its spiral-wound construction resists collapse under full vacuum pressure, which is a common cause of dry spots and resin-starved areas in large infusions. Position spiral tubing at the inlet and around the perimeter of the part where you need reliable resin flow and vacuum distribution.

Vacuum Bagging vs. Hand Layup: When to Upgrade Your Process

Hand layup is appropriate for most repair work and small production parts. For structural panels, hull skins, and any part where weight savings are critical, vacuum bagging the wet layup or infusing the dry stack under vacuum will consistently deliver a higher fiber volume fraction, lower void content, and better mechanical properties than even the most skilled hand layup. The investment in vacuum tubing, bagging film, and breather fabric pays back in every part you make afterward.

Step 6: Document It, Then Build on It

Once you've laid up your first part, record what you actually used versus what you planned. Note the ambient temperature (which affects pot life and cure time), the actual resin consumed per layer, and any areas that were difficult to consolidate or showed dry spots. A living layup schedule that gets refined over successive builds is exponentially more valuable than a theoretical one that never gets tested against reality.

Keep copies with your build records. If you ever need to repair the part years later, knowing the original laminate construction makes matching the repair schedule and restoring original structural integrity straightforward rather than guesswork.

A well-designed composite layup schedule is what separates a confident builder from someone who is guessing. It does not need to be complicated: even a simple spreadsheet with layer number, material, weight, orientation, and cumulative thickness gives you command over the build and reproducible results. Start with your structural requirements, work backward to your material stack, verify your thickness math using the resin calculator, set your MEKP ratio for the day's temperature, and have your consumables staged before the first batch of resin gets mixed. Do that consistently and you will build parts that are lighter, stronger, and more predictable than anything designed on the fly.

What You Need For This Job

• Marine-Grade Polyester Layup Resin with Hardener: primary resin system for hull lamination and structural layups
• MEKP Catalyst: catalyst for polyester and vinylester resins; measure to ratio (1.0 to 2.0% by volume) for every batch
• Marine Gelcoat: first layer into the mold; provides the finished exterior surface, UV protection, and color
• 1.5 oz Chopped Strand Mat (CSM): skin coat and interlaminar bonding layer throughout the structural stack
• 1708 Biaxial Stitched Fabric (about 24 oz/yd² total): primary structural reinforcement for hull sides, transoms, and bulkhead tabbing
• Partall #2 Paste Wax: mold release wax applied before gelcoat to ensure clean part release
• Styrene Thinner: viscosity reducer for polyester resin; regulated in many jurisdictions, consult local VOC rules before use
• Vacuum Tubing 1/2" OD x 3/8" ID: connects vacuum pump and gauges to bag fittings for bagged layups
• Spiral Vacuum Tubing 1/2" OD x 3/8" ID: collapse-resistant flow channel tubing placed within the vacuum bag
