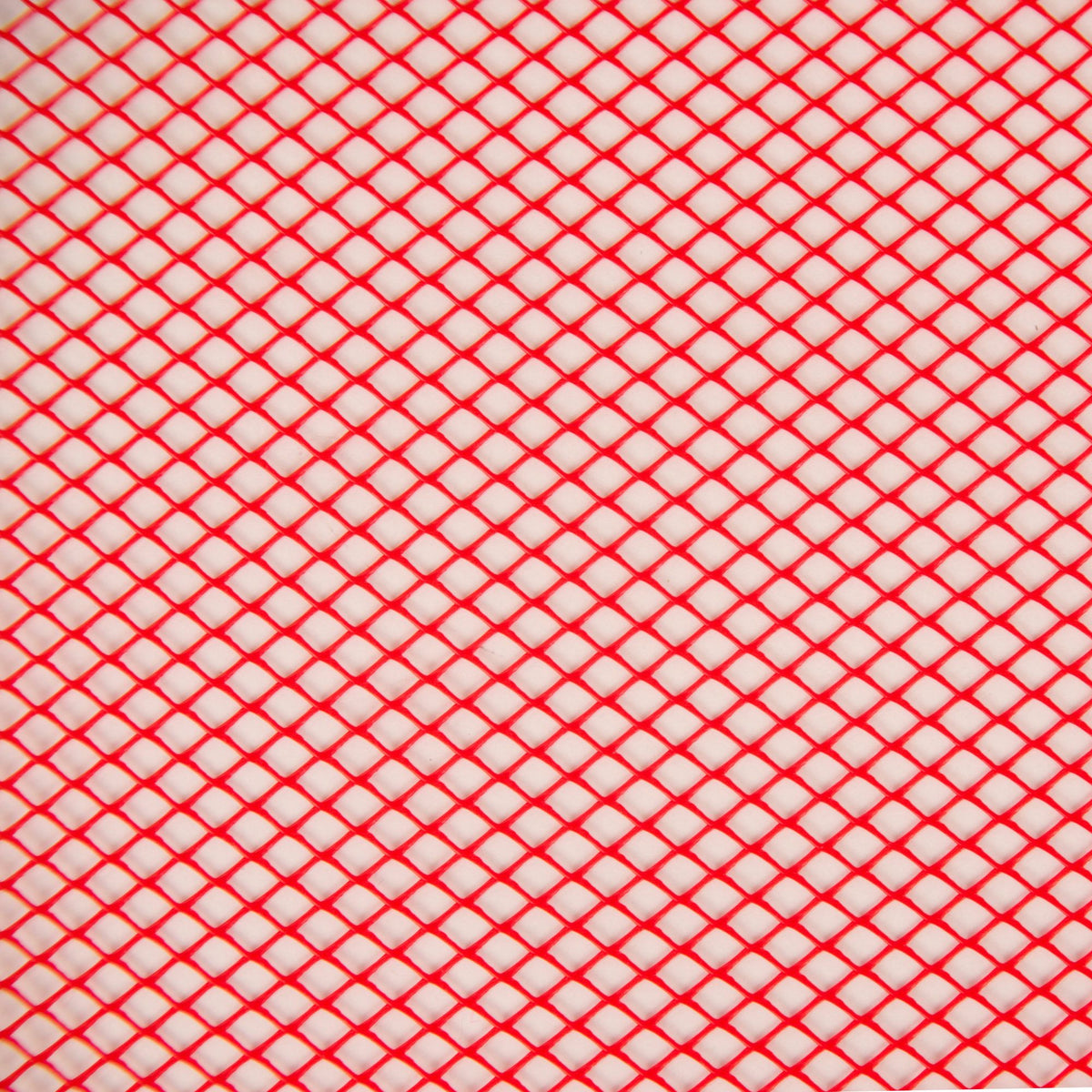

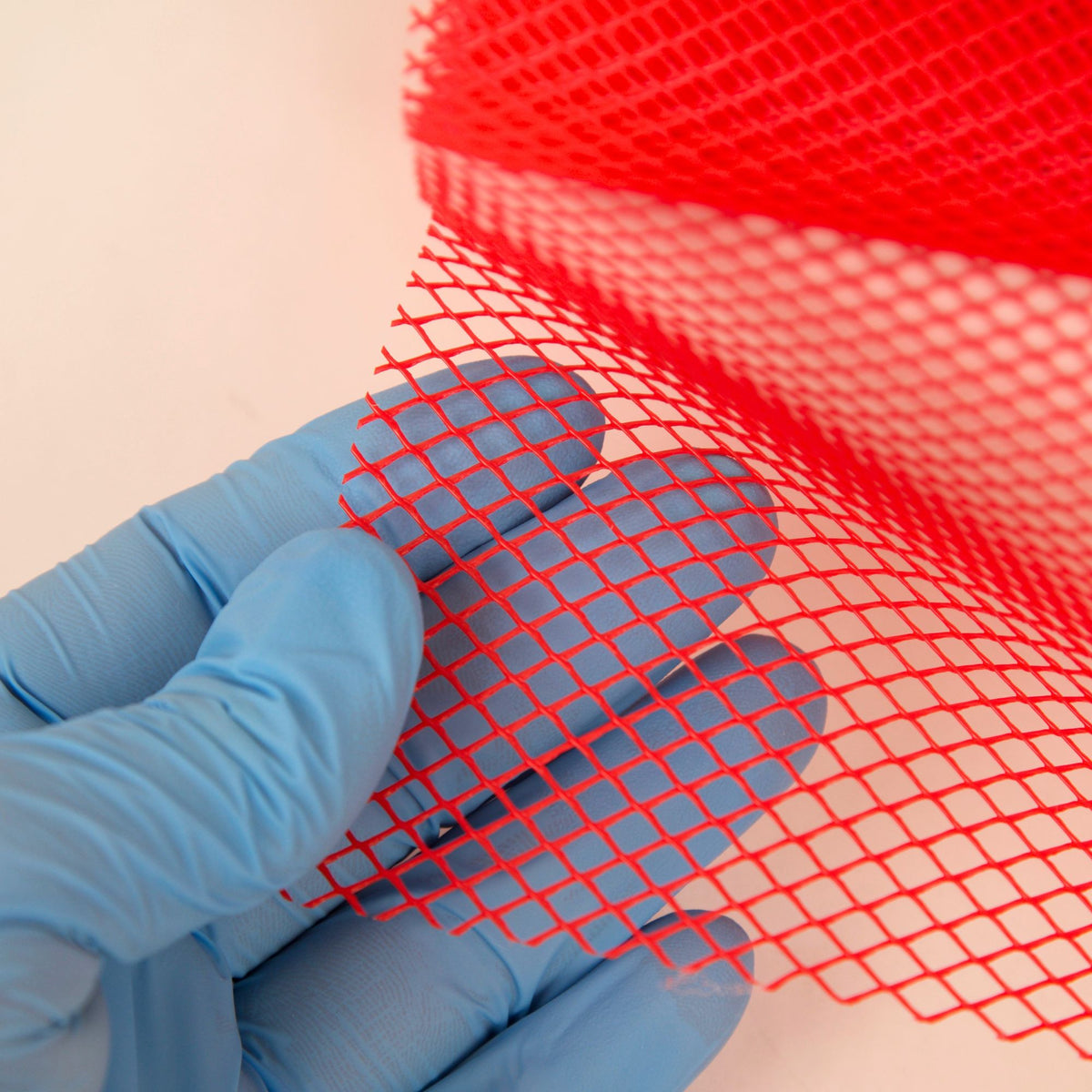

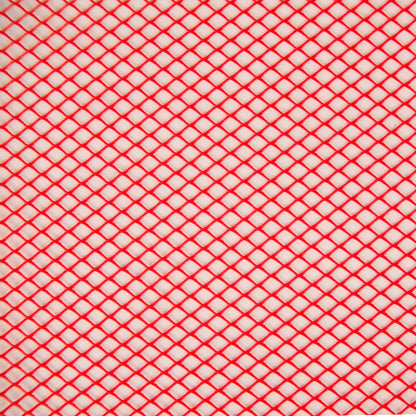

Red Infusion Flow Media - Fast Speed Flow

Red flow media is the fast layer in a resin infusion stack. Its large open cells carry resin across the part quickly, so the reinforcement wets out sooner and infusions finish faster.

Where it goes and what it runs with

Lay it over the peel ply or release film and under the vacuum bag, so resin travels through the media and down into the laminate. It handles epoxy, polyester and vinyl ester, in low-viscosity systems and thicker ones too. Cuts are 60 in wide: 1 yard to trial on a test panel, 3 or 10 yards for a part, or the full 117 yard roll for production.

• Width: 60 in
• Lengths: 1, 3, 5 or 10 yards, or a full roll (117 yards)
• Thickness: 0.045 in
• Maximum use temperature: 160°F (71°C)
• Resins: epoxy, polyester, vinyl ester

Planning the stack? The fiberglass laminate thickness chart lists cured thickness and resin per ply.
