Vacuum Bagging Starter Kit - Film, Peel Ply, Breather, Tape, Connector & Hose

Name: Vacuum Bagging Starter Kit - Film, Peel Ply, Breather, Tape, Connector & Hose
Brand: Boat Suppliers
SKU: VB-KIT-STARTER
Price: 174.95 USD
Availability: InStock

1 4

Boat Suppliers

Vacuum Bagging Starter Kit - Film, Peel Ply, Breather, Tape, Connector & Hose

SKU:VB-KIT-STARTER

$174.95 USD

$174.95 USD ~~USD~~

Sale Sold out

Shipping calculated at checkout.

In stock

Quantity

Bag a wet laminate with three yards each of nylon bagging film, polyester peel ply and 4 oz breather, plus sealant tape, an aluminum bag connector and 10 ft of hose with fittings and clamps. Designed for room-temperature vacuum bagging of small composite panels and parts.

Pump not included. Check your pump inlet before ordering. A pump-specific adapter, gauge, isolation/control valve and resin trap are not included.

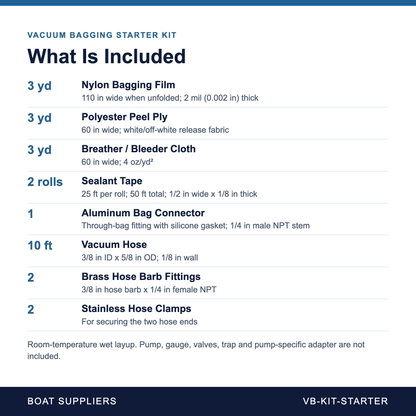

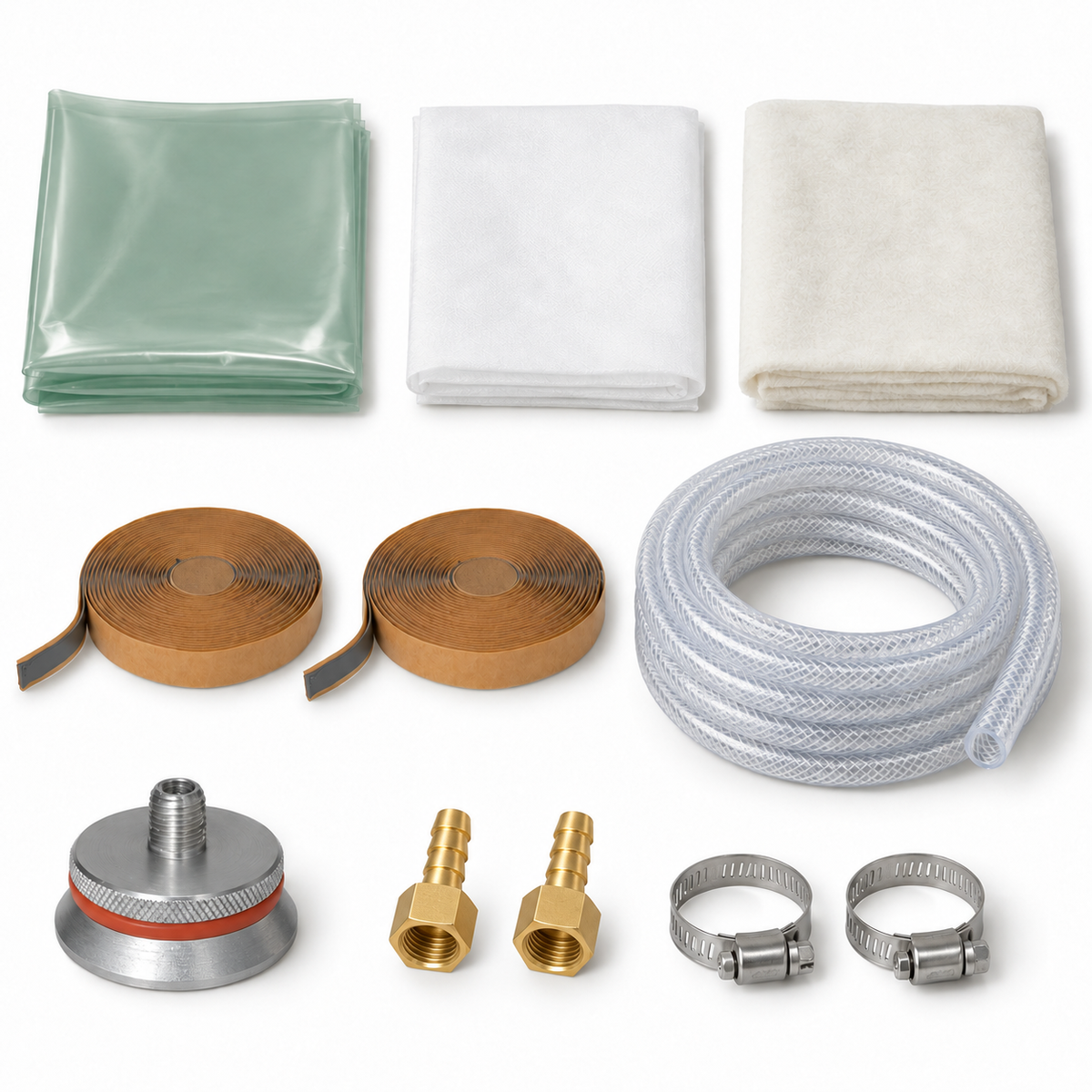

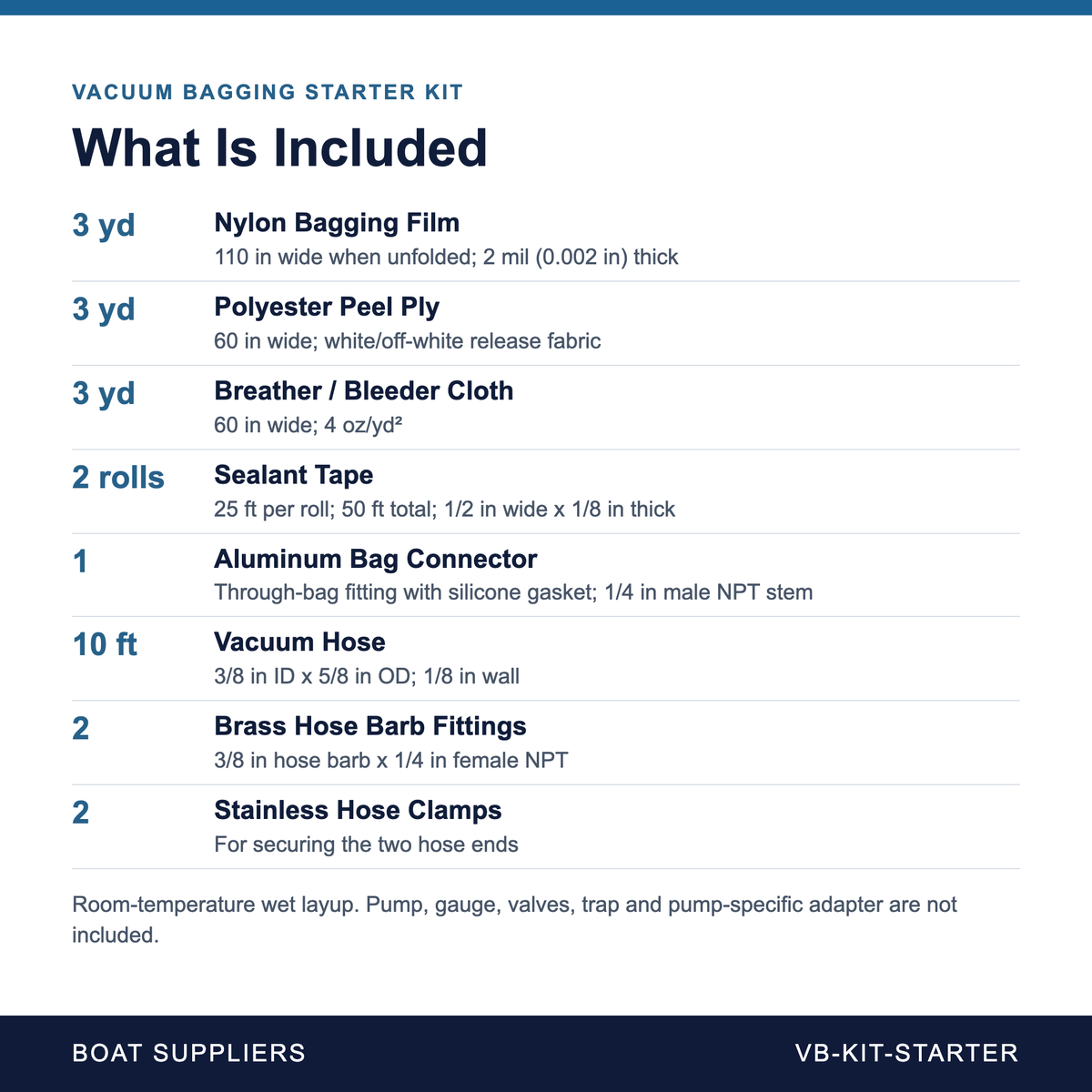

What Is Included

3 yd Nylon Bagging Film: 110 in wide when unfolded; 2 mil (0.002 in) thick
3 yd Polyester Peel Ply: 60 in wide; white/off-white release fabric
3 yd Breather / Bleeder Cloth: 60 in wide; 4 oz/yd²
2 rolls Sealant Tape: 25 ft per roll; 50 ft total; 1/2 in wide x 1/8 in thick
1 Aluminum Bag Connector: Through-bag fitting with silicone gasket; 1/4 in male NPT stem
10 ft Vacuum Hose: 3/8 in ID x 5/8 in OD; 1/8 in wall
2 Brass Hose Barb Fittings: 3/8 in hose barb x 1/4 in female NPT
2 Stainless Hose Clamps: For securing the two hose ends

Plan Your Bag

The supplied film provides 82.5 sq ft of raw material; peel ply and breather each provide 45 sq ft. Finished-part coverage is smaller because the bag needs room for the sealing flange, pleats and part depth. Material ships folded. Check your layout before cutting.

Check Your Pump Connection

The bag connector has a 1/4 in male NPT stem. The two supplied barb fittings are 3/8 in hose barb x 1/4 in female NPT. Match the pump inlet size, thread and gender before assembly. An SAE flare adapter is not included.

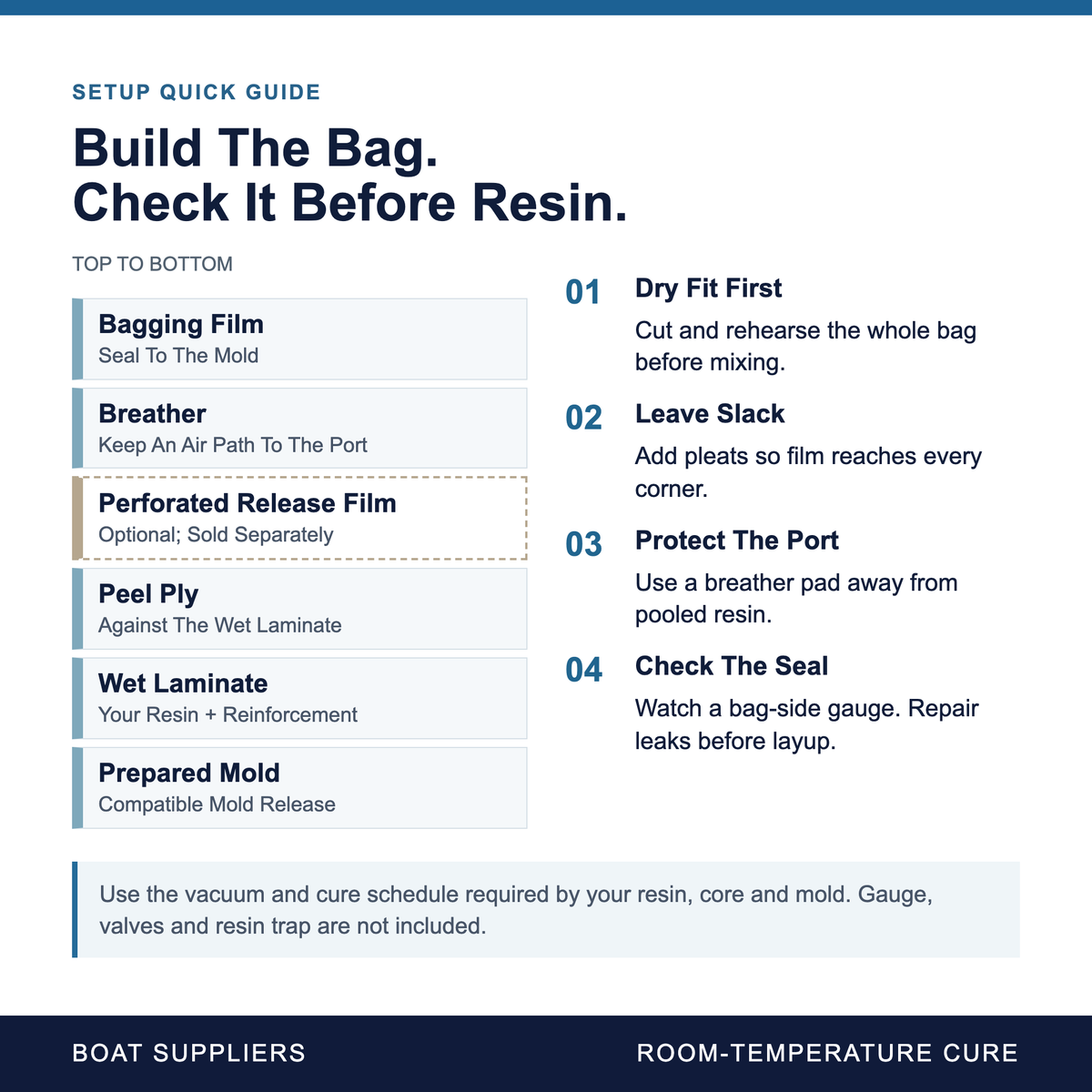

How The Layers Work

Peel ply sits against the wet laminate. Breather provides an air path to the connector and can absorb resin. Where required by your process, place perforated release film between peel ply and breather to control resin bleed. It is sold separately. Seal the outer bagging film with slack and pleats so it can contact the part.

Peel ply leaves texture, but follow your resin, adhesive or coating supplier's surface-preparation instructions before bonding or painting. This kit is for wet layup at room temperature, not a complete resin infusion or heated-cure system.

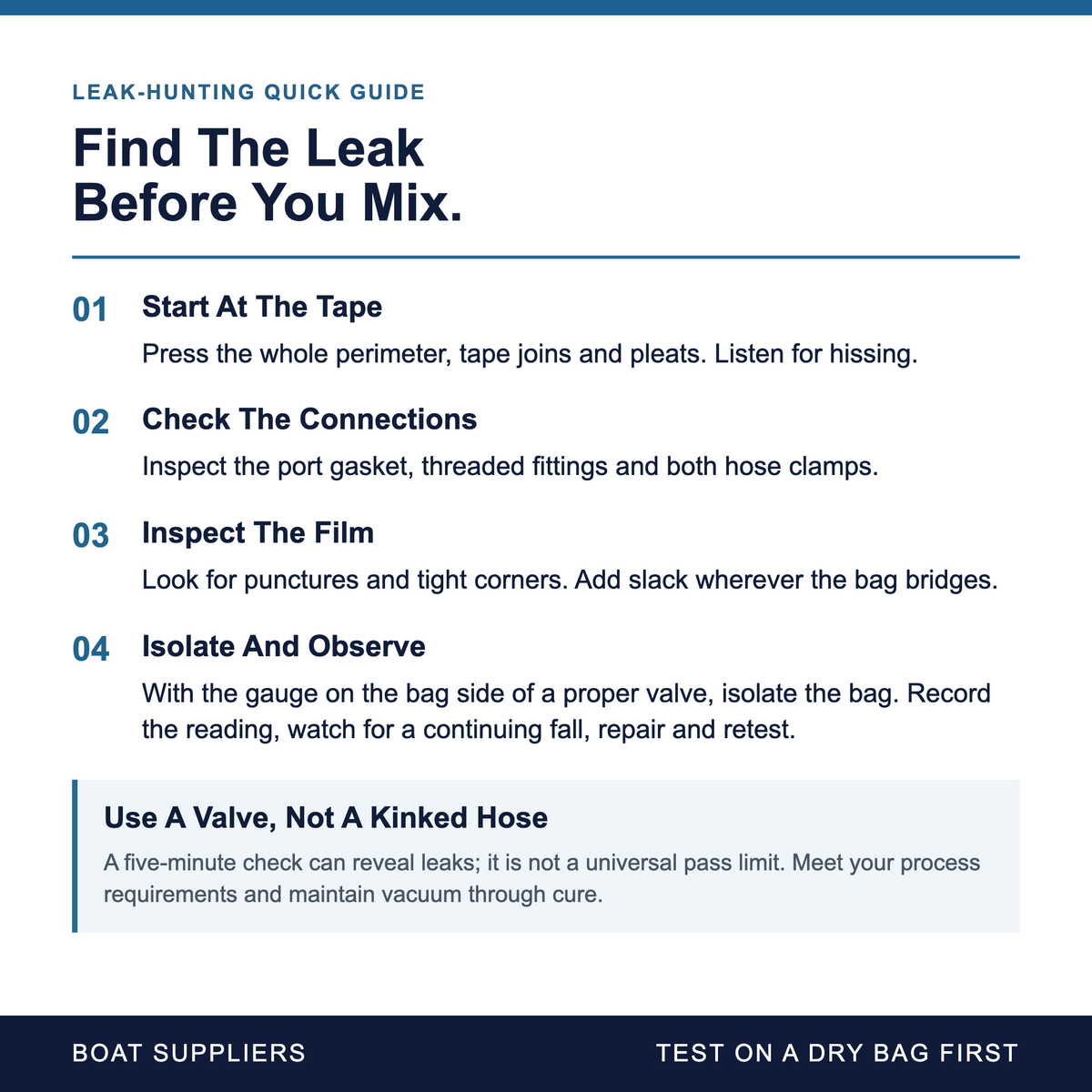

Setup And Leak-Hunting Guide

Save the guide on your phone or print it for the bench. It covers preparation, layer order, pump connection checks and a systematic leak hunt.

Download The Setup Guide (PDF)

Specifications

Package size15 in x 12 in x 8 in

Specifications

Process: Wet-layup vacuum bagging
Cure: Room-temperature cure only; not an oven or autoclave kit
Bagging Film: Nylon; 110 in unfolded width; 2 mil thickness; 3 yd supplied
Peel Ply: Polyester; 60 in width; 3 yd supplied
Breather / Bleeder: 4 oz/yd²; 60 in width; 3 yd supplied
Sealant Tape: 2 x 25 ft rolls; 1/2 in wide x 1/8 in thick
Bag Connector: Machined aluminum with silicone gasket; 1/4 in male NPT
Hose: 10 ft; 3/8 in ID x 5/8 in OD; 1/8 in wall
Barb Fittings: 2 x 3/8 in hose barb to 1/4 in female NPT
Hose Clamps: 2 x stainless steel
Supplied Form: Film, peel ply and breather supplied folded
Material Area: 82.5 sq ft of film; 45 sq ft each of peel ply and breather, before cutting
Part Sizing: Allow for flange, pleats, depth, overlap and waste; material area is not finished-part coverage
Pump Fit: Check pump inlet size, thread and gender; a matching pump adapter may be required and is not included
Guide: Downloadable PDF; optional printing

Includes

3 yd Nylon Bagging Film: 110 in wide when unfolded; 2 mil (0.002 in) thick
3 yd Polyester Peel Ply: 60 in wide; white/off-white release fabric
3 yd Breather / Bleeder Cloth: 60 in wide; 4 oz/yd²
2 rolls Sealant Tape: 25 ft per roll; 50 ft total; 1/2 in wide x 1/8 in thick
1 Aluminum Bag Connector: Through-bag fitting with silicone gasket; 1/4 in male NPT stem
10 ft Vacuum Hose: 3/8 in ID x 5/8 in OD; 1/8 in wall
2 Brass Hose Barb Fittings: 3/8 in hose barb x 1/4 in female NPT
2 Stainless Hose Clamps: For securing the two hose ends
Digital setup and leak-hunting guide (downloadable PDF)

Features

Materials for room-temperature vacuum bagging of wet layups
Three yards each of bagging film, peel ply and 4 oz breather
Reusable aluminum bag connector with 10 ft hose and fittings
Two sealant tape rolls provide 50 ft for bag perimeters, pleats and repairs
Downloadable setup and leak-hunting guide

View full details

What Is Included In The Starter Kit?

Three yards each of 110 in nylon bagging film, 60 in polyester peel ply and 60 in 4 oz breather; two 25 ft sealant tape rolls; one aluminum through-bag connector; 10 ft of 3/8 in ID hose; two brass 3/8 in barb x 1/4 in female NPT fittings; and two stainless hose clamps. A downloadable setup and leak-hunting guide is provided.

Does This Kit Include A Vacuum Pump?

No. Supply a suitable pump, gauge, control/isolation valve and resin trap for your process, plus resin/hardener, reinforcement and mold release. Check your pump inlet before ordering.

Will It Connect To My Pump?

The bag connector has a 1/4 in male NPT stem. The supplied brass fittings have 3/8 in hose barbs and 1/4 in female NPT threads. Your pump may need a separate adapter. SAE flare and NPT are different connections; an SAE flare adapter is not included.

How Large A Part Can I Bag?

The kit supplies 3 linear yards of each material: 82.5 sq ft of bagging film and 45 sq ft each of peel ply and breather before cutting. These are material areas, not finished-part coverage. Allow extra film for the sealing flange, part depth and pleats, and allow for overlaps and waste.

Is Perforated Release Film Included?

No. Use an appropriate perforated release film between peel ply and breather when your layup process calls for controlled resin bleed. Its hole pattern affects resin flow; it is not the same as peel ply or infusion flow media.

Can I Use This Kit For Resin Infusion?

This kit is configured for wet layup, where reinforcement is wetted before the bag is sealed. Infusion needs a separately planned resin feed, flow media, suitable lines and ports, and a resin trap. It is not a complete infusion setup.

What Vacuum Level Should I Use?

Use the level specified for your resin, reinforcement, core and mold. Excess vacuum can remove too much resin or damage a weak core. Monitor vacuum at the bag and test your process on a small sample.

Do I Need To Sand After Removing Peel Ply?

Peel ply leaves a textured surface, but it does not guarantee a ready-to-bond or ready-to-paint surface. Remove the fabric fully and follow your resin, adhesive or coating supplier's cleaning and abrasion requirements.

Is The Guide Printed Or Digital?

The setup and leak-hunting guide is available as a downloadable PDF, so you can save it on your phone or print it. A printed sheet is not required to use the guide.

Can I Reuse The Materials Or Cure In An Oven?

Clean, undamaged hardware may be reused after inspection. Plan on replacing peel ply, resin-wetted breather and sealant tape for each job. Film is reusable only if clean, intact and leak-tested. This kit is for room-temperature cure, not oven or autoclave processing.
