Technical Specifications
Mix 1:1 resin : hardener by volume - equal parts, no pump mathWorks with None - NOT for wetting out fiberglass, carbon, or Kevlar; use the Thin 635 kit for laminating

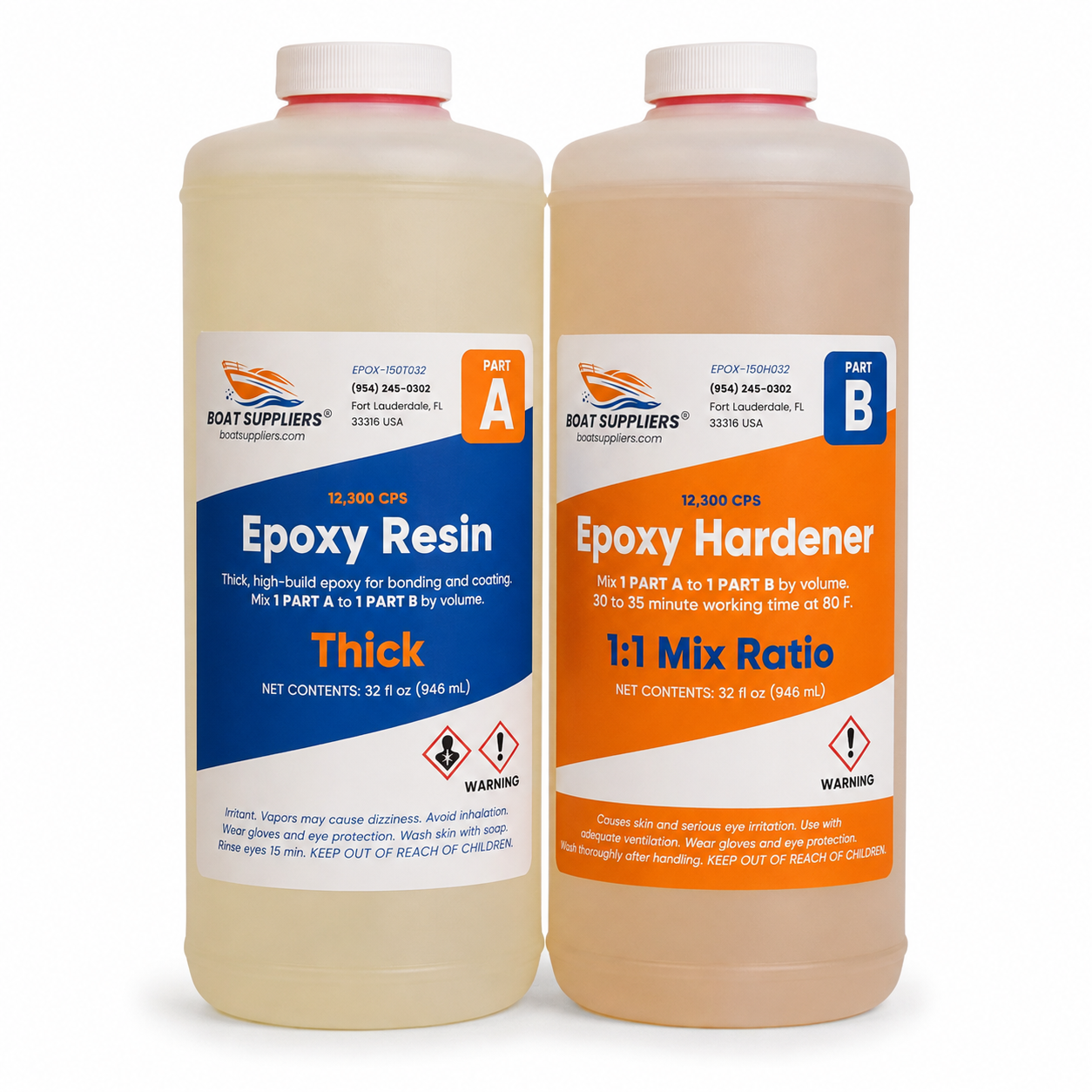

Resin TypeEpoxy - thick 1:1 bonding & coating (no-sag)
Mix Ratio1:1 resin : hardener by volume - equal parts, no pump math
ViscosityVery thick - high build, no sag on vertical surfaces
Pot Life30-35 min @ 80°F
Tack-FreeSets in 3-4 hr
Full CureDries hard in 12-14 hr
UV ResistanceNot UV-stable - topcoat for sun exposure
Works With (Fabrics)None - NOT for wetting out fiberglass, carbon, or Kevlar; use the Thin 635 kit for laminating
Works With (Fillers)All BS fillers - Cabosil, milled fibers, microballoons for fillets & putty work
Apply OverWood, fiberglass, metals, masonry - scuff-sand & solvent-wipe first
Best ForBonding, fillets & high-build coats on vertical surfaces - stays where you put it
Compare Resins
| Product | Boat Suppliers Epoxy Resin Kit - Thick, 1:1 Bonding and Coating, with HardenerYou're viewingfrom $19.95
| Boat Suppliers Epoxy Resin Kit – Thin, Clear, with Hardenerfrom $17.95
| Boat Suppliers Table Top Kleer Kote Epoxy Resinfrom $44.99
| West System Six10 Thickened Epoxy Adhesivefrom $36.78
|
|---|---|---|---|---|
| Type | Epoxy - thick 1:1 bonding & coating (no-sag) | Epoxy - low-viscosity laminating system | Epoxy - 100% solids clear coating (KleerKote #30) | Thickened epoxy adhesive - self-metering coaxial cartridge |
| Mix Ratio | 1:1 resin : hardener by volume - equal parts, no pump math | 2:1, 3:1, or 4:1 by volume (match your hardener) | 1:1 by volume - exact; do not vary | Auto-metered through the 600 Static Mixer - fits any caulking gun |
| Viscosity | Very thick - high build, no sag on vertical surfaces | 600 cps resin - thin, syrup-like for fast wet-out | — | Non-sag gel; shear-thinning, wets out fabric under tooling pressure |
| Pot Life | 30-35 min @ 80°F | 35-40 min (2:1) / 20-25 min (3:1) / 15 min (4:1) @ 80°F | Pour right after mixing - massed epoxy kicks fast in the pot | 42 min (100 g @ 72°F) |
| Full Cure | Dries hard in 12-14 hr | Dry: 24-28 hr (2:1) / 8-10 hr (3:1) / 3-4 hr (4:1) | Light use after 2-3 days; hardens fully over ~2 weeks | Solid in 5-6 hr; working strength 1-4 days |
| Cured Color | — | Semi-clear - hardener has an amber tint, dries clear in thin coats | Crystal clear; very slight amber over 1/2 in total depth | Transparent straw yellow |
| Max Temp | — | 150-195°F | — | HDT 127°F |
| UV | Not UV-stable - topcoat for sun exposure | No UV inhibitor - topcoat for sun exposure | Resists yellowing, but not for continuous outdoor UV | — |
| Fabrics | None - NOT for wetting out fiberglass, carbon, or Kevlar; use the Thin 635 kit for laminating | Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only) | — | — |
| Best For | Bonding, fillets & high-build coats on vertical surfaces - stays where you put it | Lamination & wet-out, wood sealing, all-around marine repair | Bar tops, tables, counters, art pours | Gap-filling structural bonds, fillets, hardware bedding; minimum 50°F |
| View | View | View |
