Resin Mixing Mistakes That Ruin Your Composite Project (And How to Avoid Them)

Even experienced fabricators can fall victim to resin mixing mistakes that turn hours of careful laminate work into a sticky, uncured mess, and it is often the step that gets rushed. Whether you are building a fiberglass repair panel, laying up a custom hull section with 1708 biaxial, or doing a gelcoat repair, the mixing stage is where most composite projects succeed or fail. This guide goes beyond the basics to cover the specific, real-world mistakes that working boat builders and repairers run into, and exactly what to do about them.

Why Resin Mixing Mistakes Are More Costly on Marine Projects

On a boat, a failed cure is not just an aesthetic problem. Soft, tacky, or under-cured laminate can delaminate under load, absorb water, and compromise structural integrity. The stakes are higher than a resin art pour, which is why getting the chemistry right before you ever touch a brush or roller to fabric is non-negotiable.

Resin Type Quick-Reference Table

Before we get into the mistakes, here is the reference data that working fabricators actually need on hand. These are typical values; always verify against your specific product's technical data sheet.

Mistake #1: Eyeballing Your Ratio Instead of Measuring It

This is the number one cause of resin not curing properly, and it is completely avoidable. Epoxy resin systems rely on a precise chemical reaction between the resin and hardener. Tip the balance even slightly, say 10% extra hardener thinking it will speed up the cure, and you will end up with a laminate that either stays tacky indefinitely or cures with soft, weak spots throughout.

Polyester and vinylester resins with MEKP catalyst are even less forgiving in the other direction: too much catalyst causes an excessively rapid exotherm that can crack your laminate, warp thin panels, or even cause a smoking, runaway reaction in the mixing container. Too little, and the resin will not kick at all, or will cure so slowly it remains green and weak for days.

The fix is simple: use calibrated dispensing tools. For epoxy systems, ratio pumps like these 1oz-per-stroke dispensers take the guesswork out of 1:1 systems and can be used in multiple strokes to achieve other ratios accurately. For polyester and vinylester work, always use a calibrated syringe or graduated mixing cup and never free-pour your MEKP.

For your mixing containers, white paper mixing tubs give you a clean, neutral surface to mix in and are available in sizes from 32oz up to 165oz to match your batch size. They are single-use, which means no cross-contamination from a previous mix.

Mistake #2: Under-Mixing, The Hidden Killer of Epoxy Cures

I have seen this one more times than I can count in a working shop: the ratio was right, the materials were at temperature, but somebody stirred for 30 seconds and moved on. The result is streaks of unmixed resin or hardener that create soft spots, tacky patches, and inconsistent mechanical properties across the laminate. When you are mixing a 1.5-gallon batch for a 1708 layup on a hull section, an unmixed streak in that pot means a weak zone in your finished part, and you will not find it until it matters.

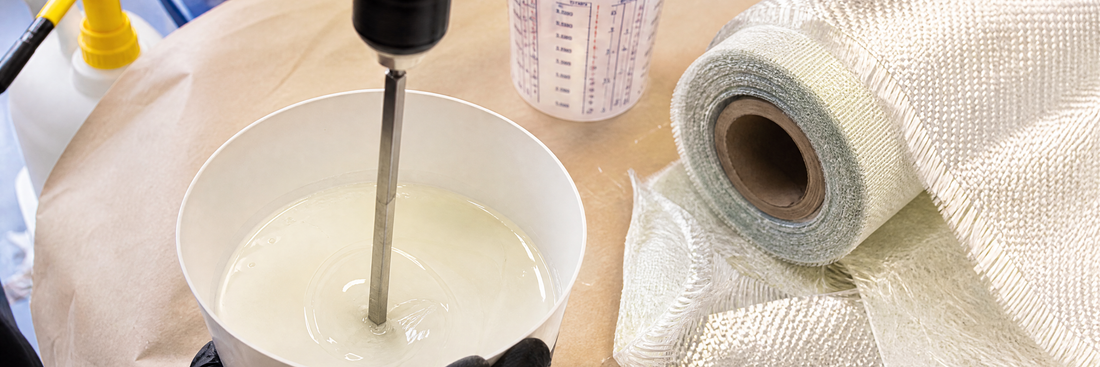

Thorough mixing means scraping the sides and bottom of your container as you stir, and mixing for at least 2 to 3 full minutes for epoxy systems. For larger batches or higher-viscosity materials like filled resins and fairing compounds, hand-mixing is impractical, and that is where a 16-inch steel power mixer becomes essential. The hexagonal shaft locks into a drill without slipping, and the 2-3/8-inch mixing head moves material efficiently without introducing excessive air. Use it on a low drill speed to avoid aeration.

One pro tip: mix in one container, then transfer to a second clean container and mix again. This double-pot technique ensures any unmixed material clinging to the walls of the first cup does not end up in your laminate.

Mistake #3: Working in the Wrong Temperature (and Ignoring Humidity)

Cold resin is sluggish, does not wet out fabric properly, and can take so long to cure that it never achieves full crosslink density. Below 60F, many epoxy systems will cure with significantly reduced mechanical properties even if they eventually harden. Above 90F, your pot life shrinks dramatically. A batch that gives you 25 minutes at 70F might kick in under 10 minutes on a hot summer day in a boatyard.

Humidity matters for polyester and vinylester resins especially. High humidity can cause surface inhibition, that persistent tacky surface layer, and cloud clear coats. Store your resin and hardener at room temperature overnight before use, and if your shop runs cold, consider warming the containers in a warm water bath. Never use direct heat.

Mistake #4: Adding Too Much Catalyst to Speed Things Up

On a tight schedule, it is tempting to bump up the MEKP percentage in a polyester or vinylester system. Resist the urge. The typical working range is 1 to 2% by weight, and going above 2.5% does not just shorten your pot life; it actively degrades the final cure. Too much catalyst causes the resin to cure too fast and too hot, resulting in a brittle, stressed laminate with poor interlaminar strength. In worst-case scenarios, the exotherm in a large batch can cause smoking or fire.

If you need to work faster, use a higher-reactivity hardener or work in a warmer environment rather than adding more catalyst. If you need to thin the resin for better wet-out on a porous surface or for spraying, the correct approach is to use an appropriate reactive diluent. For polyester systems, styrene monomer is the standard thinner that reduces viscosity without disrupting the cure chemistry the way solvent-based thinners would.

Mistake #5: Adding Pigment Without Accounting for It in Your Mix

Colorants and pigments are often treated as afterthoughts, stirred in at the end without any regard for their effect on the mix. In reality, some pigment systems, particularly paste-type pigments, can slightly affect cure if added in excessive quantities. Liquid pigments are generally safer and easier to disperse evenly.

For structural laminates, add pigment only to your gelcoat or surface coat, not to your structural resin. You want to be able to see exactly what is happening in your laminate. For gelcoat work, a highly concentrated black opaque liquid pigment means you need very little to achieve a deep, consistent color, reducing any potential interference with cure.

Always mix pigment into the resin component before adding hardener, and mix until completely streak-free before proceeding with your ratio mixing.

Mistake #6: Mixing Filled Resins Without a Proper Addition Sequence

This one catches a lot of builders when they move from straight laminating resin into fairing compounds and thickened adhesives. When you are adding fumed silica, colloidal silica, or microballoons to a resin system, the sequence and method of addition matters as much as the amounts.

Adding too much filler too quickly, especially into an already-mixed epoxy, creates pockets of dry filler that never fully wet out. The result is a fairing compound or adhesive fillet with voids and inconsistent density, which shows up as pinholes after sanding or as a weak bond line under load. The correct approach is to mix your resin and hardener fully first, then add filler gradually in stages, mixing thoroughly between additions until you reach the target consistency. For larger fairing batches, a power mixer on a low-speed drill gives you the control to incorporate filler without over-aerating the mix.

The same discipline applies when mixing CSM into a wet-out sequence. Chopped strand mat releases its binder when it contacts styrene-based resins, and if the resin is not properly mixed before contact, you may have inconsistent catalyst distribution at exactly the moment the binder is releasing and the mat is becoming pliable. Mix completely first, then wet out your CSM or 1708 reinforcement.

Quick Resin Mixing Tips Checklist

• Always measure by the method specified, weight for epoxy, volume for MEKP-catalyzed systems unless the manufacturer specifies otherwise
• Mix for a minimum of 2 to 3 minutes, scraping sides and bottom continuously
• Use the double-pot technique for critical structural work
• Work between 65 and 80F for most marine resin systems
• Never exceed manufacturer's catalyst recommendations, more is not faster, it is worse
• Add pigment to resin before hardener and verify streak-free dispersion
• Add fillers in stages after the resin and hardener are fully combined
• Use the right tools, ratio pumps, calibrated cups, and power mixers eliminate the most common errors

Get the Mix Right the First Time

The majority of composite failures that show up as soft spots, delamination, or poor mechanical strength trace back to something that happened in the mixing stage, not the materials themselves. Good resin, properly measured, properly mixed, and applied in the right conditions will perform exactly as its technical data sheet promises. Invest a few minutes in the right process and the right tools, and you will spend a lot less time sanding back failed laminate and starting over.
