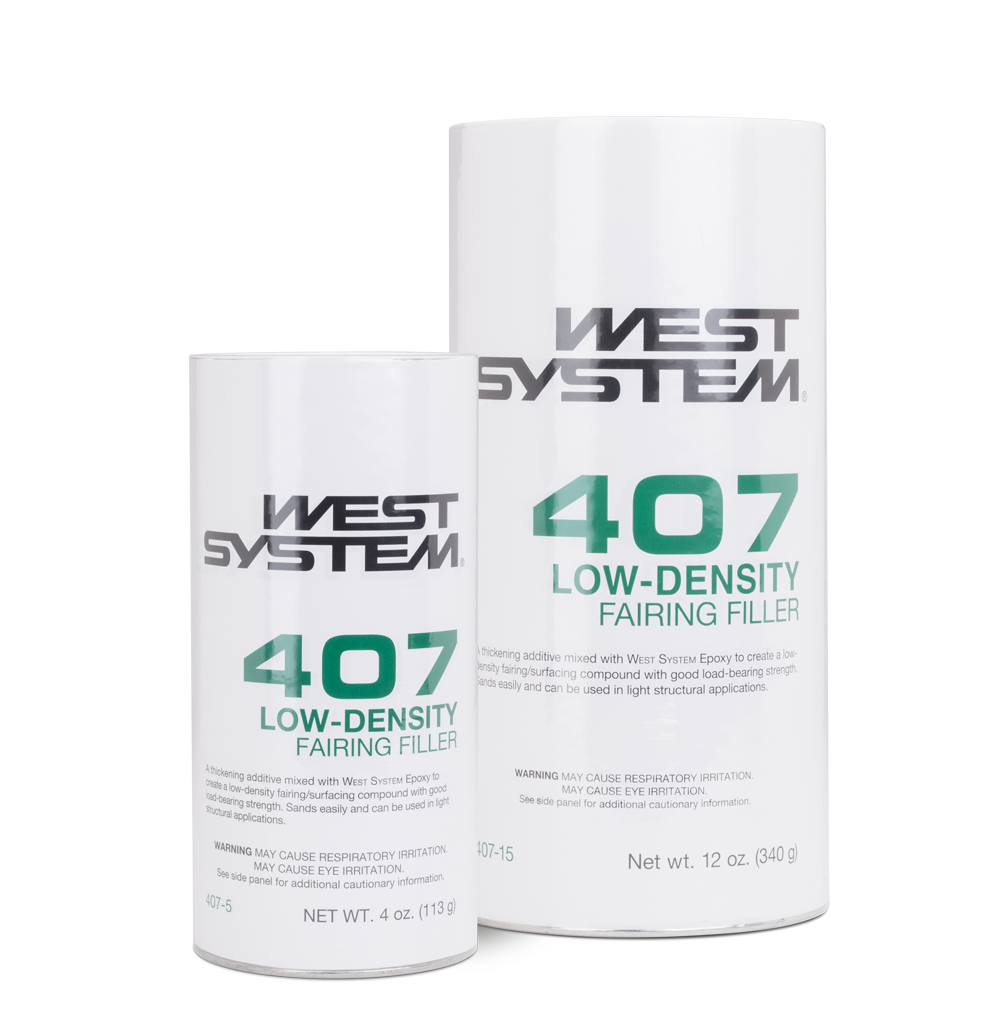

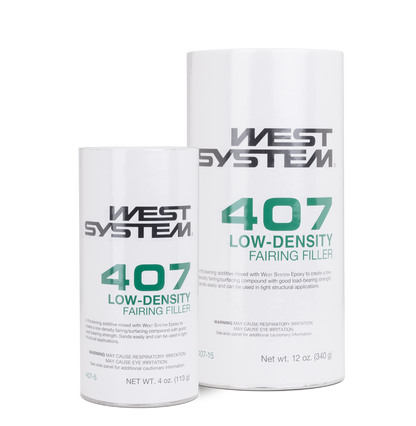

West System 407 Low-Density Fairing Filler

Lightweight fairing fillerEasy

West System
West System 407 Low-Density Fairing Filler

West System 407 Low-Density Fairing Filler

SKU:SWES-407-5

Regular price $40.10 USD
Sale price $40.10 USD Regular price USD
Sale Sold out
Shipping calculated at checkout.

In stock

Size: 4 oz (407-5)

Key Specs

Filler Type
Lightweight fairing filler (microballoon blend)
Density Class
Light
Sandability
Easy
Compatible Resins
Epoxy
Physical Form
Dry powder (microballoon blend)
Material
Blended microballoons

West System's 407 Low-Density Filler is the fairing filler of the West range: a microballoon blend that mixes into 105 epoxy to make an easy-sanding, low-density fairing putty. It cures to a dark red-brown, sands and carves cleanly with a fairing board, and is reasonably strong for its weight.

407 or 410?

Both sand easily. 410 Microlight is lighter and the easiest sanding of the two, but West warns against using it under dark paint or on surfaces that get hot. 407 gives up a little sanding speed for more strength, which makes it the pick wherever the faired surface takes knocks.

Mixing it

Wet out the surface with mixed epoxy first, then thicken the batch with 407 to a peanut-butter consistency for fairing or a bit looser for skim coats. Spread, let it cure, and knock it down with 80 grit before finishing. Our fairing filler calculator sizes the batch for you.

View full details

Technical Specifications


Made in USAWorks with Epoxy
MaterialBlended microballoons
Filler TypeLightweight fairing filler (microballoon blend)
Physical FormDry powder (microballoon blend)
ColorDark red-brown
Density ClassLight
SandabilityEasy
Compatible ResinsEpoxy
Country of OriginUSA

Net Weight by Size

407-54 oz (113 g) can
407-1512 oz (340 g) can
407-B14 lb (6.35 kg) box

Compare Fillers


ProductWest System 407 Low-Density Fairing FillerWest System 407 Low-Density Fairing FillerYou're viewingfrom $40.10 Phenolic MicroballoonsPhenolic Microballoonsfrom $18.95 Boat Suppliers Fairing CompoundBoat Suppliers Fairing Compoundfrom $13.95 West System 410 Microlight Fairing FillerWest System 410 Microlight Fairing Fillerfrom $34.70
Best forLightweight fairing filler (microballoon blend)Lightweight fairing fillerPre-blended fairing compoundLightweight fairing filler (microballoon blend)
DensityLightLightLightLight
SandabilityEasyEasyEasyEasy
ResinsEpoxyEpoxy, Polyester, Vinyl EsterEpoxyEpoxy
MaterialBlended microballoonsPhenolic resin hollow microspheres (microballoons)In-house blend of fumed silica, phenolic microballoons and 3M glass bubblesN/A
SelectedViewViewView

Match the filler to the job, and keep strength fillers below the surface with fairing fillers on top:

  • Bonding and structural fillets: use a high-density or fiber filler like colloidal silica (Cabosil), milled fiber, or microfibers, which cure hard and strong.
  • Fairing and shaping: use a low-density filler like phenolic microballoons, glass bubbles, or a fairing compound, which sand and feather easily.

Adhesive, high-density fillers like colloidal silica and microfibers make a hard, strong mix for bonding and structural filleting, but they are tough to sand. Fairing, low-density fillers like microballoons and glass bubbles make a light, soft mix that sands and feathers easily for a smooth surface, but they are not structural. Use adhesive fillers for strength and fairing fillers for finish.

There is no fixed ratio. Mix the resin and hardener fully first, then stir in filler a little at a time until you reach the consistency the job needs:

  • Ketchup consistency: for a coating or pre-coat that still flows.
  • Mayonnaise consistency: for bonding parts together.
  • Peanut-butter consistency that holds a peak: for filleting and gap-filling.

Low-density microsphere fillers sand the easiest. Phenolic microballoons, 3M glass bubbles, and lightweight blends like our fairing compound or West System 410 Microlight feather to a fine edge and carve with little effort once cured. They trade strength for sandability, so use them above the structural layer for shaping and smoothing, not for bonding or load-bearing fillets.

Some are. High-density and fiber fillers like colloidal silica, milled glass fiber, and microfibers add real strength and are made for bonding and load-bearing fillets. Low-density fairing fillers like microballoons and glass bubbles are not structural; they are for shaping and fairing only. Build strength with a high-density filler first, then fair over it with a low-density filler.

Each West System filler is tuned to a different job:

  • 406 Colloidal Silica: the versatile thickener for bonding and filleting; controls sag on vertical and overhead work.
  • 404 High Density: the strongest, for hardware bonding under high load.
  • 403 Microfibers: add toughness for structural filleting and gap-filling.
  • 405 Filleting Blend: a natural wood-tone fillet that sands easily.
  • 407 Low-Density: the microballoon fairing filler that is stronger than 410 and still easy to sand and carve; cures dark red-brown.
  • 410 Microlight: the low-density fairing filler that sands the easiest over large areas.
