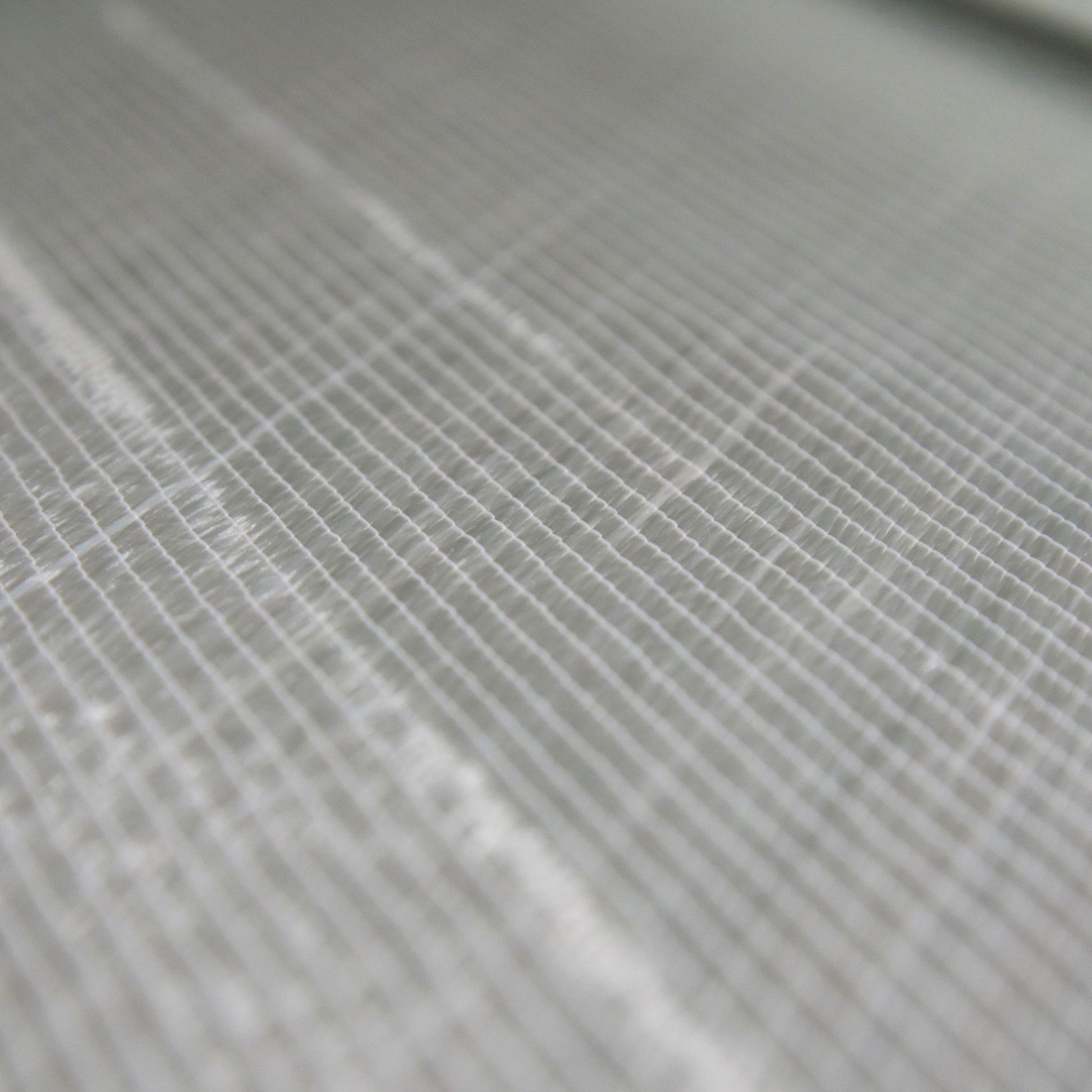

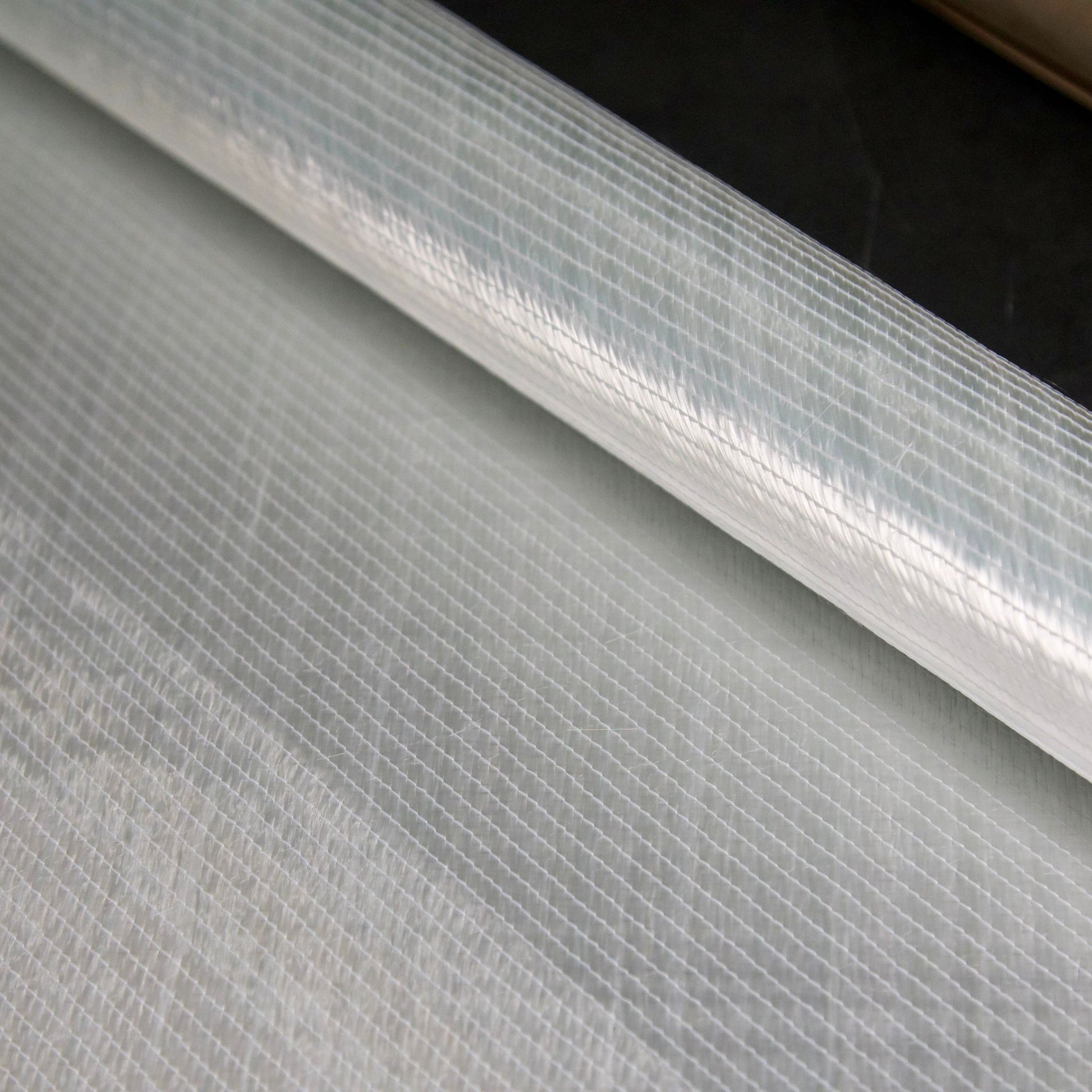

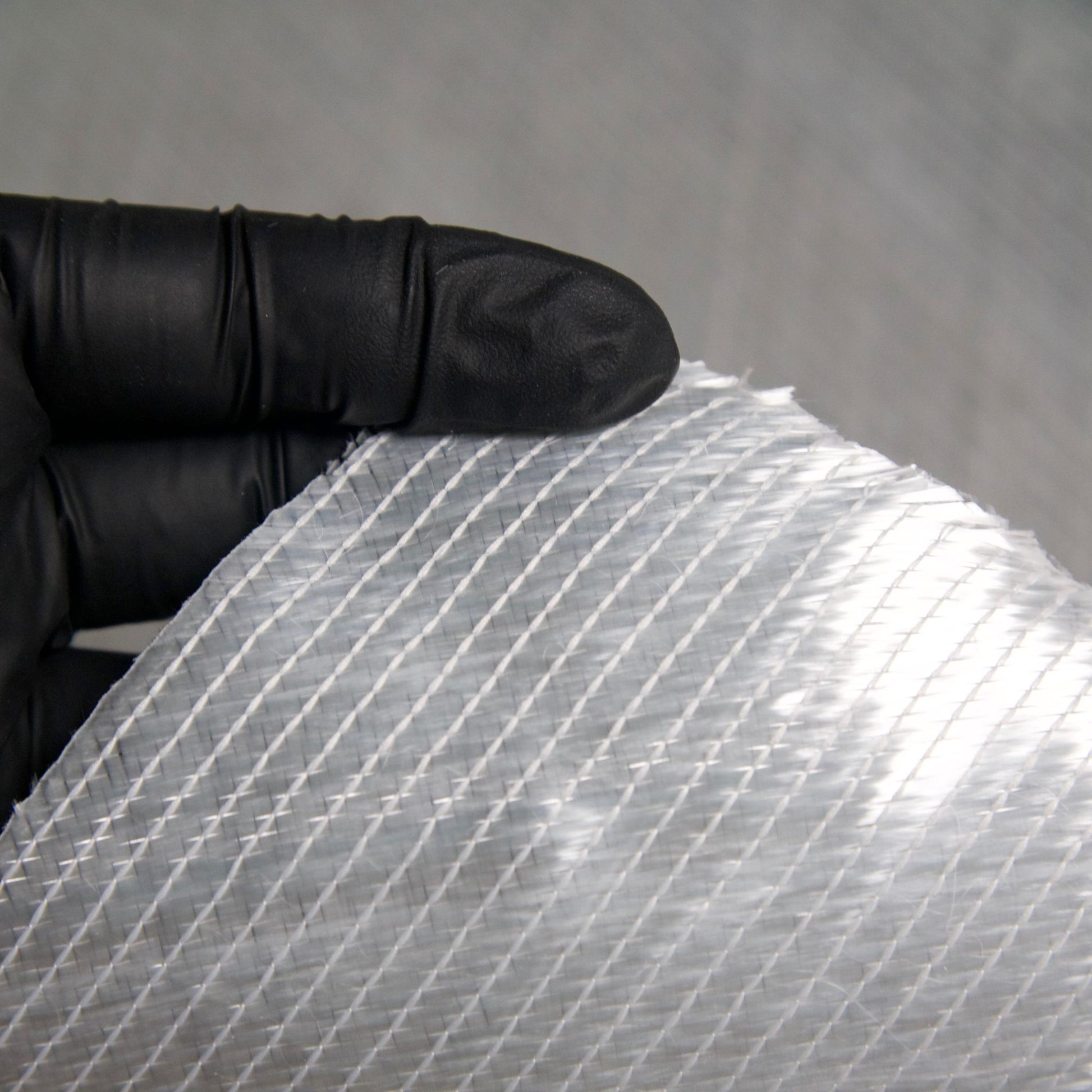

DB170 – 17oz Biaxial Fiberglass Cloth (No Mat)

17 oz, no mat±45°50" wide

1 3

Boat Suppliers

DB170 – 17oz Biaxial Fiberglass Cloth (No Mat)

SKU:FG-DB17050-01

$14.45 USD

$14.45 USD ~~USD~~

$14.45 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 50"

50"

Length: 1 Yard

1 Yard 3 Yard Pack 5 Yard Pack 10 Yard Roll 25 Yard Roll Full Roll (approx. 50 yards)

Quantity

Key Specs

Weight: 17 oz/yd² (576 g/m²), no mat
Fiber Angle: ±45° (double bias)
Widths: 50 in
Compatible Resins: Epoxy, Polyester, Vinyl Ester
Resin Needed: About 30 oz per yard, waste included
Ships: Folded under 10 yd, rolled from 10 yd

DB170 is 1708 without the chopped strand mat. Same 17 oz of +45 and -45 stitched E-glass, same 50 in width, but nothing on the back, which makes it the right pick for epoxy layups where you do not want mat binder in the laminate and do not need the bulk it adds.

Where it goes: epoxy repairs, structural panels, stringer and bulkhead work where you want strength without mat.
Thinner per ply: 0.030 in against 0.044 in for 1708, so the laminate comes out tighter and lighter for the same fiber weight.
Resin demand: roughly 1:1 resin to glass by weight, about 2.0 oz per square foot, close to half what 1708 drinks.
Resin compatibility: epoxy, polyester and vinyl ester.
Cuts: 1 yard, 3 yards, 10 yards and full roll, 50 in wide.

Because there is no mat holding the stitch pattern flat, cut it with sharp shears and handle the edges carefully. Cuts ship rolled on a corrugated tube.

Specifications

Heavy-Duty Reinforcement: 17oz biaxial fiberglass stitched at ±45° for maximum strength.
No Mat Backing: Smooth finish, ideal when mat reinforcement isn’t required.
Marine-Grade Quality: Perfect for boatbuilding, composite layups, and repairs.
Bundle Options: Choose 1, 3, or 10 yard packs — no waste, just what you need.
High Conformability: Drapes easily over curves, contours, and corners.
Resin Compatibility: Works with epoxy, polyester, and vinylester resins.

Includes

DB170 17oz Biaxial Fiberglass by the yard (no mat)

Features

Heavy-Duty Reinforcement: 17oz biaxial fiberglass stitched at ±45° for maximum strength.
No Mat Backing: Smooth finish, ideal when mat reinforcement isn’t required.
Marine-Grade Quality: Perfect for boatbuilding, composite layups, and repairs.
Bundle Options: Choose 1, 3, or 10 yard packs — no waste, just what you need.
High Conformability: Drapes easily over curves, contours, and corners.
Resin Compatibility: Works with epoxy, polyester, and vinylester resins.

View full details

Technical Specifications

E-Glass (stitched)Biaxial stitched, no matWorks with Epoxy, Polyester, Vinyl Ester

MaterialE-Glass (stitched)

Industry Style #DB 170

Weight17 oz/yd² (576 g/m²), no mat

Weave / ConstructionBiaxial stitched, no mat

Fiber Orientation±45° (double bias)

Thickness0.030"

Available Widths50"

Full Roll Lengthapprox. 50 yd

Resin-to-Reinforcement Ratio~1:1 by weight

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForBiaxial strength without mat (cleaner, lighter)

Compare Fabrics

Product	DB170 – 17oz Biaxial Fiberglass Cloth (No Mat)You're viewingfrom $14.45	1208 Biaxial Fiberglassfrom $16.45	1708 Biaxial Fiberglassfrom $12.95	1808 Biaxial Fiberglassfrom $14.45
Material	E-Glass (stitched)	E-Glass (stitched)	E-Glass (stitched)	E-Glass (stitched)
Style	DB 170	DBM 1208	DBM 1708	LTM 1808
Weight	17 oz/yd² (576 g/m²), no mat	12 oz/yd² (407 g/m²) + ¾ oz mat	17 oz/yd² (576 g/m²) + ¾ oz mat	18 oz/yd² (610 g/m²) + ¾ oz mat
Weave	Biaxial stitched, no mat	Biaxial stitched + CSM	Biaxial stitched + CSM	Stitched 0°/90° + CSM
Orientation	±45° (double bias)	±45° (double bias)	±45° (double bias)	0°/90° (stitched)
Thickness	0.030"	0.037"	0.044"	0.048"
Widths	50"	50"	50"	50"
Full Roll	approx. 50 yd	approx. 67 yd	approx. 52 yd	approx. 52 yd
Resin Ratio	~1:1 by weight	~1:1 by weight	~1.4:1 (resin:glass) by weight	~1:1 by weight
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Biaxial strength without mat (cleaner, lighter)	Stiff biaxial build with mat for quick wet-out	Workhorse marine biaxial (+ mat) for hull and transom	Heavier biaxial (+ mat) for structural build
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

What is biaxial fiberglass?

Biaxial fiberglass is a type of fiberglass fabric where the fibers are stitched together in two directions, typically at +45° and -45° angles or 0° and 90°. Unlike woven fiberglass, the fibers in biaxial cloth are not interlaced, but rather laid flat and stitched, which improves strength and drapability.

What is the difference between 1708 and 1808 biaxial fiberglass?

1708 is 17 oz per square yard of E-glass stitched at plus and minus 45 degrees with a 3/4 oz per square foot chopped strand mat backer. 1808 is 18 oz per square yard stitched at 0 and 90 degrees over the same 3/4 oz mat, and builds slightly thicker per ply, about 0.048 inch against 0.044 inch. Both run in polyester, vinyl ester or epoxy.

What is the benefit of using biaxial fiberglass over woven cloth?

Unlike woven cloth, biaxial fiberglass is stitched, not woven, so it lays flatter, wets out faster, and provides superior load distribution without crimped fibers.

Can I use DB170 biaxial fiberglass with epoxy resin?

Yes. DB170 is 17 oz biaxial with no chopped strand mat on the back. It wets out cleanly with epoxy and takes about half the resin of 1708. It also works with polyester and vinyl ester.

How much does DB170 biaxial fiberglass weigh?

DB170 is 17 oz per square yard of E-glass stitched at plus and minus 45 degrees, with no mat. Off the 50 in roll that is about 1.5 lb per linear yard, against about 2 lb for 1708.

How much resin do I need for DB170 biaxial fiberglass?

About 2 oz of resin per square foot per ply for a hand layup. A full yard off the 50 in roll is 12.5 sq ft, so plan on roughly 25 oz per yard, per ply, plus 15 to 20% for waste.

What types of resins are compatible with biaxial fiberglass?

Biaxial fabric works well with polyester, vinyl ester, and epoxy resins. Be sure to choose the right resin system for your project and material compatibility.
