1208 Biaxial Fiberglass

SKU:FG-B120850-01

$11.44 USD

Sale Sold out

Shipping calculated at checkout.

82 in stock

Width: 50"

50"

Length: 1 Yard

1 Yard 3 Yards 10 Yards Full Roll (approx. 67 yards)

Quantity

Earn 11 Boat Points Learn More
Ships Today if ordered before 4pm Learn More
Free Shipping on orders over $99 Learn More

This double bias fabric is made of continuous fibers positioned at +45° and -45°, providing strong reinforcement against shear and torsional loads. It is ideal for demanding applications like wind turbine blades and marine panels, offering excellent flexibility for complex shapes while maintaining high structural durability. The fabric weighs 12 oz and includes a 3/4 oz mat on the reverse side, with a width of 50″.

Specifications

Fabric Type: Biaxial stitched fiberglass with chopped strand mat (CSM)
Orientation: ±45° stitched layers
Total Weight: Approx. 18 oz/yd²
Construction: Stitch-bonded (no chemical binders)
Width Options: 50"
Resin Compatibility: Polyester, vinyl ester, and epoxy
Wet-Out Rate: Approx. 22–27 oz of resin per yd²
Roll Form: Available by the yard or in full rolls

Includes

1208 Biaxial Fiberglass by the yard

Features

High Strength: ±45° fiber orientation provides superior shear and torsional reinforcement
Mat-Backed: Built-in chopped strand mat improves bonding between layers
No Chemical Binder: Safe for use with epoxy — wets out quickly and evenly
Great Conformability: Drapes well over curves and contours
Heavy-Duty Laminate Build: High fabric weight builds structural bulk with fewer layers
Multipurpose Use: Ideal for stringers, transoms, bulkheads, and structural boat repairs

All-Resin Compatible: Performs well with epoxy, vinyl ester, and polyester resins

View full details

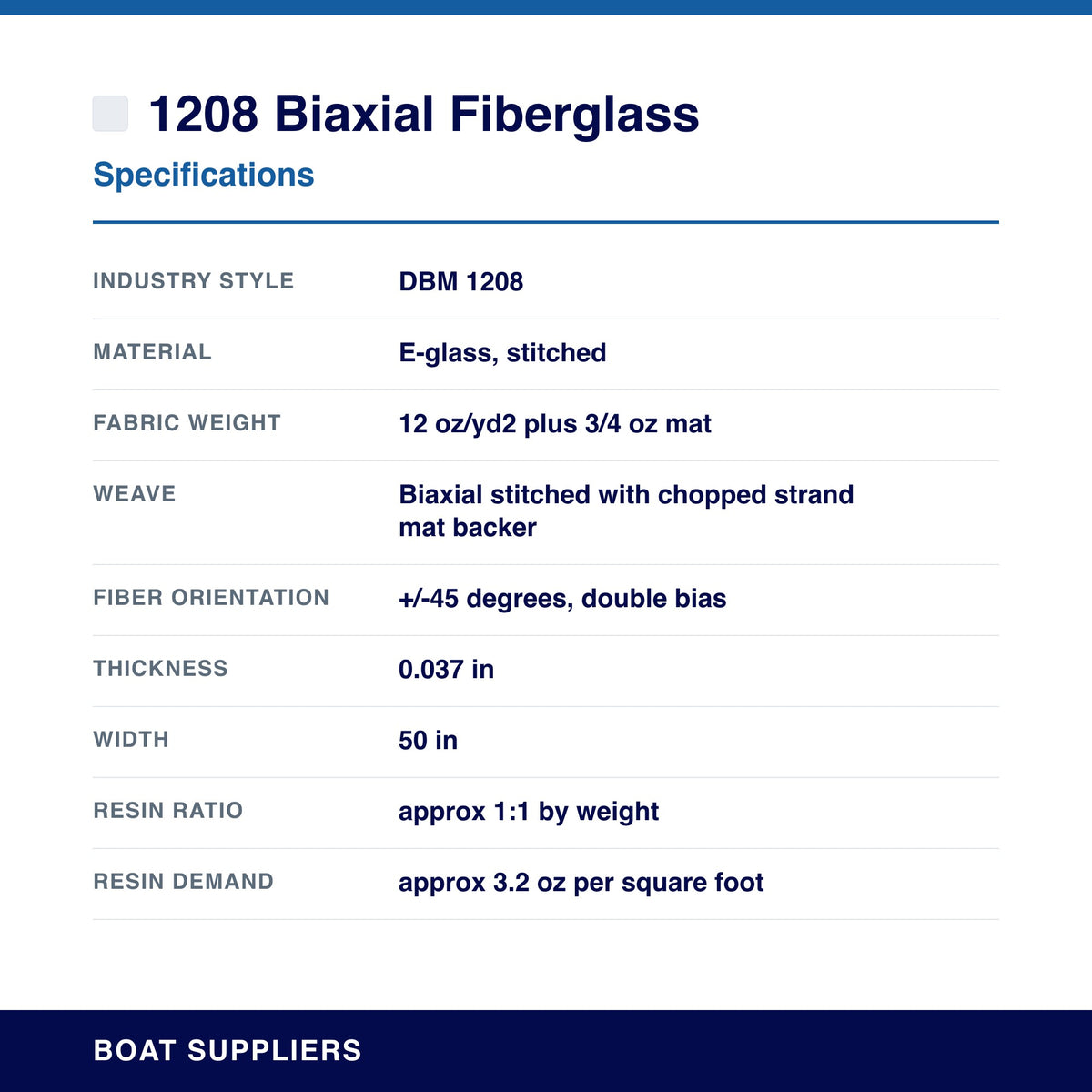

Technical Specifications

E-Glass (stitched)Biaxial stitched + CSMWorks with Epoxy, Polyester, Vinyl Ester

MaterialE-Glass (stitched)

Industry Style #DBM 1208

Weight12 oz/yd² (+ ¾ oz mat)

Weave / ConstructionBiaxial stitched + CSM

Fiber Orientation±45° (double bias)

Thickness0.037"

Available Widths50"

Full Roll Lengthapprox. 67 yd

Resin-to-Reinforcement Ratio~1:1 by weight

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForStiff biaxial build with mat for quick wet-out

Compare Fabrics

Product	1208 Biaxial FiberglassYou're viewingfrom $11.44	1708 Biaxial Fiberglassfrom $9.95	1808 Biaxial Fiberglassfrom $8.92	DB170 – 17oz Biaxial Fiberglass Cloth (No Mat)from $9.95
Material	E-Glass (stitched)	E-Glass (stitched)	E-Glass (stitched)	E-Glass (stitched)
Style	DBM 1208	DBM 1708	LTM 1808	DB 170
Weight	12 oz/yd² (+ ¾ oz mat)	17 oz/yd² (+ ¾ oz mat)	18 oz/yd² (+ ¾ oz mat)	17 oz/yd² (no mat)
Weave	Biaxial stitched + CSM	Biaxial stitched + CSM	Stitched 0°/90° + CSM	Biaxial stitched, no mat
Orientation	±45° (double bias)	±45° (double bias)	0°/90° (stitched)	±45° (double bias)
Thickness	0.037"	0.044"	0.048"	0.030"
Widths	50"	50"	50"	50"
Full Roll	approx. 67 yd	approx. 52 yd	approx. 52 yd	approx. 50 yd
Resin Ratio	~1:1 by weight	~1:1 by weight	~1:1 by weight	~1:1 by weight
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Stiff biaxial build with mat for quick wet-out	Workhorse marine biaxial (+ mat) for hull and transom	Heavier biaxial (+ mat) for structural build	Biaxial strength without mat (cleaner, lighter)
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

What is 1208 Biaxial Fiberglass?

1208 biaxial fiberglass is a stitched reinforcement fabric made of two layers of 12 oz fiberglass cloth oriented at ±45° angles, with a light ¾ oz chopped strand mat (CSM) backing. It offers excellent multidirectional strength and is compatible with polyester, vinyl ester, and epoxy resins.

What’s the difference between 1208 and 1708 fiberglass?

The main difference is weight. 1208 is lighter (approx. 18 oz total per square yard) compared to 1708 (approx. 25 oz total). 1208 is better for lighter structural needs or where ease of wet-out and flexibility are important, while 1708 offers more bulk and stiffness.
