8.7oz Fiberglass Cloth Tape (E-Glass)

8.7 oz0°/90°1", 1.5", 2", 3", 4", 6", 8" or 12" wide

1 8

Boat Suppliers

8.7oz Fiberglass Cloth Tape (E-Glass)

SKU:FG-C01Y

$0.89 USD

$0.89 USD ~~USD~~

$0.89 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 1"

1" 1.5" 2" 3" 4" 6" 8" 12"

Length: 1 Yard

1 Yard 3 Yards 10 Yards 25 Yards Full Roll (50 Yards)

Quantity

Key Specs

Weight: 8.7 oz/yd² (295 g/m²)
Fiber Angle: 0°/90° (woven)
Widths: 1 in, 1.5 in, 2 in, 3 in, 4 in, 6 in, 8 in, 12 in
Compatible Resins: Epoxy, Polyester, Vinyl Ester
Resin Needed: About 0 oz per yard at 1 in wide, waste included
Ships: Folded under 10 yd, rolled from 10 yd

Order several sizes at once width by length, one add to cart

Width	1 Yard	3 Yards	10 Yards	25 Yards	Full Roll (50 Yards)
1"	1" 1 Yard $0.89	1" 3 Yards $2.40	1" 10 Yards $7.70	1" 25 Yards $18.30	1" Full Roll (50 Yards) $24.95
1.5"	1.5" 1 Yard $0.99	1.5" 3 Yards $2.85	1.5" 10 Yards $9.15	1.5" 25 Yards $21.65	1.5" Full Roll (50 Yards) $29.95
2"	2" 1 Yard $1.09	2" 3 Yards $3.07	2" 10 Yards $9.95	2" 25 Yards $23.30	2" Full Roll (50 Yards) $31.95
3"	3" 1 Yard $1.49	3" 3 Yards $4.31	3" 10 Yards $13.95	3" 25 Yards $33.30	3" Full Roll (50 Yards) $44.95
4"	4" 1 Yard $1.95	4" 3 Yards $5.65	4" 10 Yards $17.95	4" 25 Yards $42.95	4" Full Roll (50 Yards) $54.95
6"	6" 1 Yard $2.59	6" 3 Yards $7.50	6" 10 Yards $23.95	6" 25 Yards $56.95	6" Full Roll (50 Yards) $84.95
8"	8" 1 Yard $3.49	8" 3 Yards $9.90	8" 10 Yards $31.65	8" 25 Yards $75	8" Full Roll (50 Yards) $124.95
12"	12" 1 Yard $4.49	12" 3 Yards $13.05	12" 10 Yards $42.20	12" 25 Yards $101.65	12" Full Roll (50 Yards) $179.95

Nothing selected yet

When the job is a strip, buy tape. Slitting 50 in cloth into bands leaves frayed edges that unravel as you wet them out; this 8.7 oz E-glass tape has woven edges that lie flat on a seam and hold together after you cut it.

What it is for

Seams and chines
Keel bands and repair bands

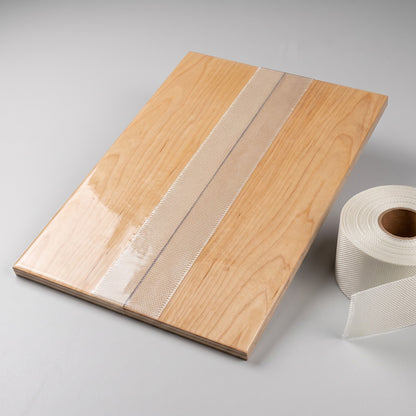

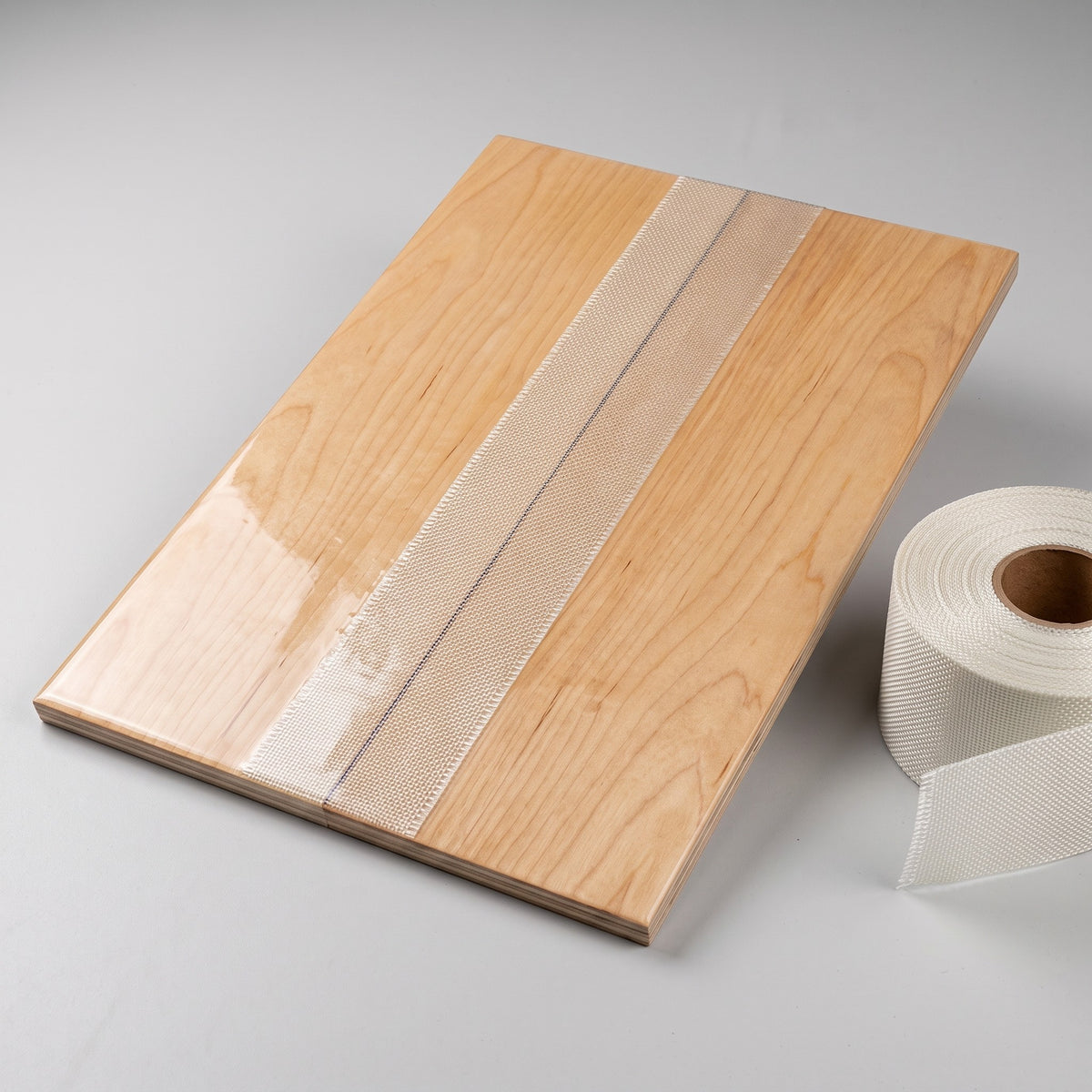

Binding plywood edges and tabbing

At 8.7 oz/yd² and 0.0107 in per ply it is the heavy cloth in the tape rack, so each ply builds more than 4 oz or 6 oz cloth would, and it wets out fairly transparent under epoxy. It runs about 1:1 resin to glass by weight, roughly 1 oz of resin per square foot. Where a tab needs structural bulk and a mat backer, step up to 1708 biaxial tape.

Widths and lengths

1, 1.5, 2, 3, 4 and 6 in wide, by the yard or on a 50 yard roll, for epoxy, polyester or vinyl ester. Wider tape is in fiberglass cloth tape, fiberglass cloth vs tape covers when each one makes sense, and the fiberglass cloth weight chart compares it with the other weights.

Specifications

Ideal for:

Seams, chines, keel bands, plywood edges and repair bands.

Size Options:

1", 1.5", 2", 3", 4", 6", 8" and 12" wide, by the yard or 50 yard roll.

Compatible with:

Epoxy, polyester and vinyl ester resins.

8.7 oz/yd² E-glass plain weave with woven edges, 0.0107" thick.

View full details

Technical Specifications

E-GlassPlain weave, woven edgesWorks with Epoxy, Polyester, Vinyl EsterWoven in the USA

MaterialE-Glass

Weight8.7 oz/yd² (295 g/m²)

Weave / ConstructionPlain weave, woven edges

Fiber Orientation0°/90° (woven)

Thickness0.0107"

Available Widths1", 1.5", 2", 3", 4", 6", 8", 12"

Full Roll Length50 yd

Resin-to-Reinforcement Ratio~1:1 by weight

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForSeams, chines, edges and repair bands

Compare Fabrics

Product	8.7oz Fiberglass Cloth Tape (E-Glass)You're viewingfrom $0.89	12oz Warp Unidirectional Fiberglass Tape (E-Glass)from $2.49	1708 Biaxial Fiberglass Tapefrom $3.65	1.5oz Fiberglass Mat Tapefrom $3.25
Material	E-Glass	E-Glass	E-Glass (stitched)	E-Glass (chopped strand)
Style	—	—	DBM 1708	—
Weight	8.7 oz/yd² (295 g/m²)	12 oz/yd² (407 g/m²)	17 oz/yd² (576 g/m²) + ¾ oz mat	1.5 oz/ft² (13.5 oz/yd², 458 g/m²)
Weave	Plain weave, woven edges	Warp unidirectional, woven edges	Biaxial stitched + CSM	Chopped Strand Mat
Orientation	0°/90° (woven)	75% warp (0°) / 25% fill (90°)	±45° (double bias)	Random (chopped)
Thickness	0.0107"	0.018"	0.044"	0.045"
Widths	1", 1.5", 2", 3", 4", 6", 8", 12"	3", 4", 6", 12"	6", 12"	4", 6", 12"
Full Roll	50 yd	25 yd, or full roll 153 yd (103 yd on 12")	approx. 95 yd	approx. 80 to 110 yd
Resin Ratio	~1:1 by weight	~1 pint per 12 yd of 3" tape	~1.4:1 (resin:glass) by weight	~2.4:1 (resin:glass) by weight
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Polyester, Vinyl Ester
Best For	Seams, chines, edges and repair bands	Stringers, spars, rails and edge wraps	Tabbing stringers, bulkheads and hull-to-deck seams	Tabbing bulkheads, seams, chines and inside corners
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

Can epoxy resin be used with fiberglass cloth?

Yes, epoxy resin is ideal for wetting out fiberglass cloth and other reinforcements like carbon fiber and Kevlar. It saturates the fabric well and cures into a strong, durable laminate.

Can fiberglass cloth be used on wood or metal?

Yes. With the right resin, fiberglass cloth bonds to wood, metal, foam, and cured fiberglass. Use epoxy for wood and metal, since it grips those substrates far better than polyester. Prep matters more than the cloth: sand to clean, bare material, remove all dust and oil, and wet out the surface before laying the cloth down.

What does the weight (oz) of fiberglass cloth mean?

The weight refers to ounces per square yard. Lighter cloth (e.g., 4oz) is more flexible and used for fine finishing; heavier cloth (e.g., 10oz) provides more strength and bulk.

How do I cut fiberglass cloth?

Use sharp scissors or a rotary cutter on a clean surface. To reduce fraying, run masking tape along the cut line and cut through the middle of the tape, and handle cut edges gently. Keep the cloth dry before layup, since moisture on the glass weakens the resin bond.

What is fiberglass cloth used for?

Fiberglass cloth is used to reinforce composite materials in applications like boat building, surfboard repairs, auto bodywork, and structural laminates. It’s combined with resin to form a strong, lightweight composite.

What’s the difference between fiberglass cloth and chopped mat?

Fiberglass cloth is woven for strength in specific directions, while chopped strand mat is made of randomly oriented fibers and is better for building bulk.
