12oz Warp Unidirectional Fiberglass Tape (E-Glass)
12 oz75% warp / 25% fill3", 4", 6" or 12" wide
12oz Warp Unidirectional Fiberglass Tape (E-Glass)
Share
12 oz75% warp / 25% fill3", 4", 6" or 12" wide
SKU:FG-WU03-01
In stock
0.8 sq ft·needs about 1 oz of resin
Couldn't load pickup availability
Key Specs
- Weight
- 12 oz/yd² (407 g/m²)
- Fiber Angle
- 75% warp (0°) / 25% fill (90°)
- Widths
- 3 in, 4 in, 6 in, 12 in
- Compatible Resins
- Epoxy, Polyester, Vinyl Ester
- Resin Needed
- About 1 oz per yard at 3 in wide, waste included
- Ships
- Folded under 10 yd, rolled from 10 yd
Order several sizes at once width by length, one add to cart
| Width | 1 Yard | 3 Yards | 5 Yards | 10 Yard Roll | 25 Yard Roll | Full Roll (153 Yards) | Full Roll (103 Yards) |
|---|---|---|---|---|---|---|---|
| 3" | — | ||||||
| 4" | — | — | |||||
| 6" | — | ||||||
| 12" | — |

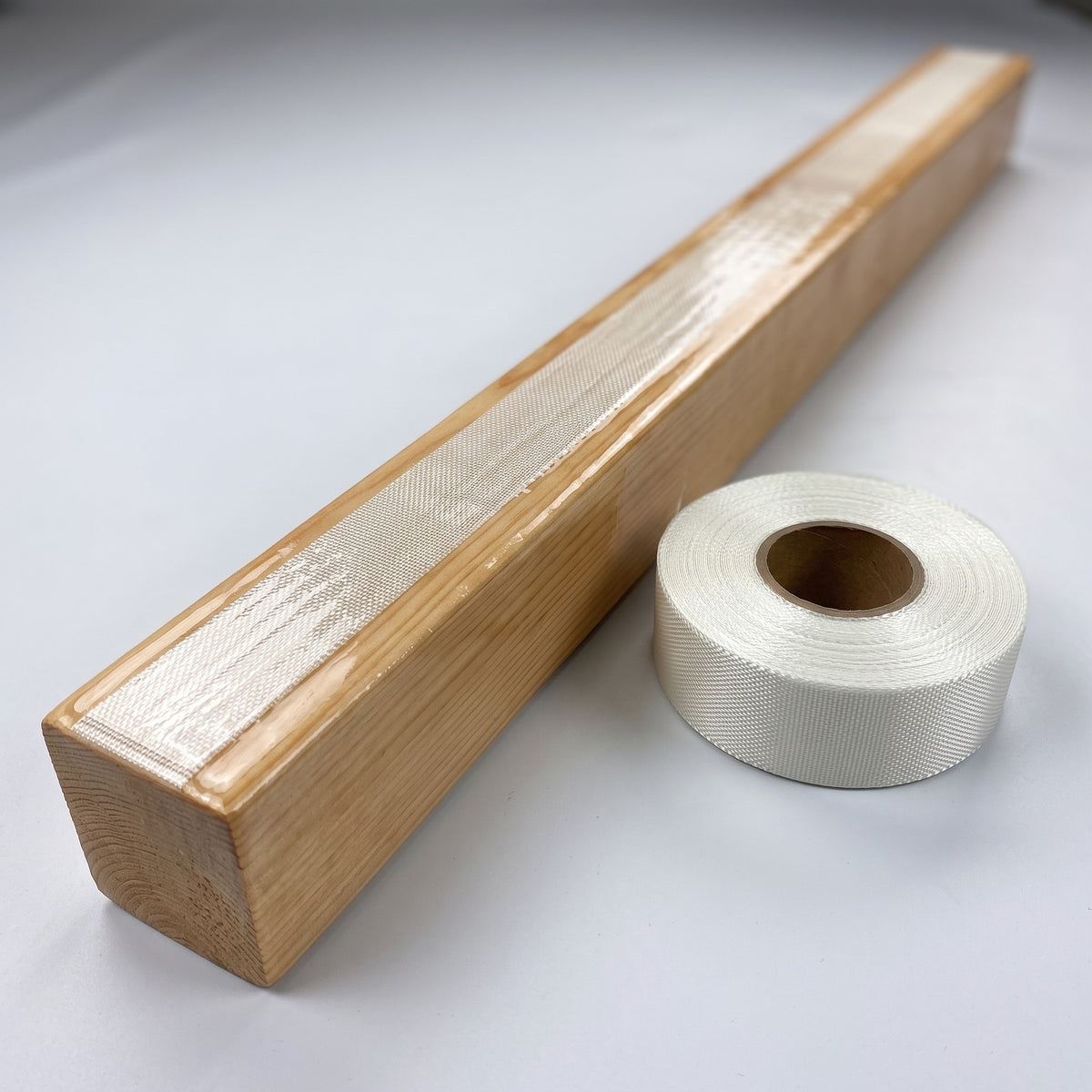

Warp unidirectional fiberglass tape puts 75% of its E-glass in the warp (0 degree) direction and 25% in the fill (90 degree), so nearly all of the strength runs the length of the tape. Reach for it where you need stiffness and tensile strength in one direction: stringers, spars, hull-to-deck joints, gunwales, transom edges, paddleboard and surfboard rails, and any longitudinal reinforcement that has to resist bending.

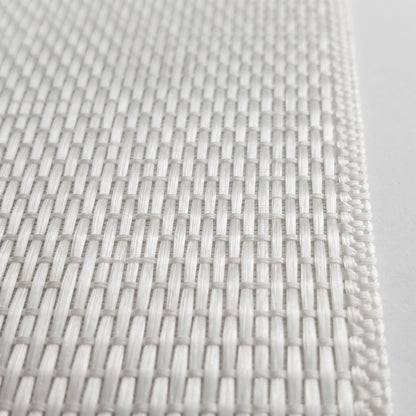

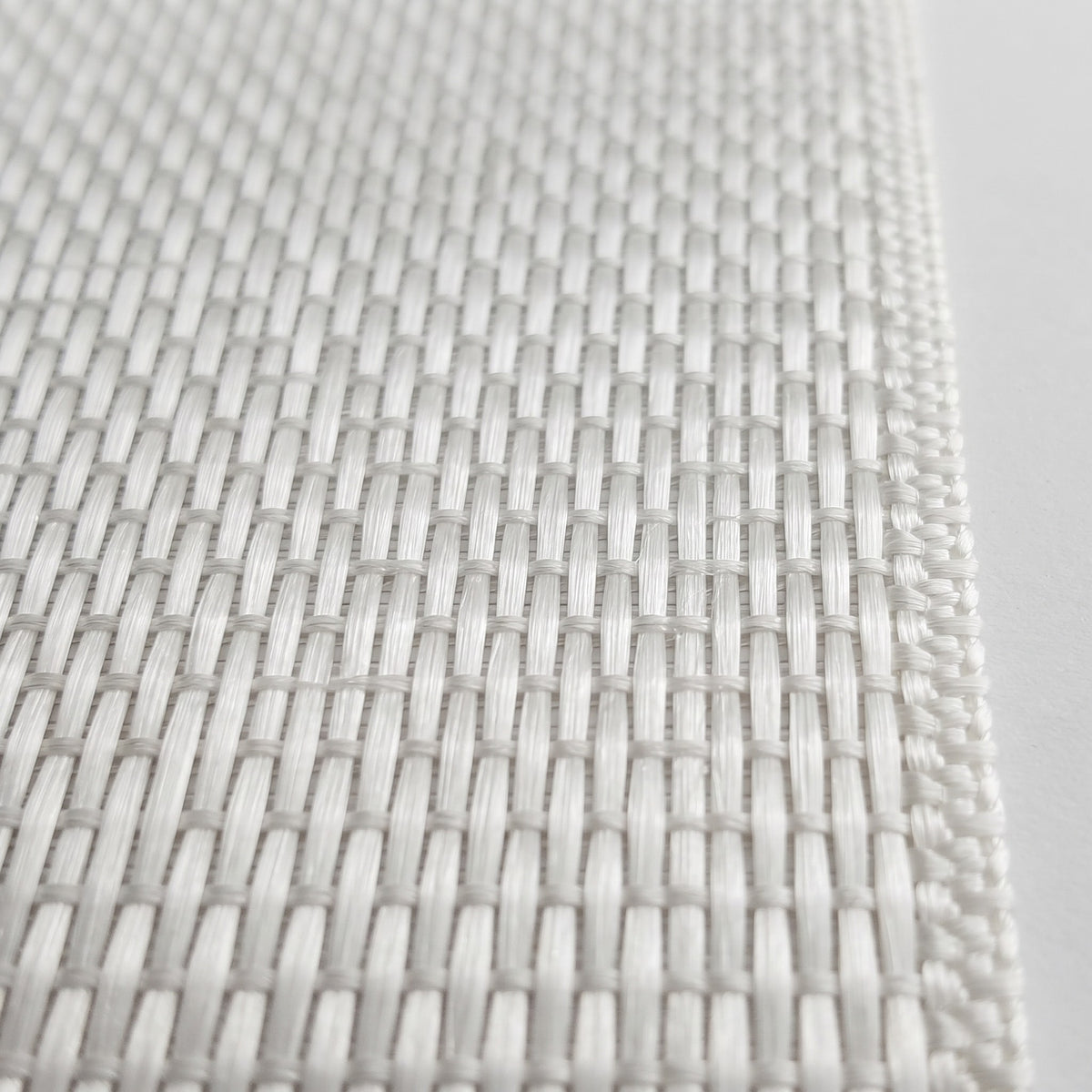

This is a 12 oz per square yard woven tape, 0.018 inch thick, with clean woven edges that will not unravel as you cut and lay it. It wets out readily with epoxy, polyester, and vinyl ester resin.
Specifications
- Weight: 12 oz/yd²
- Fiber orientation: 75% warp (0°) / 25% fill (90°)
- Material: E-glass
- Thickness: 0.018 inch
- Available widths: 3 inch, 4 inch, 6 inch, 12 inch
- Resin compatibility: epoxy, polyester, vinyl ester

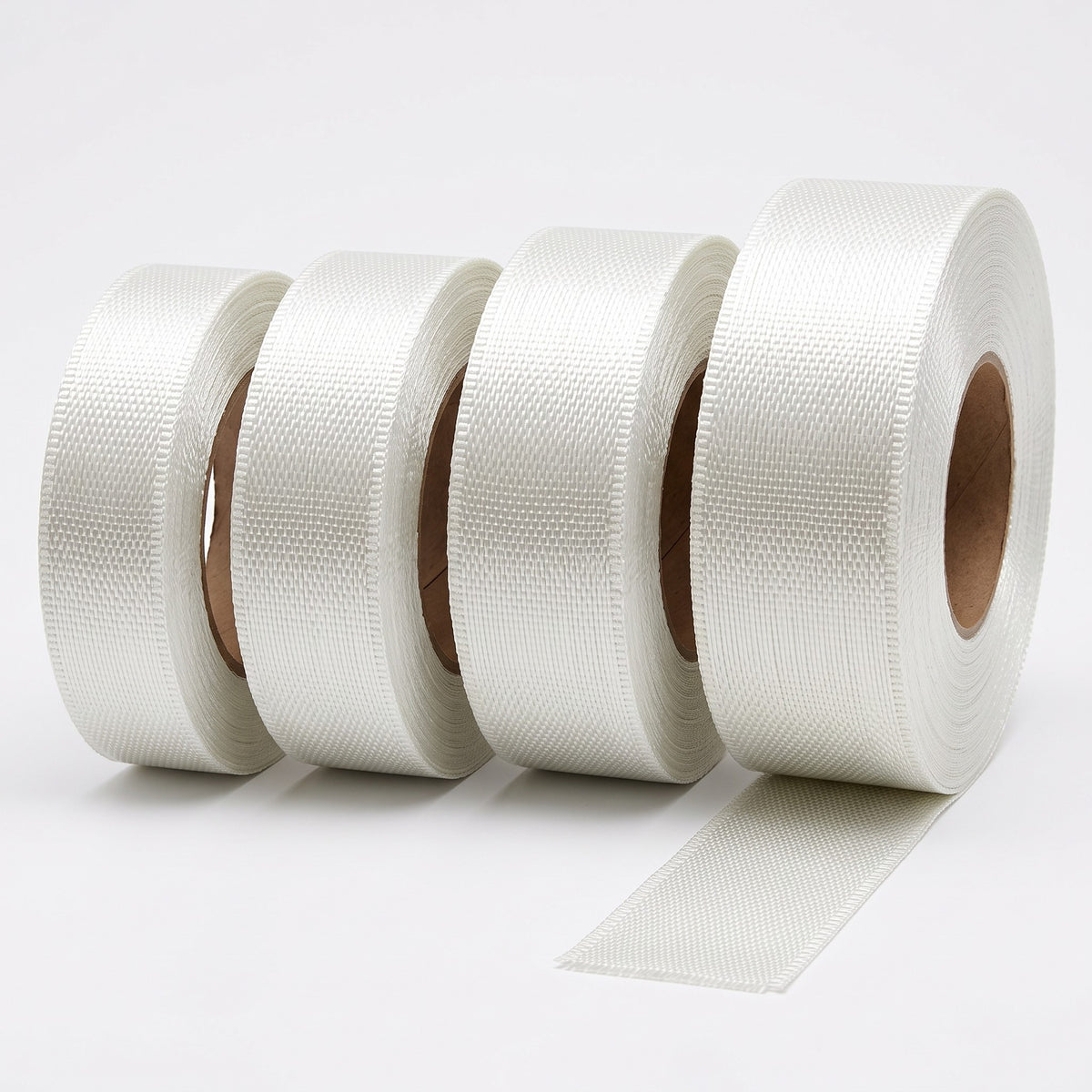

Sizes
- 1 Yard: cut length for repairs, tabbing, and sampling
- 25 Yard Roll: mid-size builds and repeat jobs
- Full Roll: 153 yards for the 3, 4, and 6 inch widths; 103 yards for the 12 inch width
Resin usage (approximate)
- 3 inch width: 1 pint of resin per 12 yards of tape
- 4 inch width: 1 pint per 10 yards
- 6 inch width: 1 pint per 6 yards
- 12 inch width: 1 pint per 3 yards
Specifications
Includes
Features
Technical Specifications
Compare Fabrics
| Product |  12oz Warp Unidirectional Fiberglass Tape (E-Glass)You're viewingfrom $2.49
|  8.7oz Fiberglass Cloth Tape (E-Glass)from $0.89
|  1708 Biaxial Fiberglass Tapefrom $3.65
|  1.5oz Fiberglass Mat Tapefrom $3.25
|
|---|---|---|---|---|
| Material | E-Glass | E-Glass | E-Glass (stitched) | E-Glass (chopped strand) |
| Style | — | — | DBM 1708 | — |
| Weight | 12 oz/yd² (407 g/m²) | 8.7 oz/yd² (295 g/m²) | 17 oz/yd² (576 g/m²) + ¾ oz mat | 1.5 oz/ft² (13.5 oz/yd², 458 g/m²) |
| Weave | Warp unidirectional, woven edges | Plain weave, woven edges | Biaxial stitched + CSM | Chopped Strand Mat |
| Orientation | 75% warp (0°) / 25% fill (90°) | 0°/90° (woven) | ±45° (double bias) | Random (chopped) |
| Thickness | 0.018" | 0.0107" | 0.044" | 0.045" |
| Widths | 3", 4", 6", 12" | 1", 1.5", 2", 3", 4", 6", 8", 12" | 6", 12" | 4", 6", 12" |
| Full Roll | 25 yd, or full roll 153 yd (103 yd on 12") | 50 yd | approx. 95 yd | approx. 80 to 110 yd |
| Resin Ratio | ~1 pint per 12 yd of 3" tape | ~1:1 by weight | ~1.4:1 (resin:glass) by weight | ~2.4:1 (resin:glass) by weight |
| Resins | Epoxy, Polyester, Vinyl Ester | Epoxy, Polyester, Vinyl Ester | Epoxy, Polyester, Vinyl Ester | Polyester, Vinyl Ester |
| Best For | Stringers, spars, rails and edge wraps | Seams, chines, edges and repair bands | Tabbing stringers, bulkheads and hull-to-deck seams | Tabbing bulkheads, seams, chines and inside corners |
| View | View | View |
