5.7oz 3K Plain Weave Carbon Fiber Fabric - 1st Quality

SKU:FG-CARB5750-01

$56.95 USD

$56.95 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 50"

50"

Length: 1 Yard

1 Yard 3 Yard Roll 5 Yard Roll 10 Yard Roll 25 Yard Roll Full Roll (100 Yards)

Quantity

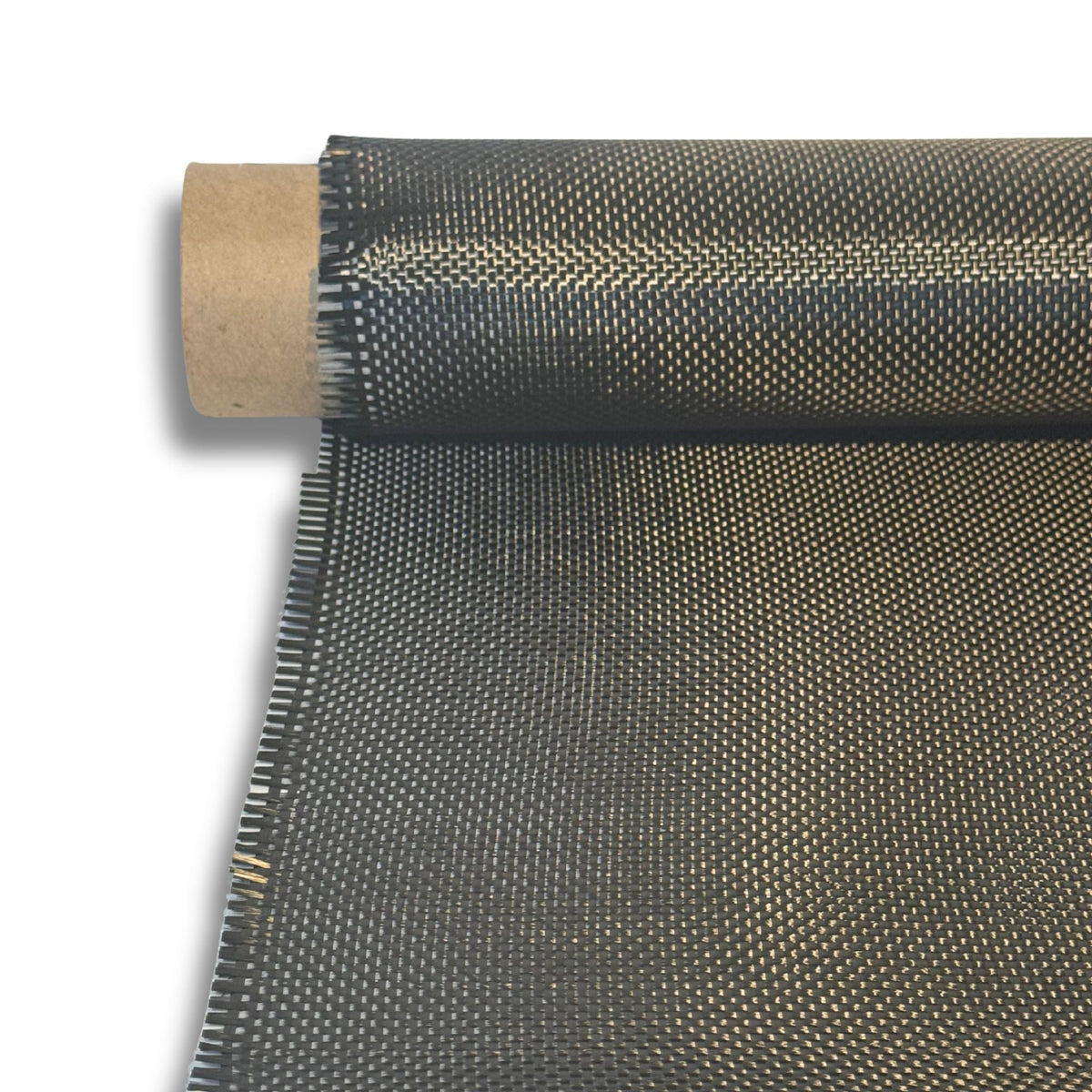

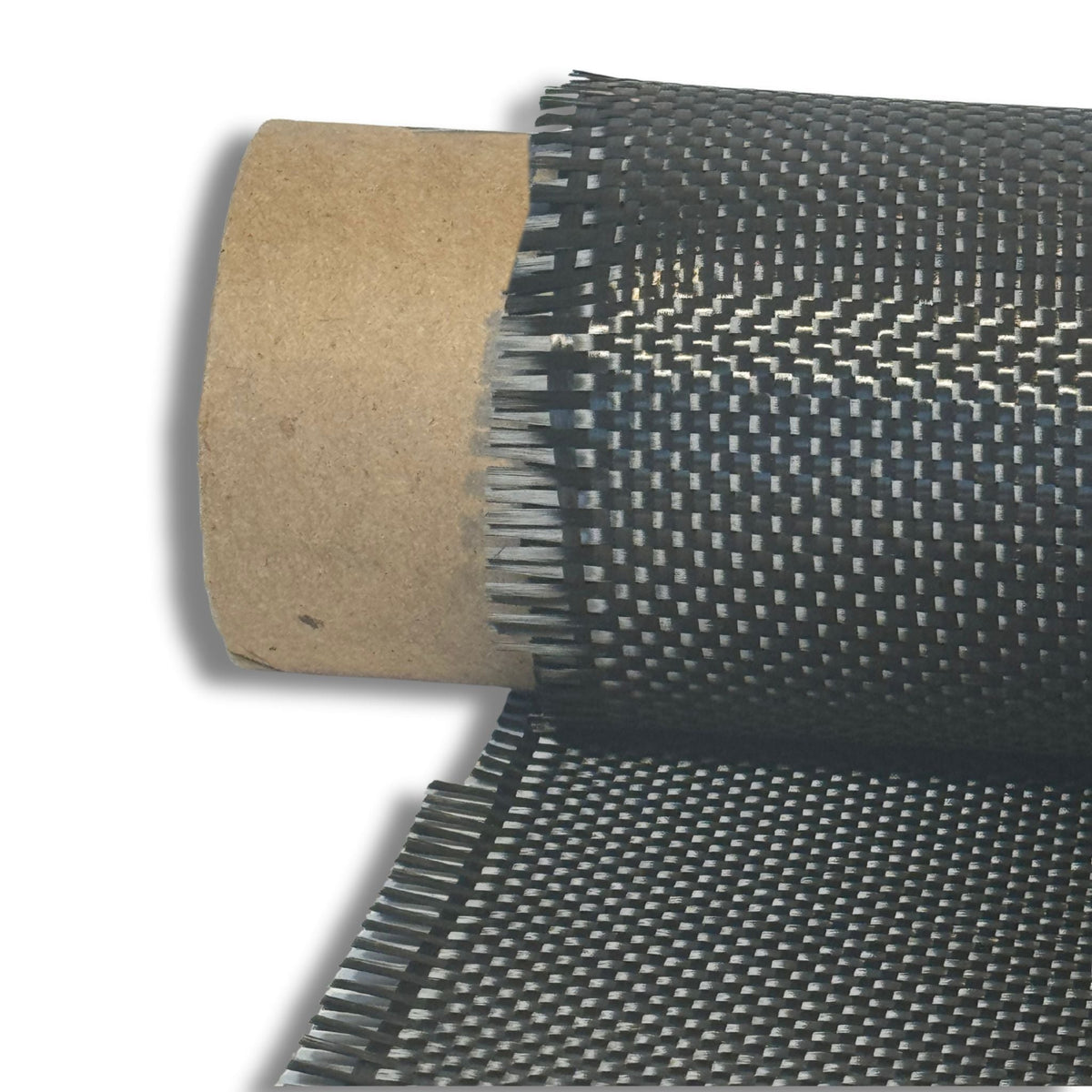

The baseline carbon: 5.7 oz/yd² woven from 3K tow in a plain over-under weave, 50 in wide, first quality. Plain weave holds its shape on the bench and on the part, which is why it is the pick for flat panels, tubes and any skin where a uniform, tight pattern matters more than drape over a compound curve.

5.7 oz/yd², 3K tow, 0/90 plain weave
50 in wide, first quality (no seconds, no off-spec)
Runs best in epoxy for cosmetic and structural carbon work
Holds its weave when handled, so the pattern stays straight on the part
Cut to 1, 3 and 10 yards, or take the full roll (100 yards)

If the part has deep curves, the 5.7 oz 2x2 twill in the same weight drapes better with the same fiber. For a bolder pattern, go up to the 8.3 oz 4x4 twill.

Specifications

Fiber Type: High-strength carbon fiber (3K tow)
Weave Style: Plain weave
Fabric Weight: 5.7 oz/yd² (193 gsm)
Width: 50″ (1.27 m) standard
Thickness: ~0.010″ (0.25 mm)
Tensile Strength: ~500 KSI
Tensile Modulus: ~33 MSI
Density: 1.8 g/cm³
Finish: Sizing compatible with epoxy, vinyl ester, and polyester resins

Roll Length: Sold by the linear yard (continuous when possible)

Includes

5.7oz Plain Weave Carbon Fiber by the linear yard

Features

Lightweight yet exceptionally strong
High stiffness-to-weight ratio for structural applications
Plain weave pattern offers dimensional stability and easy handling
Excellent fatigue resistance for long-lasting performance
Corrosion-resistant and impervious to moisture
Compatible with a wide range of resins (epoxy, vinyl ester, polyester)
Ideal for cosmetic applications—distinct carbon fiber aesthetic
Easy to cut, drape, and laminate for complex shapes

View full details

Technical Specifications

Carbon FiberPlain weaveWorks with Epoxy, Polyester, Vinyl Ester

MaterialCarbon Fiber

Weight5.7 oz/yd² (193 g/m²)

Weave / ConstructionPlain weave

Fiber Orientation0°/90° (woven)

Tow Size3K

Thickness0.010"

Available Widths50"

Full Roll Length100 yd

Thread Count12.5 × 12.5

Resin-to-Reinforcement Ratio~50:50 by weight (≈1:1)

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForCosmetic and structural carbon skins (uniform look)

Compare Fabrics

Product	5.7oz 3K Plain Weave Carbon Fiber Fabric - 1st QualityYou're viewingfrom $56.95	5.7oz 3K 2x2 Twill Weave Carbon Fiber Fabric - 1st Qualityfrom $56.95	6oz 3K 2x2 Twill Carbon Fiber Fabric – Stabilizedfrom $60.95	5.7oz 3K 2x2 Twill Carbon Fiber Fabric - Discount Short Rollfrom $39.50
Material	Carbon Fiber	Carbon Fiber	Carbon Fiber	Carbon Fiber
Weight	5.7 oz/yd² (193 g/m²)	5.7 oz/yd² (193 g/m²)	6 oz/yd² (203 g/m²)	5.7 oz/yd² (193 g/m²)
Weave	Plain weave	2x2 Twill	2x2 Twill (veil-stabilized)	2x2 Twill
Orientation	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)
Tow Size	3K	3K	3K	3K
Thickness	0.010"	0.010"	0.011"	0.010"
Widths	50"	50", 60"	50"	50"
Full Roll	100 yd	100 yd	100 yd	100 yd
Thread Count	12.5 × 12.5	12 × 12	13 × 13	—
Resin Ratio	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)	~50:50 by weight (≈1:1)
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Cosmetic and structural carbon skins (uniform look)	Cosmetic carbon parts (classic 2x2 twill look)	Easy-handling cosmetic twill (veil-stabilized)	Cosmetic carbon parts (classic 2x2 twill look)
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

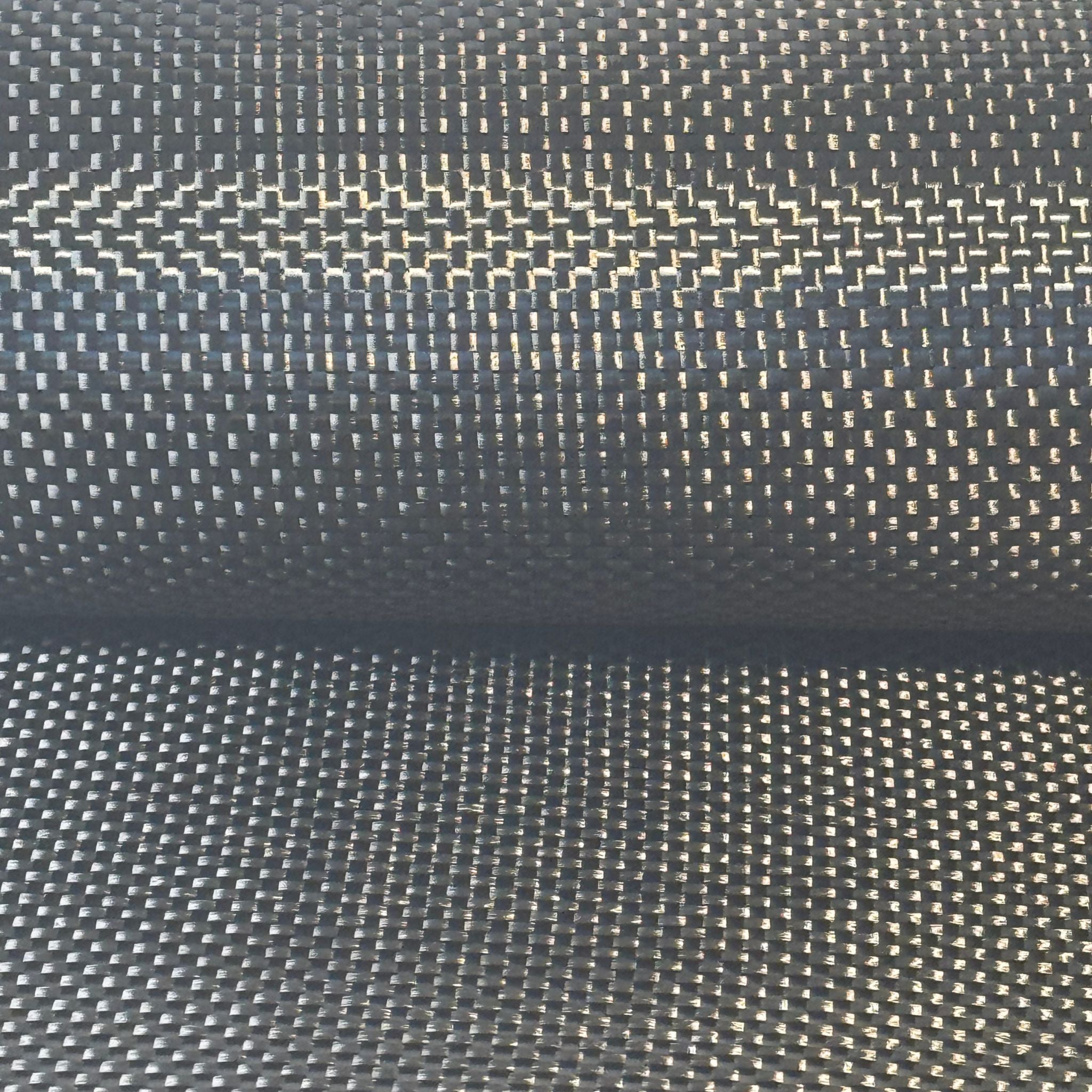

Close-up of 5.7oz 3K plain weave carbon fiber fabric showing the tight, even over-under checkerboard tow pattern.

What is carbon fiber?

Carbon fiber is a high-strength, lightweight material made from thin strands of carbon. It’s used in aerospace, marine, automotive, sporting goods, and composite construction for its superior strength-to-weight ratio.

Can carbon fiber be used with epoxy resin?

Yes, epoxy resin is the most commonly used resin with carbon fiber, providing a strong, durable bond for structural and cosmetic applications.

How strong is carbon fiber fabric?

Carbon fiber has a tensile strength around 500,000 psi and is roughly five times stronger than steel by weight, which is why it is used where stiffness and low weight both matter. Real-world laminate strength depends on resin, fiber orientation, and layup quality, so a strong carbon panel comes from good wet-out and proper ply orientation, not the fabric alone.
