24oz Woven Roving

24 oz0°/90°50" wide

1 2

Boat Suppliers

24oz Woven Roving

SKU:FG-ROV2450

$22.39 USD

$22.39 USD ~~$19.44 USD~~

$22.39 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 50"

50"

Length: 1 Yard

1 Yard 3 Yard Pack 5 Yard Pack 10 Yard Roll Full Roll (Approx. 52 Yards)

Quantity

Key Specs

Weight: 24 oz/yd² (814 g/m²)
Fiber Angle: 0°/90° (woven)
Widths: 50 in
Compatible Resins: Epoxy, Polyester, Vinyl Ester
Resin Needed: About 1.4 qt per yard, waste included
Ships: Folded under 10 yd, rolled from 10 yd

24 oz woven roving is for putting the most glass down per ply on hull bottoms, transoms and heavy structural repairs. Nothing else in our fabric line adds more bulk in a single layer, and alternated with chopped strand mat it reaches laminate thickness in fewer plies.

Building the stack

Give every ply of roving a ply of mat between it and the next one. Roving bonds poorly to roving; the mat fills the gaps between the coarse bundles and ties the stack together. That mat and roving schedule is the traditional build for hull bottoms and transom cores, and it works as a backing laminate on molds.

Planning resin and wet-out

Figure on about 1:1 resin to glass by weight, which works out to roughly 2.79 oz of resin per square foot of 24 oz roving. The open weave holds air, so roll each ply firmly before the next one goes on.

E-glass woven roving, 24 oz/yd², white
Woven 0/90, thread count about 5 x 4
50 in width
1 yard, 3 yard pack, 5 yard pack, 10 yard roll, or a full roll of about 52 yards
Epoxy, polyester and vinyl ester compatible

Check how many plies of roving and mat it takes to reach your target thickness in the fiberglass laminate thickness chart.

Specifications

Ideal For:

Heavy bulk build between mat layers
Hulls, stringers and transoms

Weight:

24 oz/yd² (814 g/m²)

Widths:

Available in a 50 in width.

Weave:

Woven Roving

Compatible With:

Epoxy, polyester and vinyl ester resins.

View full details

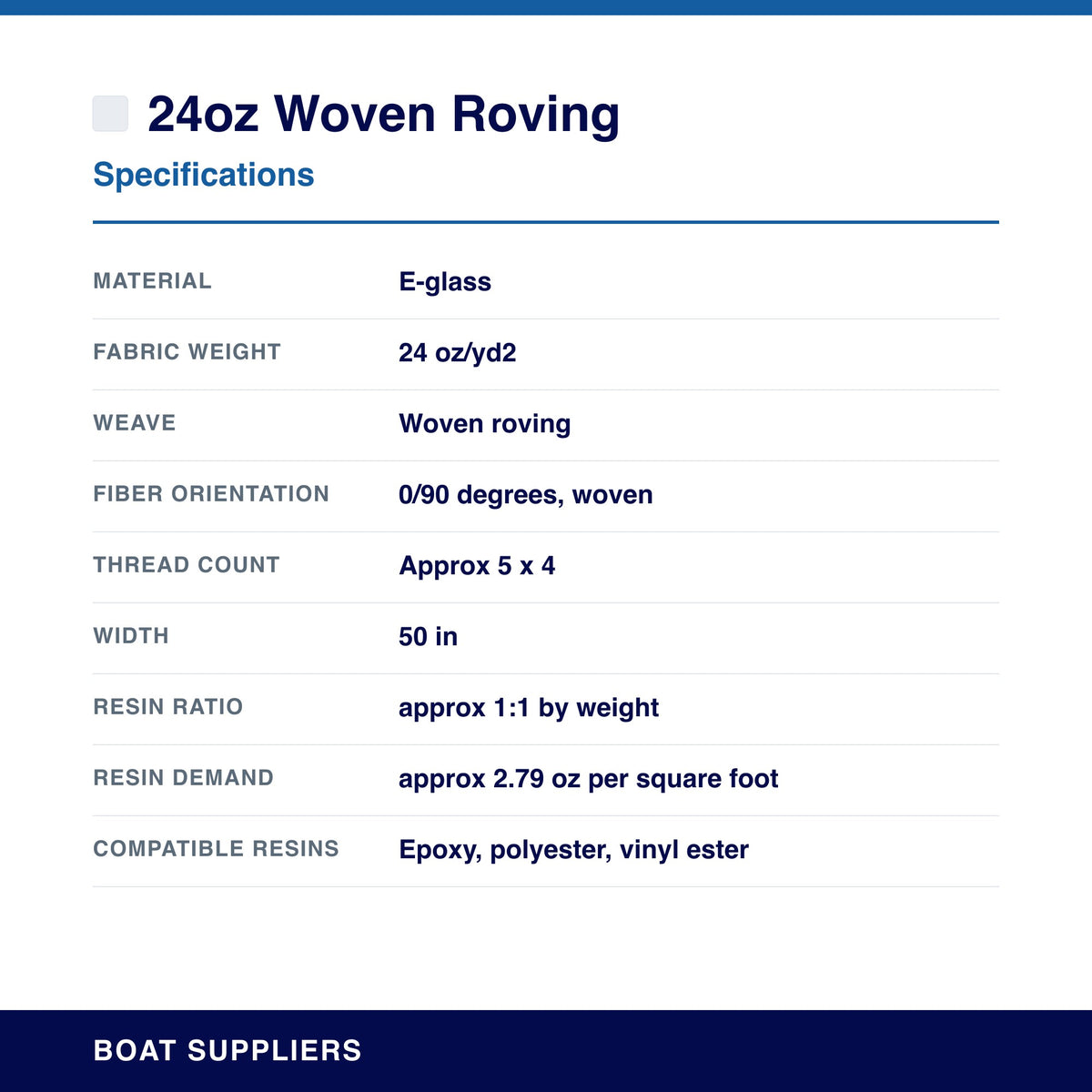

Technical Specifications

E-GlassWoven RovingWorks with Epoxy, Polyester, Vinyl Ester

MaterialE-Glass

Weight24 oz/yd² (814 g/m²)

Weave / ConstructionWoven Roving

Fiber Orientation0°/90° (woven)

Thickness0.040"

Available Widths50"

Full Roll Lengthapprox. 52 yd

Thread Count~5 × 4

Resin-to-Reinforcement Ratio~1:1 by weight

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForHeavy bulk build between mat layers

Compare Fabrics

Product	24oz Woven RovingYou're viewingfrom $22.39	18oz Fiberglass E Clothfrom $27.45	40oz Fiberglass E Clothfrom $47.95	18oz Woven Rovingfrom $19.44
Material	E-Glass	E-Glass	E-Glass	E-Glass
Style	—	Style 7544	—	—
Weight	24 oz/yd² (814 g/m²)	approx. 17.8 oz/yd² (604 g/m²), sold as 18 oz	40 oz/yd² (1356 g/m²), nominal	18 oz/yd² (610 g/m²)
Weave	Woven Roving	Plain weave (2-end cloth)	Double plain weave	Woven Roving
Orientation	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)
Thickness	0.040"	0.0207"	0.0386"	0.030"
Widths	50"	50"	38"	50"
Full Roll	approx. 52 yd	125 yd	50 yd	125 yd
Thread Count	~5 × 4	28 × 14	—	~5 × 4
Tensile Strength	—	≥750 / ≥750 lb/in (warp / fill, greige)	—	—
Resin Ratio	~1:1 by weight	~1:1 by weight	~1:1 by weight	~1:1 by weight
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Heavy bulk build between mat layers	Heavy structural reinforcement	Very heavy structural build	Fast bulk build between mat layers
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

Is woven roving flexible?

It’s relatively stiff compared to other fiberglass fabrics, but it can still conform to gradual curves with proper wet-out and pressure.

Can I layer woven roving with other fiberglass materials?

Yes, and you usually should. Woven roving builds thickness fast but has a coarse weave, so it is almost always alternated with chopped strand mat: the mat fills the weave and ties the layers together for a stronger, void-free laminate. A common schedule is mat, roving, mat. Finish with cloth or mat for a smoother surface.

What resin should I use with woven roving?

Woven roving works well with polyester, vinyl ester, and epoxy resins. Polyester is common in boatbuilding, while epoxy is preferred for repairs and higher strength applications.

What is woven roving fiberglass?

Woven roving is a heavy-duty fiberglass fabric made from continuous strands woven into a coarse, crisscross pattern. It provides high tensile strength and is ideal for structural laminates in marine and industrial applications.

How is woven roving different from fiberglass cloth?

Woven roving is much thicker and heavier than standard fiberglass cloth. It’s used for strength and bulk, while cloth is typically used for finishing or lightweight laminates.
