1708 Fiberglass & Resin Kit - 10 Yards 50" Wide + 5 Gallons Polyester Resin
1708 Fiberglass & Resin Kit - 10 Yards 50" Wide + 5 Gallons Polyester Resin
Share
SKU:SK-170810P
Hurry, only 3 left in stock
Couldn't load pickup availability
Ten yards of 1708 biaxial, the workhorse structural fabric of every boatyard, with five full gallons of marine-grade polyester layup resin to wet all of it out. Transoms, stringers, hull sides, and repairs that need real strength, bought once at a project price.

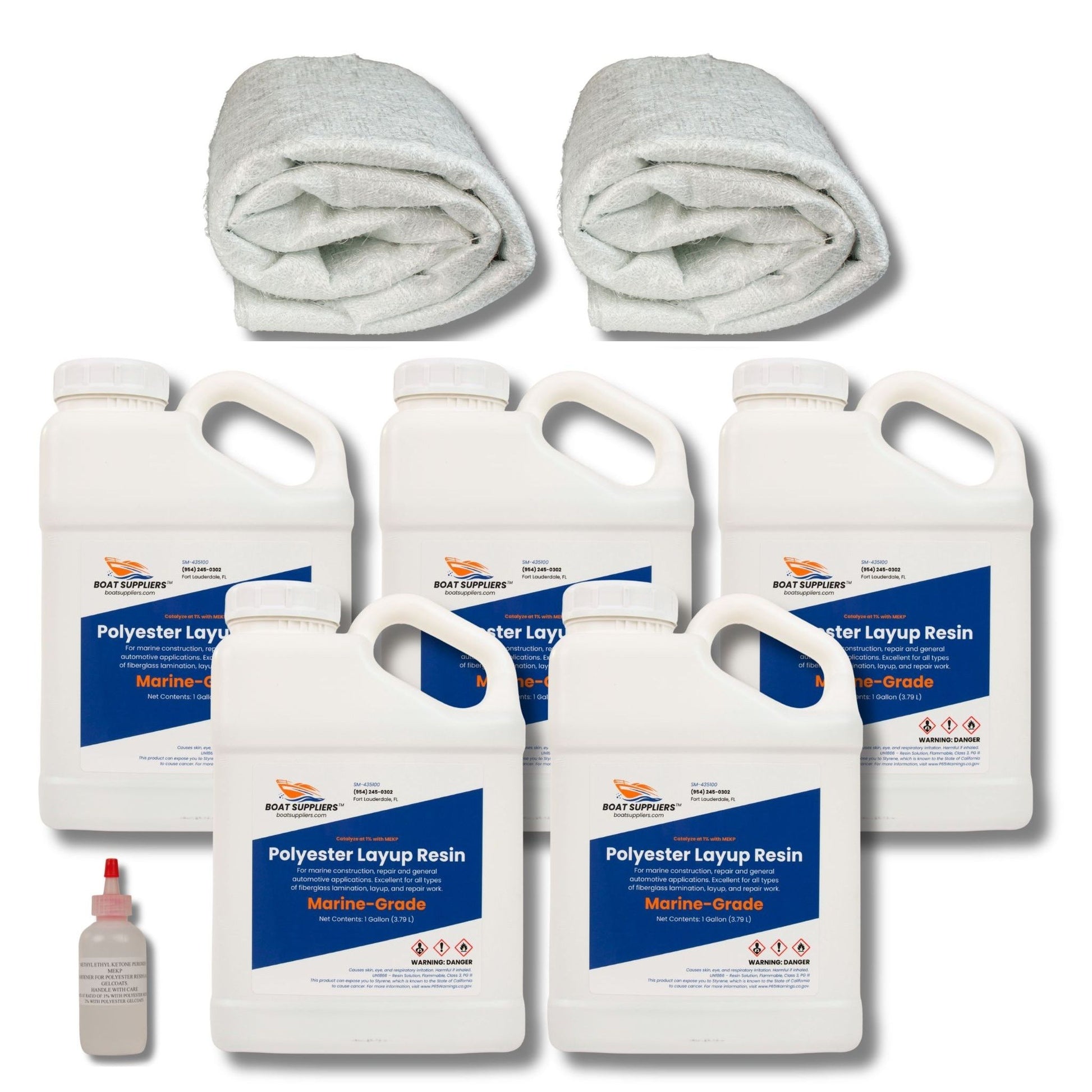

What is in the kit:
- 10 yards x 50" of 1708 biaxial fiberglass, two 5 yard folded packs (17oz +/-45 stitched biaxial with 3/4oz mat backing, about 125 sq ft)
- 5 x 1 Gallon of marine-grade polyester layup resin
- MEKP hardener to catalyze the full five gallons at 1%
Coverage: 1708 is a heavy fabric. At standard hand-layup ratios, 125 sq ft takes roughly 4.7 gallons including normal waste, so five gallons lays up every yard in a single layer. Doing heavy multi-layer buildup? Add resin by the gallon.
Want epoxy instead? See the 10 yard 1708 kit with 6 gallons of epoxy and slow hardener. Smaller job? The 5 yard 1708 and resin kit or the boat building kit with mat and 1708.
Specifications
Specifications
How to use this kit
Ten yards of 1708 biaxial with five gallons of marine polyester resin. Every kit ships with this same sheet printed and in the box.
What is in the kit
- 10 yd 1708 biaxial fiberglass, 50 in widetwo 5 yard folded packs, about 125 sq ft
- 5 gal Marine-grade polyester layup resin5 x 1 gallon
- 1 MEKP hardenercatalyzes the full five gallons at 1 percent
You supply: a laminating roller, chip brushes, mixing cups and sticks, gloves, acetone, a respirator, a grinder for prep, and fumed silica for fillets.
Mixing MEKP (1.5 percent)
| 8 oz mix | 3.6 mL MEKP (about 3/4 tsp) |
| 16 oz mix | 7 mL MEKP (about 1.5 tsp) |
| 32 oz mix | 14 mL MEKP (about 3 tsp) |
That is 1.5 percent for 65 to 85 F. Above 85 F drop to 1 percent; at 60 to 65 F go to 2 percent. Quick field rule: 10 drops per ounce.
Never mix more than you can lay up in 15 minutes. A full gallon catalyzed at once will boil in the bucket.
The job, start to finish
Prep the surface
New mold: wax and release it thoroughly. Old laminate: grind off all gloss, gelcoat and contamination back to solid glass, then wipe with acetone. Polyester is a poor secondary bond, so every bit of its grip comes from clean, freshly ground surface.
Cut everything dry
Cut every piece of fabric to size and stage it in the order it goes down, smallest first for a repair, largest first for a mold. Cut all of it before you mix a drop, because once resin is catalyzed you have about 15 minutes and no time to be looking for scissors.
Mix small batches
Catalyze only what you can lay up in 15 minutes, using the chart at left. Stir thoroughly but slowly to avoid whipping in air, and scrape the sides of the cup. Pour it out of the mixing cup as soon as it is mixed: resin left in a deep cup heats up and kicks early.
Wet out
Brush resin on, lay mat or 1708 in, and stipple straight down with the brush until it turns translucent. Do not brush sideways: that drags the fibers out of place. Work wet on wet through your stack rather than waiting for cures between plies.
Roll out the air
Run a laminating roller firmly in both directions over every layer until the white flecks disappear. White means dry glass or trapped air, and both are weak spots you cannot fix after cure. This one step is the difference between a laminate that hits its numbers and one that does not.
If something goes wrong
Laminate feels tacky
Normal. Clear laminating resin stays tacky on top so the next layer bonds to it.
White flecks in the layup
Dry glass or trapped air. Roll or stipple it out while wet; after cure it must be ground out.
The bucket got hot fast
Too big a batch or too much MEKP. Pour it out thin outdoors and mix smaller.
Nothing hardened
Too little MEKP, or under 60 F. Warm the space and remix.
Resin ran off vertical
Thicken it with fumed silica, or laminate in smaller sections.
125 sq ft of 1708 takes roughly 4.7 gallons at standard hand-layup ratios, so five gallons lays up every yard in a single layer.
