Phender Pro Quick Release Fender Cleat

Phender Pro Quick Release Fender Cleat

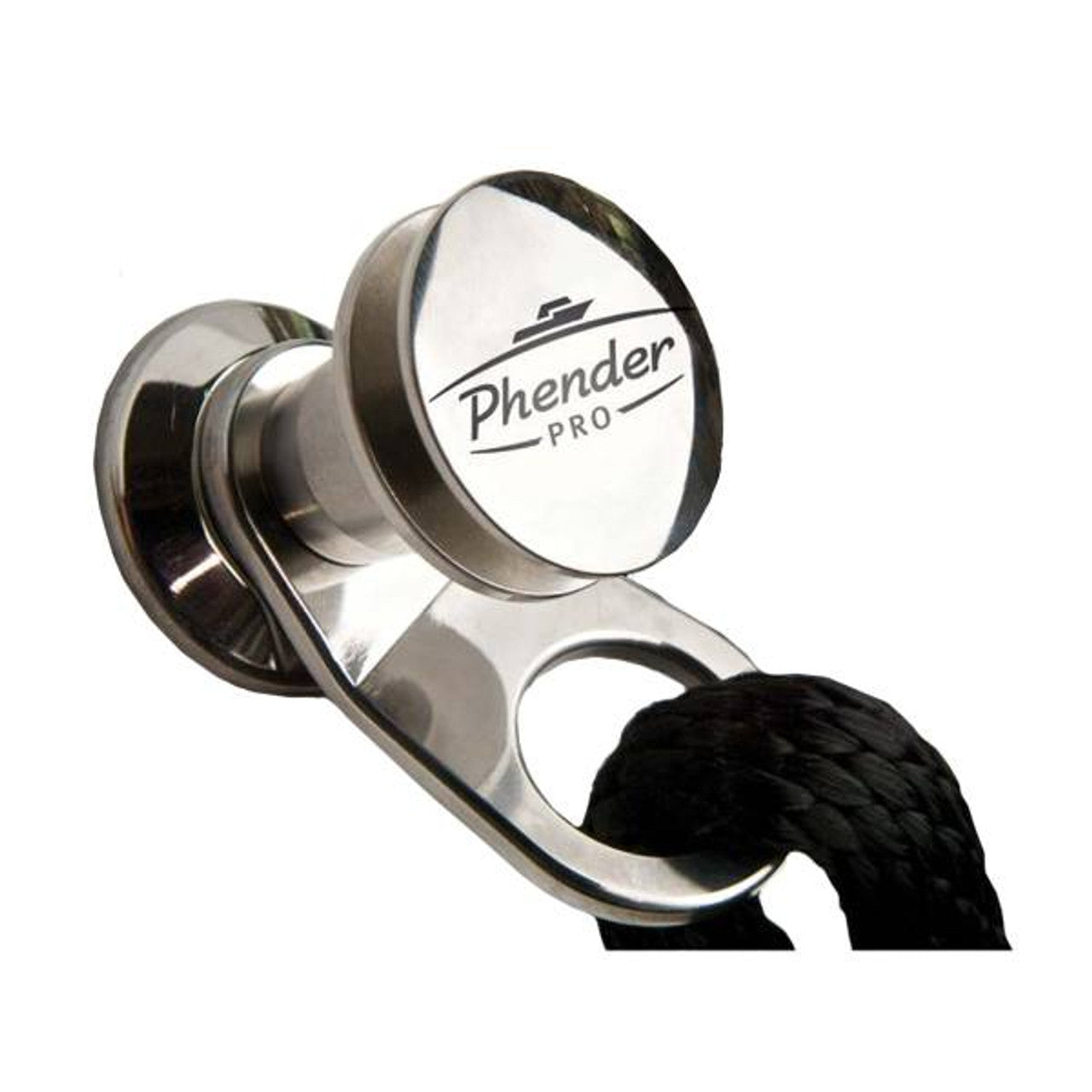

Big Sky Precision's Phender Pro is the most advanced, easy-to-use, quick-release fender cleat on the market. The Phender Pro combines advanced technology, innovative design, and durability to make docking effortless. This cleat is machined from solid stainless steel and hand-polished to a mirror finish. The 316 stainless construction ensures ultimate corrosion resistance, making this cleat a great option for fresh and saltwater vessels. The quick-release function of this fender cleat allows you to quickly dock and undock with one simple click.

The Phender Pro has been designed to ensure long-lasting use. Its unique anti-wear design keeps the pin above the receiver, protecting the highly-polished finish. Additionally, the line attachment tabs are CNC-machined to soften to edges, protecting your line. The Dentless, Delrin-tipped pin protects both the receivers and the boat finish. The Phender Pro offers many great features, and its installation is quick and easy.

For a 24-foot boat, it is recommended to purchase (2) Phender Pro Quick Release Fender Cleats, (1) Phender Pro Quick Release Fender Receiver, and (1) Phender Pro Install Tool.

Sizes Available:

• 1/2"
• 3/8"

NOTE: The Phender Pro Install Tool is required for installation.

Instructions:

The following tools are recommended for the installation process:

Pre-Installation:

Prior to installation, you will need to figure out where you will be installing your Phender Pro Receivers. Consider the following:

Once you have decided on where to place your Phender Pro Quick Release Receivers, it's time to drill the holes.

• Using the Locator Disk, mark the dead center of the receiver with a pencil.
• 1/2" Receiver = 1" Hole
• 3/8" Receiver = 3/4" Hole
• Center punch each hole so the drill won't wander (a small nail can substitute for a center punch).
• Drill the hole from the outside toward the inside. Be sure to stop about a third of the way through.
• Use the hole in the center to drill from the inside just enough to score the fiberglass.

Installing the Receiver:

• Clean inside and outside surfaces
• Screw install tool into the brass nut plate
• Remove protective film from adhesive tape
• Pivot nut plate, insert in hole, pivot back and pull several times to adhere tape on back side of fiberglass
• Unscrew install tool
• Apply marine grade silicone to underside of receiver head
• Apply Loctite to receiver threads, screw into brass nut plate and tighten with Allen wrench

For more information regarding installation, refer to the video above. Each Phender Pro product comes with installation instructions included.

Frequently Asked Questions

What is the Phender Pro Quick Release Fender Cleat used for?

The Phender Pro Quick Release Fender Cleat is designed to make docking and undocking easier by allowing a fender to be released with one click. Its 316 stainless steel construction is suited for fresh and saltwater vessels, while the quick-release design provides a convenient way to manage fenders.

What is the Phender Pro Quick Release Fender Cleat made from?

The cleat is machined from solid 316 stainless steel and hand-polished and passivated to a mirror finish. It features a heavy-duty machined tab with softened edges, plus a Delrin-tipped pin designed to protect the receiver and boat finish.

What makes the Phender Pro Quick Release Fender Cleat resistant to wear?

The Phender Pro uses a proprietary anti-wear quick-release pin that floats the cleat above the receiver. This design helps protect the highly polished finish. The line attachment tabs also have softened edges to help protect the fender line during use.

What sizes are available for the Phender Pro Quick Release Fender Cleat?

The Phender Pro Quick Release Fender Cleat is available in 1/2-inch and 3/8-inch sizes. The corresponding Phender Pro Install Tool must match the cleat size selected.

Is the Phender Pro Install Tool required to install the Quick Release Fender Cleat?

Yes. The Phender Pro Install Tool is required for installation and is available in 1/2-inch and 3/8-inch versions depending on the Phender Pro size. Installation also requires marine-grade silicone, blue Loctite, a 3/8-inch Allen wrench, and a new 1-inch drill bit for the 1/2-inch receiver or a 3/4-inch hole for the 3/8-inch receiver.

What should be checked before installing a Phender Pro Quick Release Fender Cleat?

Before installation, select a flat location where the receiver will properly position the fender and use the included Locator Disk to verify the area. Check behind the drilling location for structural components, cables, and other obstructions, and place the receivers in matching locations on each side of the boat. Installation instructions are included with the product.
