Vacuum Bagging Film: Complete Setup Guide for Perfect Composite Results

What Is Vacuum Bagging Film and Why It Matters

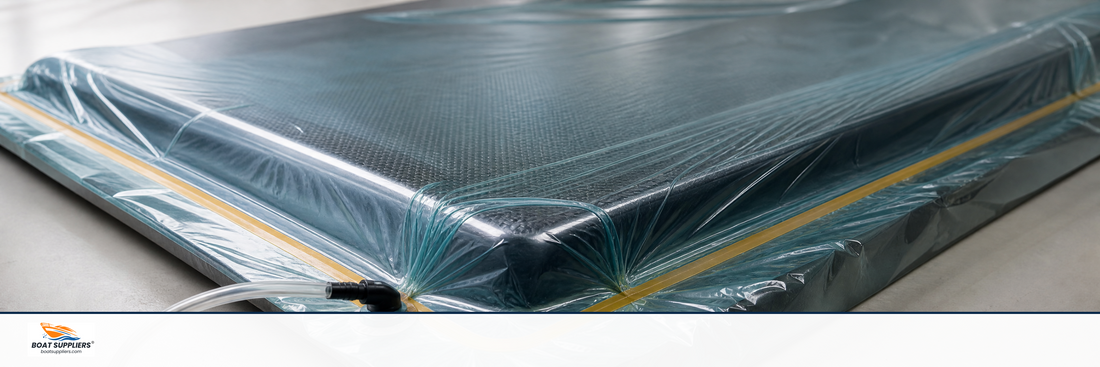

Vacuum bagging film is an essential component in composite manufacturing that creates an airtight seal over your layup, allowing atmospheric pressure to compress the materials while removing trapped air and excess resin. Whether you're repairing a boat hull, building custom marine parts, or working on performance modifications, understanding vacuum bagging film is crucial for achieving professional-quality results.

The process involves placing your composite materials (fiberglass, carbon fiber, or Kevlar) into a mold, covering them with various auxiliary materials, and then sealing everything under a flexible film. When vacuum is applied, the film creates uniform pressure across the entire surface, resulting in stronger, lighter parts with superior surface finish.

Types of Vacuum Bag Material Composite Systems

Nylon Bagging Film

Nylon films are the most common choice for vacuum bagging applications due to their excellent conformability and chemical resistance. These films stretch well around complex curves and maintain their integrity under vacuum pressure. The nylon bagging film available in marine supply stores typically comes in V-fold configurations, meaning a 55-inch roll opens to 110 inches wide, providing ample coverage for most boat repair projects.

Nylon films work exceptionally well with epoxy and vinyl ester resins, making them ideal for marine applications where moisture resistance is critical. They're also reusable in many cases, making them cost-effective for multiple projects.

Polyethylene Films

While less common than nylon, polyethylene films offer good chemical resistance and are often more economical for large projects. However, they don't conform as well to complex shapes and may not provide the same level of surface finish quality.

Specialized Vacuum Infusion Film

For resin transfer molding (RTM) and vacuum infusion processes, specialized films designed to handle liquid resin flow are essential. These films must resist resin breakthrough while maintaining vacuum integrity throughout the infusion process.

Essential Components for Vacuum Bagging Setup

Sealing Materials

Creating an airtight seal is absolutely critical for successful vacuum bagging. The edges of your mold must be properly sealed to the vacuum bagging film to maintain consistent pressure. Professional-grade sealing tapes provide the tacky, compressible barrier needed between the mold surface and the film.

Vacuum Connectors and Fittings

Proper vacuum connectors ensure reliable vacuum transmission from your pump to the bag. The aluminum vacuum bag connector provides a durable, reusable connection point that won't fail under vacuum pressure. These connectors typically feature barbed fittings that grip vacuum hose securely while providing a smooth surface that won't puncture the bagging film.

Release and Breather Materials

Between your part and the vacuum film, you'll need release materials to prevent the film from sticking to your composite. Perforated release film serves this purpose while allowing air and excess resin to flow through controlled perforations. The blue perforated film with holes on half-inch centers provides optimal flow characteristics for most marine composite applications.

Step-by-Step Vacuum Bagging Process

Surface Preparation

Start with a clean, properly prepared mold surface. Remove any contamination and apply appropriate mold release agents. The mold edges must be smooth and free of sharp corners that could puncture the vacuum film.

Layup Assembly

Place your reinforcement materials (fiberglass cloth, carbon fiber, etc.) in the mold according to your design. Apply resin if using a wet layup process, or prepare for resin infusion if using that technique. Ensure proper fiber orientation and remove any wrinkles or air bubbles at this stage.

Auxiliary Material Placement

Layer your auxiliary materials in the correct sequence: release film directly on the part, breather cloth if needed, and finally the vacuum bagging film on top. The perforated release film should contact your part surface, while solid areas prevent resin breakthrough to the breather cloth above.

Film Installation and Sealing

Carefully position the vacuum film over your layup, leaving adequate material around all edges for sealing. Work methodically to avoid wrinkles or folds that could create leak paths. Seal all edges using appropriate sealing tape, ensuring complete contact with both the mold surface and the film.

Vacuum Application

Connect your vacuum system through the fitting, starting with low vacuum to allow the film to conform gradually. Increase vacuum slowly to full pressure, monitoring for leaks or bridging. Maintain vacuum throughout the cure cycle as specified by your resin manufacturer.

Best Practices for Vacuum Bagging Success

Avoiding Common Mistakes

One of the most frequent errors is insufficient edge sealing, which leads to vacuum leaks and uneven pressure distribution. Always test your vacuum integrity before beginning the cure cycle. Another common issue is using the wrong film thickness – too thin and you risk punctures, too thick and you lose conformability.

Temperature and Cure Considerations

Different vacuum bagging films have varying temperature ratings. Ensure your chosen film can handle the cure temperature of your resin system. Nylon films generally offer better high-temperature performance than polyethylene options.

Reusability and Storage

Properly maintained vacuum bagging films can often be reused multiple times, especially nylon varieties. Clean films carefully after use, inspect for damage, and store them properly to extend their service life.

Choosing the Right Vacuum Bagging Film for Marine Applications

Marine environments present unique challenges including moisture, salt exposure, and temperature variations. For boat repairs and modifications, nylon bagging films typically provide the best combination of chemical resistance, conformability, and durability. Consider the complexity of your part geometry, cure temperature requirements, and whether you'll be doing wet layup or resin infusion when selecting your film.

The investment in quality vacuum bagging materials pays dividends in final part quality. Professional-grade films, connectors, and sealing materials ensure reliable results and can be reused across multiple projects, making them cost-effective for serious boat builders and repair professionals.

Remember that vacuum bagging is as much art as science. With practice and attention to detail, you'll develop the skills needed to create professional-quality composite parts that stand up to the demanding marine environment.
