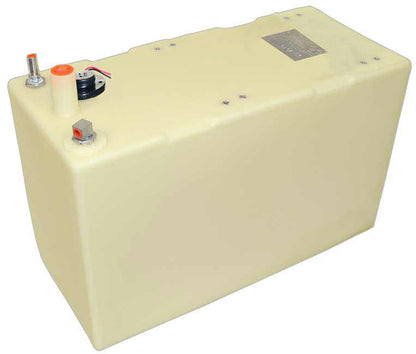

Moeller 20 Gallon Fuel Tank

Moeller 20 Gallon Fuel Tank

Unlike aluminum tanks, this comprehensive line of cross-linked polythylene models is a distinctive Moeller innovation featuring: ethanol & biodiesel compliant corrosion/pit resistance & exclusive Moeller tite pioneering. Each tank is complete with molded fill neck & withdrawal/vent fittings molded directly into the shell. Moeller permanent fuel tanks have ABYC-compliant fittings with seamless connections to low-perm hoses.

Helpful Hint: You may have more area above the fill than the rest of your tank, this will allow you to have a larger tank!

Specifications:

Frequently Asked Questions

What is the Moeller 20 Gallon Fuel Tank designed for?

The Moeller 20 Gallon Fuel Tank is a cross-linked polyethylene permanent fuel tank designed for below-deck applications. It features ethanol and biodiesel compliance, corrosion and pit resistance, and molded fill, withdrawal, and vent fittings integrated into the tank shell.

What are the dimensions and capacity of the Moeller 20 Gallon Fuel Tank?

The Moeller 20 Gallon Fuel Tank has a capacity of 20 gallons (76 L) and measures 26 inches long, 11.75 inches wide, and 19 inches high. Add 2-1/8 inches (54 mm) to the tank height dimension to accommodate the fill height.

What type of withdrawal fitting does the Moeller 20 Gallon Fuel Tank have?

The tank features a 3/8-inch machined aluminum withdrawal fitting with a 360-degree swivel poplock for hook-up convenience. It also has a 1-1/2-inch diameter fill spout and molded withdrawal and vent fittings.

What temperature range is the Moeller 20 Gallon Fuel Tank rated for?

The Moeller 20 Gallon Fuel Tank has a temperature rating of -40°F to 176°F and a UV rating of 8.

Which tie down is used with the Moeller 20 Gallon Fuel Tank?

The Moeller 20 Gallon Fuel Tank is specified to use the 300110 bracket tie down. Verify the available mounting area and tank dimensions before installation.

How many fuel pickups does the Moeller 20 Gallon Fuel Tank have?

The Moeller 20 Gallon Fuel Tank has one fuel pickup. The tank also includes molded fill neck, withdrawal, and vent fittings integrated directly into the tank shell.
