Jabsco HD5 HotShot Washdown Pump

Jabsco
Jabsco HD5 HotShot Washdown Pump

Jabsco HD5 HotShot Washdown Pump

SKU:ITT-P501J-119N-3A

Brand Jabsco Part No. P501J-119N-3A UPC 671880841962

Regular price $267.89 USD
Sale price $267.89 USD Regular price USD
Sale Sold out
Shipping calculated at checkout.

In stock

Jabsco HD5 HotShot 5GPM Washdown Pump

This Jabsco Washdown kit puts out is designed for use on yachts on all sizes. The Hotshot washdown kit harnesses 5GPM with 70PSI to make cleaning your decks, cockpits, and anchors with ease. These HotShot kits come with a wide diameter heavy duty motor that sits in a cast aluminum lower housing for unmatched durability with a long working life. For efficient and quiet operation this washdown kit utilizes dampening mounting feet for lessened vibration. This self-priming motor allows for a versatile installation and is able to run dry without damage to the system. The integrated, sealed pressure switch allows for on demand operation. This kit comes with all you need to get your boat spick and span.

The HotShot HD5 Washdown kit replaces the following Jabsco washdown kits: 82505-0092, 32700-0092, and 32700-0392

Click here for Jabsco HotShot HD5 Washdown Kit Technical Data Sheet

Specifications

Package size17.5 in x 8 in x 5.5 in
Shipping weight9.1
  • Nominal Voltage: 12VDC
  • Flowrate: 5GPM (18.9 LPM)
  • Max Amp Draw: 16A
  • Recommended Fuse Size: 25
  • Pressure Switch Off Setting: 70PSI (4.8 BAR)
  • Fluid Temperature Range: 32° F - 140° F
  • Dry Self-Priming Height: 8'
  • Length: 9.6"
  • Width: 5"
  • Height: 4.7"
  • Motor Height: 4"
  • Mounting Length: 2"
  • Mounting Width: 3.6"
  • Pump Weight: 6.5 lbs

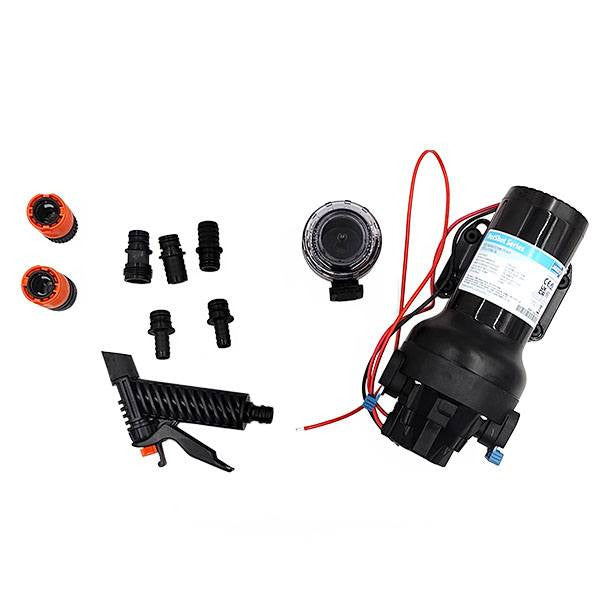

  • 2 - 1/2" Straight Hosebarb
  • 2 - 3/4" Straight Hosebarb
  • 1 - 3/4" US GHT
  • 1 - 90° 20 Mesh Quick Connect Strainer
  • 1 - Standard Trigger Nozzle
  • 1 - 1/2" Crimp Style Quick Connect Trigger Adapter
  • 1 - 3/4" US GHT Quick Connect Trigger Adapter
  • Efficient & Quiet Operation
  • Versatile Installation
  • Quick-Connect Ports
  • 5GPM / 70PSI
  • Heavy Duty Motor
  • Can Run Dry
  • Self-Priming Capability
  • Integrated, Sealed Pressure Switch.
View full details
