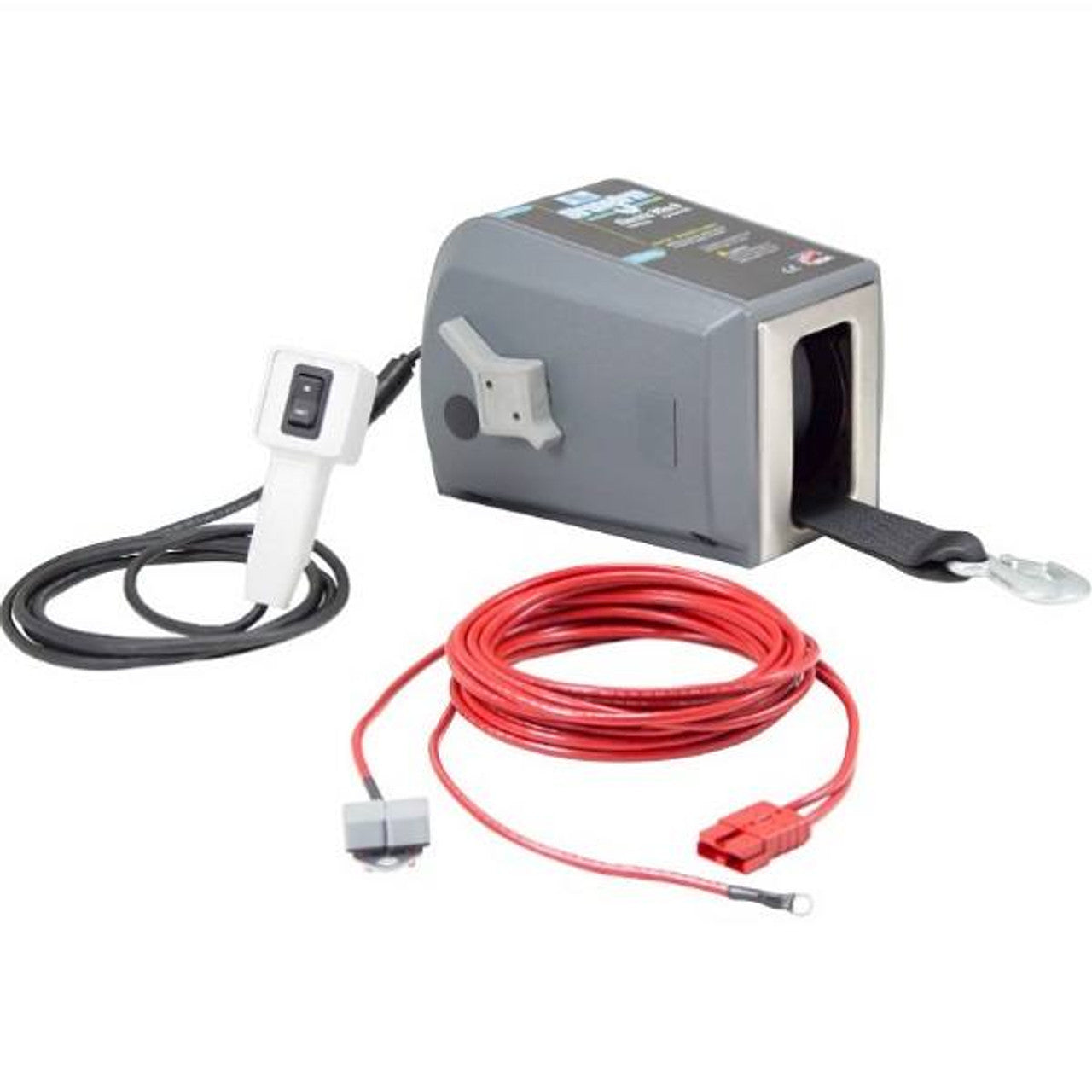

Dutton-Lainson TW9015 Electric Trailer Winch

Dutton-Lainson TW9015 Electric Trailer Winch

This StrongArm trailer winch by Dutton-Lainson features a 12V DC motor making it ideal for vehicle or boat trailer use. The handheld remote control is on a 10' cord making this winch easy for getting your vessel in and out of the water. Powered by your vehicle batter, this winch is easy to install with the included wring harness. Built for horizontal pulling applications with a max runtime of 4 minutes. The clutch lever enables smooth load control while the emergency crank handle has your back in case of power loss. Designed for loads up to 3,000 lbs or up to 9,000 lbs for boats. Powered by a high-torque 12V DC motor this trailer winch has built in circuit breaker overload protection.

Dutton-Lainson StrongArm winches provides the muscle saving manpower and time by making difficult jobs easy. The unique heat treated Spur gear system offers an efficient system that generates less heat and draws less amps than traditional planetary gear winches. Precision needle bearings are utilized for lower friction resulting in a longer lifespan for your witch. A die formed base allows for quick and easy mounting in a variety of locations. The brushed stainless steel front plate combined with the high impact case provides top notch corrosion resistance and durability in harsh marine environments. The unique clutch release allows users to pay out the load in neutral and still control it with a clutch mechanism. When released, the clutch lever automatically returns to a locked position.

Click here for Dutton-Lainson Electric Trailer Winch Manual

Frequently Asked Questions

What is the Dutton-Lainson TW9015 Electric Trailer Winch designed for?

The Dutton-Lainson TW9015 Electric Trailer Winch is designed for horizontal pulling applications on vehicle or boat trailers. Its 12V DC motor supports loads up to 3,000 lbs or up to 9,000 lbs for boats, making it suitable for moving heavy trailer loads.

What is the boat capacity of the Dutton-Lainson TW9015 trailer winch?

The Dutton-Lainson TW9015 has a rated boat capacity of up to 9,000 lbs. For other applications, the winch is designed for loads up to 3,000 lbs. The product is intended for horizontal pulling applications.

What is included with the Dutton-Lainson TW9015 Electric Trailer Winch?

The Dutton-Lainson TW9015 includes a 20' x 2L strap with snap hook, handheld remote control, and wiring harness. The remote has a 10' cord, providing a convenient control location during trailer loading and unloading.

How is the Dutton-Lainson TW9015 powered?

The Dutton-Lainson TW9015 uses a high-torque 12V DC motor and is powered by a vehicle battery. An included wiring harness helps simplify installation, and built-in circuit breaker overload protection helps protect the winch during operation.

How does the clutch work on the Dutton-Lainson TW9015?

The clutch release allows the load to be paid out in neutral while maintaining control with the clutch mechanism. When the clutch lever is released, it automatically returns to the locked position. An emergency crank handle is also included for use in case of power loss.

How long can the Dutton-Lainson TW9015 run continuously?

The Dutton-Lainson TW9015 is designed for a maximum runtime of 4 minutes. It features a high-torque 12V DC motor, circuit breaker overload protection, and a heat-treated spur gear system designed to generate less heat and draw fewer amps than traditional planetary gear winches.
