Carbon Kevlar Hybrid Fabric: Best of Both Worlds for Marine Composites

Carbon Kevlar hybrid fabric puts two fibers in one cloth: carbon for stiffness at low weight, Kevlar aramid for toughness in tension and resistance to impact. Order the 5.5oz 2x2 twill for most structural boat work and the 4.8oz plain weave for tight curves, small detailed parts and face plies, and laminate both with epoxy.

Carbon alone can crack under a sharp hit, and Kevlar alone gives up the stiffness carbon brings. Woven together they give a laminate that shrugs off impact, holds up under fatigue and comes in lighter, which neither fiber manages alone. The sections below work through cloth weight, weave, color, resin and ply schedule so you can spec the right roll for the job.

How the cloth is built

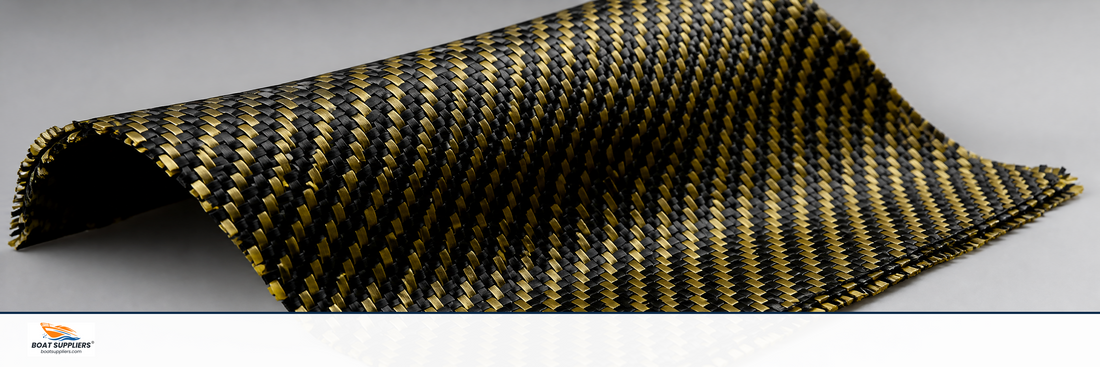

Carbon Kevlar hybrid cloth gets both fibers on the same pass through the loom. The warp is carbon, typically 3K tow, and it is what makes the laminate stiff and strong in compression. The fill is Kevlar aramid, which brings the toughness in tension and the impact resistance. Every ply holds both fibers, so every layer you put down contributes both properties together.

Weave pattern controls how the cloth behaves. In a plain weave each yarn goes over one and under the next, which locks the grid and keeps the fabric stable in-plane. A twill shifts that interlacing on a diagonal, which lets the cloth wrap compound curves and stay undistorted. You can get either one 50 inches wide, a width that works for most hull and panel jobs on a boat. Calculate the yardage you need and buy 10 percent extra or more to cover overlaps, trimming and waste.

Per ply, cured in an epoxy wet layup, the plain weave runs 0.010 to 0.012 in thick and the twill 0.012 to 0.015 in. How much resin you leave in and how hard you consolidate decide where you land in each range.

What a hybrid does better on a boat

Impact: where straight carbon lets you down

Carbon alone makes a light, stiff laminate that does not like sudden impact. Hit it with a concentrated load (a rock, the corner of a dock cleat, a tool dropped on deck) and it can crack without much warning. Weave Kevlar in and the aramid yarns take that energy, spread it out and stop a crack before it travels, so the laminate stays whole. That is worth having on bow sections, hull bottoms and anywhere else that sees contact.

Weight: lighter than fiberglass

Built to the same strength, a carbon Kevlar laminate weighs 30 to 40 percent less than one reinforced with ordinary fiberglass. A lighter boat displaces less, burns less fuel and handles better. Racing hulls and performance center consoles feel the difference immediately; cruisers get more range and less strain on the running gear.

Fatigue: holding up to repeated flexing

Aramid resists fatigue well, and boats load their laminates over and over. A hull bottom flexes thousands of times in one season; bulkheads and brackets are stressed each time the hull works through a seaway. Through those cycles a hybrid laminate keeps its mechanical properties far longer than plain fiberglass, which explains why you find it in race boats and in commercial work where the load cycles pile up.

Side by side: the 4.8oz plain and the 5.5oz twill

4.8oz plain weave for small parts and tight shapes

Tight radii, compound curves and fiddly molded shapes are where the 4.8oz carbon/Kevlar plain weave (yellow/black) earns its spot. A heavier cloth tends to bridge across those features; this one follows them. Plain weave is also the steadier of the two constructions, so it is easier to manage dry and holds its shape better when you are laying up without a helper.

Reach for it too when the schedule calls for thickness in small steps, with hybrid plies interleaved between other reinforcements. The light weight gives fine control over how much each ply adds, which is useful when you need to match a laminate that is already there or stay under a target weight. Put your dimensions into the resin calculator before cutting so you know how much epoxy the wet-out needs.

Good fits: detailed molded parts, weight-critical builds, console brackets, cosmetic structural repairs, and anyone using hybrid cloth for the first time.

5.5oz 2x2 twill for most structural jobs

Most of the structural work in this range falls to the 5.5oz 2x2 twills. At the same weight, the diagonal twill pattern drapes clearly better than a plain weave, so the cloth settles into moderate compound curves with no pinches or wrinkles. It also builds faster: each ply adds more thickness, so structural panels and hull reinforcement need fewer layers.

There are four color pairs, every one 50 inches wide:

• Black/blue 5.5oz twill: understated, a good match for structural interior work that stays exposed.
• Black/yellow 5.5oz twill: the contrast between yellow Kevlar and black carbon makes it easy to keep track of fiber direction in an involved layup.
• Black/orange 5.5oz twill: the orange fill is the most visible of the set, so a quick look confirms orientation while you stack plies.
• Black/red 5.5oz twill: a striking look for clear-coated parts when the finished appearance matters.

Good fits: bulkhead skins, deck repairs, hull reinforcement panels and structural brackets, plus any surface that is flat or only mildly curved where you want build rate and drape at once.

Color helps you lay up straight

Beyond looks, the bright fills (yellow, orange, red) make fiber direction easy to verify when a schedule mixes ply angles, say 0/90 plies alternating with plus or minus 45 degrees. In dim shop light the colored fill against the black carbon warp gives you a reference you can read instantly, so plies don't go down at the wrong angle. Blue is the subtle option: the black/blue twill looks more uniform from across the room, which is why we point people to it when the laminate will show through a clear coat.

Which resin, and how to wet it out

Epoxy is the resin for carbon Kevlar hybrid in structural boat work. It grips both the carbon and the aramid, it does not carry polyester's moisture sensitivity or cure shrinkage, and it lasts the way hull work has to. Vinyl ester will do when epoxy is not an option. Keep polyester resin out of structural parts in this cloth; it does not bond reliably to aramid.

Hand layup wants a thin marine laminating epoxy, one that runs 600 to 1,200 cP at room temperature, so it penetrates the carbon tows and aramid yarns fully and stays open long enough to do it. As a baseline for most shops, look at a 2:1 or 3:1 laminating system that gives 25 to 45 minutes of pot life at 70 degrees F with a 500g mass. In hot weather, batch less at a time or move to a slow hardener before the cup gels on you. Infusion and vacuum-assisted wet layup need a thinner, longer system: under 500 cP and more than 60 minutes of pot life, enough time to get full vacuum and check that everything is wet out before the resin kicks. Whatever you choose, read its technical data sheet and make sure it is rated for aramid before you build a structural schedule around it.

Plan on taking your time with wet-out regardless of the epoxy. Carbon tows soak up resin at one rate and Kevlar yarns at another. Work it in methodically from the center toward the edges with a roller or brush, and do not lay the next ply until the Kevlar has fully wet out. Rushing leaves dry aramid you won't find until the part fails. Vacuum bagging a structural panel takes control of the fiber-to-resin ratio and compacts every ply down onto the previous one.

Cutting hybrid cloth

Aramid fiber dulls blades fast. Use fabric scissors or a rotary cutter, keep them sharp, and have replacement blades on the bench. If hybrid cloth is a regular job for you, a pair of serrated Kevlar shears earns its place. A blade that has gone dull chews the aramid instead of cutting it, and the frayed, ragged edge it leaves takes up resin unevenly where one ply meets the next.

Lay out and mark each cut before the shears come out; the black and colored yarns crossing each other make it hard to sight a straight line in shop lighting. Square the cloth up on a flat table, unroll it against a straightedge, and chalk the line or use a fabric marker. Dispensing it from a rack, not a flat roll, stops the weave skewing as you measure.

Ply schedules that work

• Non-structural hull panels and deck repairs: two plies of 5.5oz twill on a foam or balsa core give a stiff panel that resists impact.
• Brackets and patches that carry high loads: a solid laminate of three plies of 5.5oz twill, wet laid with no core.
• Performance powerboat bottom reinforcement: start with 5.5oz twill, four to six plies, alternating plies between plus or minus 45 degrees and 0/90 so the load is carried in all directions.

For a lighter schedule, cap the heavier structural plies with a ply or two of 4.8oz plain weave as the outer layer; the face comes out cleaner, with a tighter weave showing. Lay out the full schedule before cutting anything. Our laminate thickness chart gives cured thickness per ply for carbon and Kevlar as well as fiberglass, and the resin calculator works out the batch so you don't run out of resin partway through a hot day.

Where it earns a place on a boat

We'd put carbon Kevlar hybrid in these places: bow sections and chines that need hull reinforcement because they take the most impact; structural deck repairs that have to stay light and will be in plain view; bulkhead skins over foam core; consoles and brackets that must be tough without adding weight; and keel reinforcement on sailboats that take grounding loads. It costs more than ordinary reinforcement, yet in each of those spots the stiffness, toughness and weight savings together set how long the repair or part lasts before it needs attention.

Common questions

What to order

• 5.5oz carbon/Kevlar twill, black/yellow: your main structural ply on hull panels, brackets and deck repairs
• 4.8oz carbon/Kevlar plain weave, yellow/black: face plies over heavier structure, compound curves and detail work
• Marine laminating epoxy: two-part, thin (600 to 1,200 cP) for hand layup; confirm it suits aramid before you buy
• Kevlar shears or a serrated rotary cutter: cuts aramid clean; keep spare blades nearby
• Vacuum bagging supplies: film, breather and sealant tape for compacting structural panels
