Vinyl Ester Resin Application: Professional Techniques for Superior Marine Composites

Understanding Vinyl Ester Resin Application for Marine Projects

When it comes to creating durable, long-lasting marine composites, proper vinyl ester resin application is crucial for achieving professional-grade results. Unlike standard polyester resins, vinyl ester offers superior chemical resistance and mechanical properties, making it the preferred choice for boat hulls, decks, and critical structural components that face harsh marine environments.

Whether you're building a new boat, performing major repairs, or creating an osmotic barrier, understanding the nuances of vinyl ester application will help ensure your project stands up to years of saltwater exposure and heavy use.

Why Choose Vinyl Ester for Marine Applications

Vinyl ester resin bridges the gap between polyester and epoxy resins, offering the best characteristics of both. Its unique molecular structure provides exceptional resistance to water intrusion, making it ideal for below-waterline applications where osmotic blistering is a concern.

The Premium Vinyl Ester Resin with Hardener delivers superior strength and stiffness compared to traditional polyester resins, while maintaining easier handling characteristics than epoxy systems. This makes it perfect for both professional boatbuilders and serious DIY enthusiasts.

Key Benefits of Vinyl Ester

• Superior chemical resistance to fuel, oils, and saltwater
• Excellent adhesion to fiberglass and other substrates
• Lower water absorption than polyester resins
• Better impact resistance and flexibility
• Ideal for vinyl ester osmotic barrier applications

Essential Preparation for Vinyl Ester Layup

Success with vinyl ester resin application begins with proper preparation. The substrate must be clean, dry, and properly prepared to ensure maximum adhesion and performance.

Start by thoroughly cleaning the surface with acetone or denatured alcohol to remove any wax, grease, or contaminants. For gelcoat surfaces, light sanding with 220-grit sandpaper will improve mechanical adhesion. When applying vinyl ester over existing fiberglass, ensure the surface is free from loose fibers and properly degreased.

Environmental Conditions

Temperature and humidity play critical roles in vinyl ester performance. Ideal application conditions are between 65-75°F with relative humidity below 70%. Higher temperatures will accelerate the vinyl ester gel time, while lower temperatures will extend working time but may affect final cure properties.

Mixing and Application Techniques

Proper mixing is essential for achieving consistent results with vinyl ester resin application. Always use a digital scale for accuracy, as volume measurements can lead to inconsistent ratios due to temperature variations.

Mix the resin and hardener thoroughly using a slow, deliberate stirring motion to minimize air bubbles. Unlike polyester resins that use MEKP catalyst, vinyl ester systems typically use a two-part hardener system that provides more predictable working times.

Working Time and Gel Time Management

Understanding vinyl ester gel time is crucial for successful application. Most formulations provide 20-30 minutes of working time at room temperature, but this can vary significantly based on ambient conditions and batch size. Smaller batches will generally have longer working times due to reduced exothermic heat buildup.

Layup Techniques for Maximum Performance

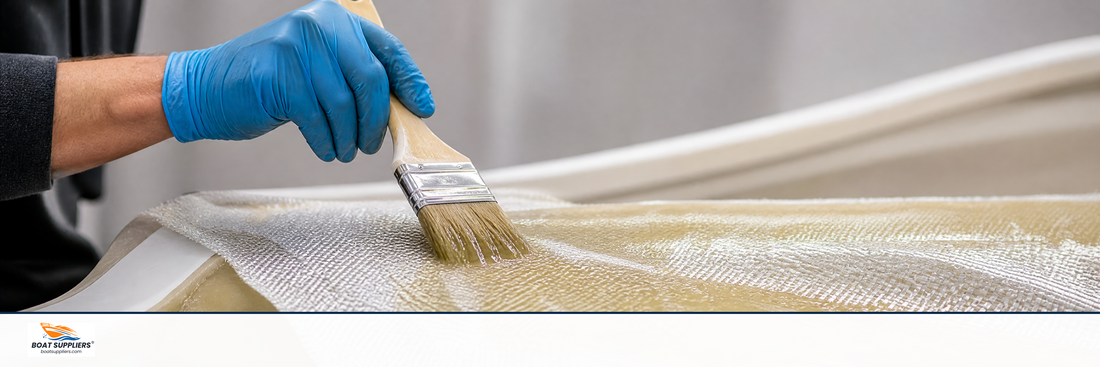

When performing a vinyl ester layup, proper wet-out and consolidation are essential. Apply the mixed resin evenly across the surface using a brush or roller, then position your reinforcement fabric and work out any air bubbles using a consolidation roller.

For multi-layer applications, timing between coats is critical. Apply subsequent layers while the previous coat is still tacky but not liquid. This typically occurs 2-4 hours after initial application, depending on temperature and humidity.

Roller Selection and Technique

Use a high-quality mohair or foam roller for initial resin application, followed by a consolidation roller to remove air bubbles and ensure proper fabric wet-out. Work systematically across the surface, maintaining consistent pressure and overlap patterns.

Creating Effective Osmotic Barriers

One of vinyl ester's most valuable applications is as a vinyl ester osmotic barrier beneath the waterline. This application requires special attention to thickness and uniformity to provide effective protection against water intrusion.

Apply the vinyl ester in thin, even coats, building up to the recommended thickness of 10-15 mils. Use cross-hatching techniques to ensure complete coverage and eliminate thin spots that could compromise barrier effectiveness.

Quality Control for Barrier Coats

Inspect each coat carefully for pinholes, thin spots, or other defects that could allow water penetration. A bright work light held at a low angle can help identify surface imperfections that need attention.

Curing and Post-Application Care

Vinyl ester requires proper curing conditions to achieve full mechanical properties. While the surface may feel dry within hours, full cure typically takes 7-14 days depending on temperature and humidity conditions.

Avoid exposing freshly applied vinyl ester to water or mechanical stress during the initial cure period. If working in direct sunlight, consider using temporary shading to prevent excessive heat buildup that could cause surface defects.

Surface Preparation for Subsequent Coats

If applying additional coats after initial cure, light sanding with 220-grit paper will improve intercoat adhesion. Clean thoroughly with acetone before applying subsequent layers.

Troubleshooting Common Application Issues

Several factors can affect vinyl ester resin application success. Poor adhesion often results from contaminated surfaces or inadequate surface preparation. If you notice fisheyes or crawling, stop application immediately and clean the surface more thoroughly.

Slow cure times may indicate incorrect mixing ratios, low temperatures, or expired materials. Always check expiration dates and store materials according to manufacturer recommendations.

Conclusion: Mastering Vinyl Ester Application

Successful vinyl ester resin application requires attention to detail, proper preparation, and understanding of the material's unique characteristics. When selecting reinforcement materials, consider using appropriate fiberglass weights for your specific marine application and quality materials like the Premium Vinyl Ester Resin with Hardener, you can achieve superior results that will protect your marine investment for years to come.

Remember that practice makes perfect with vinyl ester systems. Start with smaller projects to develop your technique before tackling major structural work or osmotic barrier applications.
