Resin Calculator
Technical Specifications
Mix 2:1, 3:1, or 4:1 by volume (match your hardener)Works with Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only)
Resin TypeEpoxy - low-viscosity laminating system
Mix Ratio2:1, 3:1, or 4:1 by volume (match your hardener)
Viscosity600 cps resin - thin, syrup-like for fast wet-out
Pot Life35-40 min (2:1) / 20-25 min (3:1) / 15 min (4:1) @ 80°F
Tack-FreeSet: 5-6 hr (2:1) / 3-4 hr (3:1) / 1-2 hr (4:1)
Full CureDry: 24-28 hr (2:1) / 8-10 hr (3:1) / 3-4 hr (4:1)
Cured ColorSemi-clear - hardener has an amber tint, dries clear in thin coats
CatalystHardener included - never use MEKP with epoxy
Max Service Temp150-195°F
UV ResistanceNo UV inhibitor - topcoat for sun exposure
Max Pour DepthApplications up to 1/4 in thick
Works With (Fabrics)Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only)
Works With (Fillers)All BS fillers - fumed silica, glass bubbles, Q-Cells, microballoons, milled fiber, chopped strand, cotton flock
Apply OverCured polyester, gelcoat, epoxy, wood, metal (scuff-sand + clean). Epoxy bonds over polyester - not the reverse.
Best ForLamination & wet-out, wood sealing, all-around marine repair
Compare Resins

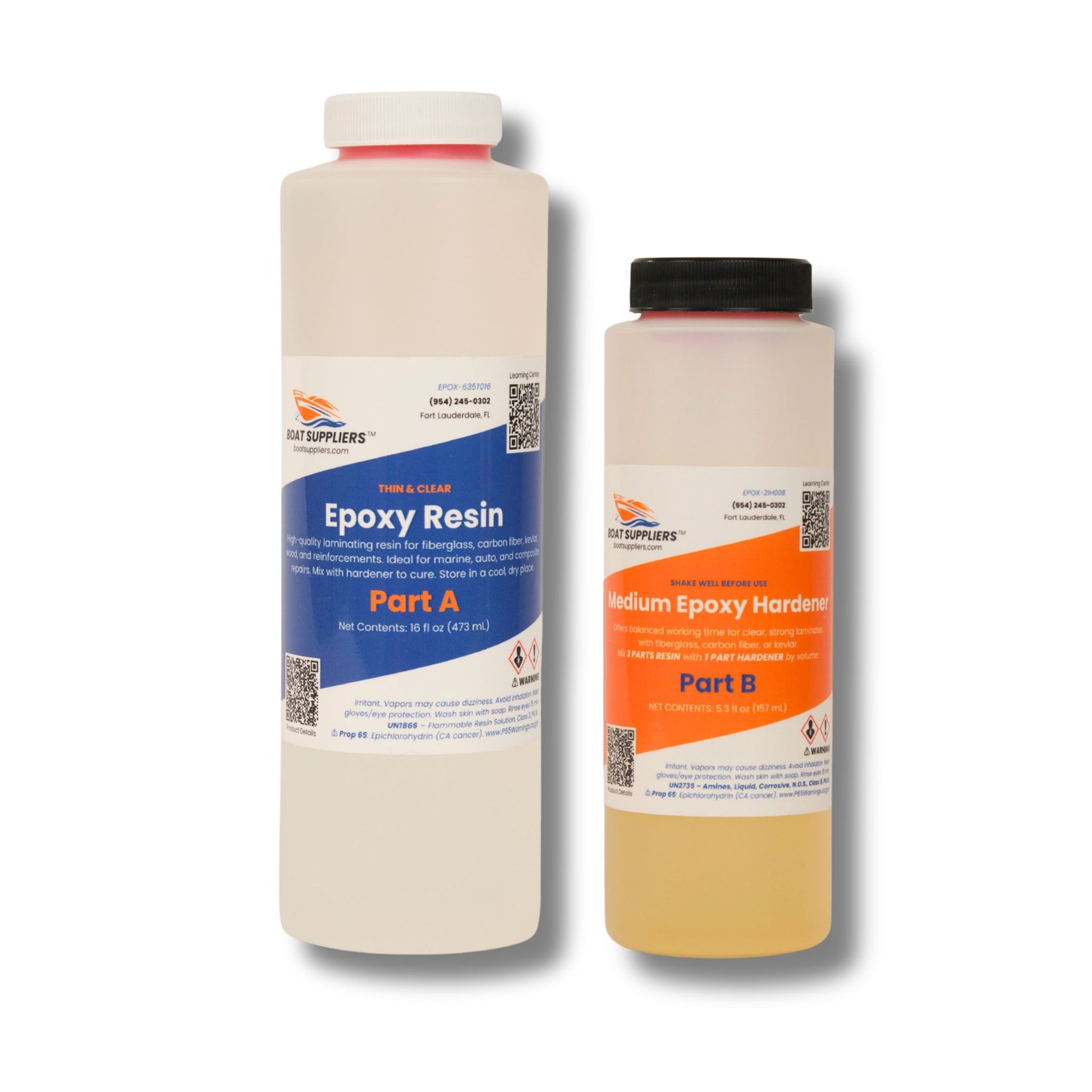

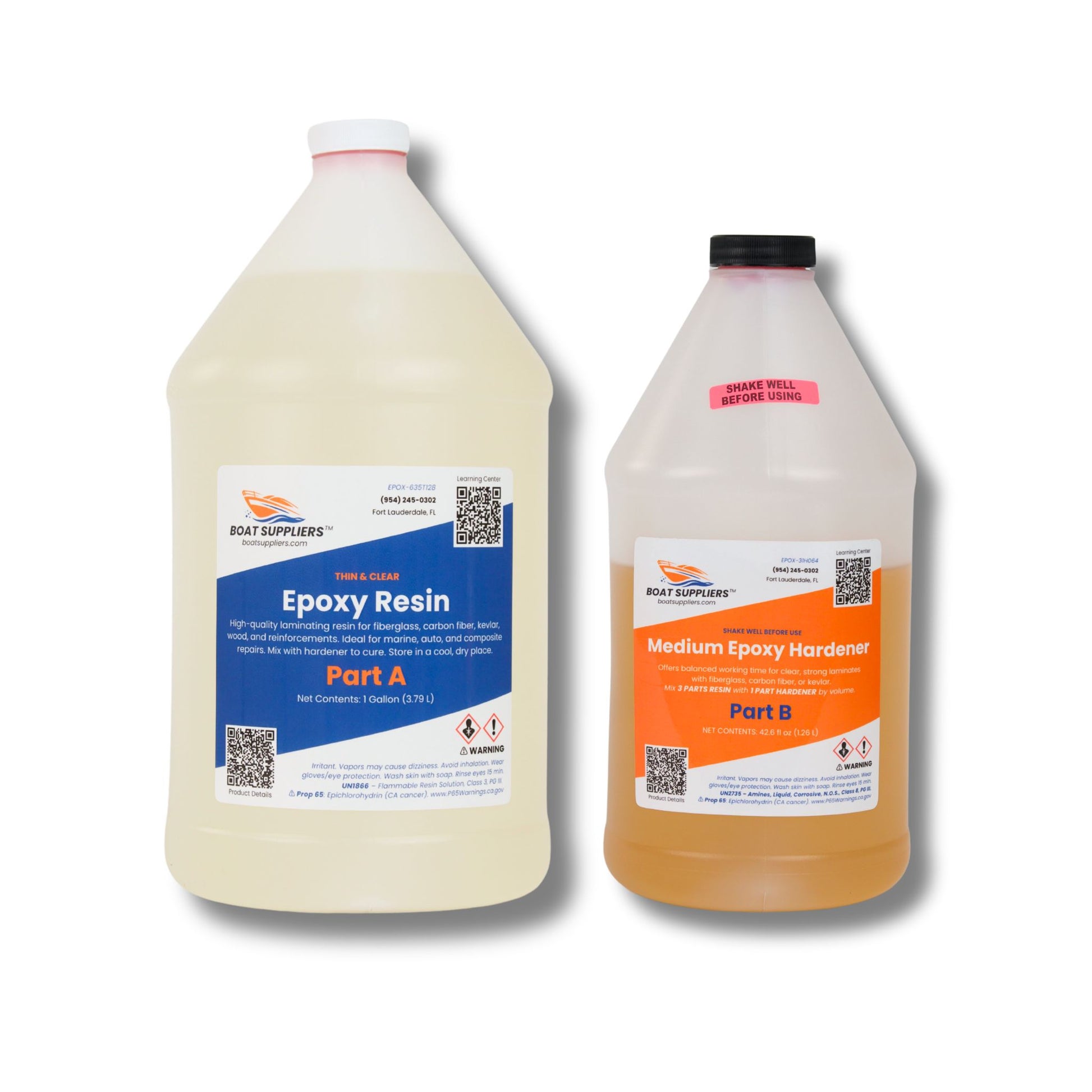

| Product | Boat Suppliers Epoxy Resin Kit – Thin, Clear, with HardenerYou're viewingfrom $17.95
| West System 105 Epoxy Resinfrom $51.47
| Hawk Epoxy R1 Resinfrom $38.99

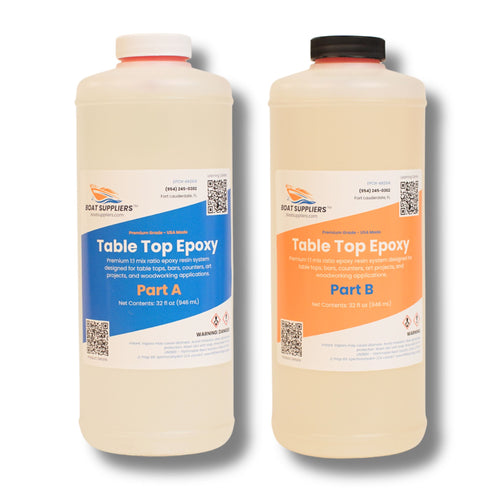

| Boat Suppliers Table Top Kleer Kote Epoxy Resinfrom $44.99
|
|---|---|---|---|---|
| Type | Epoxy - low-viscosity laminating system | Epoxy - base resin for WEST SYSTEM 200-series hardeners | Epoxy - clear, low-blush base resin (Hawk Epoxy system) | Epoxy - 100% solids clear coating (KleerKote #30) |
| Mix Ratio | 2:1, 3:1, or 4:1 by volume (match your hardener) | 5:1 by volume with 205/206; 3:1 with 207 (300 Mini Pumps meter it) | 3:1 by volume with C1/C5; 5:1 with C2/C3 - size-matched kits, do not alter | 1:1 by volume - exact; do not vary |
| Viscosity | 600 cps resin - thin, syrup-like for fast wet-out | Mixed @ 72°F: 975 cps (205) / 725 cps (206) / 760 cps (207) | Low-viscosity; mixed 65-85 KU @ 77°F depending on catalyst | — |
| Pot Life | 35-40 min (2:1) / 20-25 min (3:1) / 15 min (4:1) @ 80°F | 9-12 min (205) / 20-25 min (206) / 22-26 min (207), 100 g @ 72°F | 9-50 min @ 77°F depending on catalyst | Pour right after mixing - massed epoxy kicks fast in the pot |
| Full Cure | Dry: 24-28 hr (2:1) / 8-10 hr (3:1) / 3-4 hr (4:1) | Solid in 6-8 hr (205) to 10-15 hr (206/207); working strength 1-4 days | Solid in 6-24 hr by catalyst; working strength 1-9 days | Light use after 2-3 days; hardens fully over ~2 weeks |
| Cured Color | Semi-clear - hardener has an amber tint, dries clear in thin coats | Clear/amber; exceptionally clear with 207 | Clear - 100% clear, low-blush system | Crystal clear; very slight amber over 1/2 in total depth |
| Max Temp | 150-195°F | HDT 117-123°F by hardener | — | — |
| UV | No UV inhibitor - topcoat for sun exposure | Pair with 207 + UV varnish for bright finishes | Topcoat for UV; only C5 may go under varnish | Resists yellowing, but not for continuous outdoor UV |
| Fabrics | Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only) | Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only) | Fiberglass, carbon fiber, Kevlar, 1708/1208 biaxial (CSM: stitched only) | — |
| Best For | Lamination & wet-out, wood sealing, all-around marine repair | Premium marine coating, bonding & repair | Fiberglass repair & building with a superior moisture barrier | Bar tops, tables, counters, art pours |
| View | View | View |
