8.5oz 2x2 Twill Fiberglass E Cloth

SKU:FG-772538-01

$12.80 USD

$12.80 yd

Sale Sold out

Shipping calculated at checkout.

In stock

Width: 38"

38" 50"

Length: 1 Yard

1 Yard 3 Yard Roll 5 Yard Roll 10 Yard Roll 25 Yard Roll Full Roll (125 Yards)

Quantity

Order several sizes at once width by length, one add to cart

Width	1 Yard	3 Yard Roll	5 Yard Roll	10 Yard Roll	25 Yard Roll	Full Roll (125 Yards)
38"	38" 1 Yard $12.80	38" 3 Yard Roll $37.29	38" 5 Yard Roll $61.95	38" 10 Yard Roll $119.95	38" 25 Yard Roll $269.95	38" Full Roll (125 Yards) $1,181.95
50"	50" 1 Yard $14.95	50" 3 Yard Roll $43.95	50" 5 Yard Roll $72.95	50" 10 Yard Roll $139.95	50" 25 Yard Roll $324.95	50" Full Roll (125 Yards) $1,389.95

Nothing selected yet

Style 7725: 8.5 oz/yd² E-glass in a 2x2 twill. The twill is why you buy it. Two over, two under means the cloth follows shape instead of tenting, so it lays into a compound curve, around a radius or over a corner where a plain weave of the same weight would bridge and trap air.

8.5 oz/yd² E-glass, 2x2 twill, 0/90
Industry style 7725, about 0.0096 in thick per ply
Available 38 in and 50 in wide
Runs in epoxy, polyester or vinyl ester
Cut to 1, 3 and 10 yards, or take the full roll (125 yards)

Handle it square. Twill will rack out of shape if you drag it across the bench, and a racked ply wants to pull the part with it as the resin gels.

Specifications

Ideal for:

Surface reinforcement, waterproofing, mold making, and lightweight composite structures.

Size Options:

Available in various widths to suit your project needs.

Weight:

3oz/sqft

Compatible with:

Epoxy, polyester, and vinyl ester resins for a flawless bond.

Ideal for: Surface reinforcement, waterproofing, mold making, and lightweight composite structures.
🔹 Size Options: Available in various widths to suit your project needs.
🔹 Compatible with: Epoxy, polyester, and vinyl ester resins for a flawless bond.

Weight:

6oz/sqft

72oz/sq yard

Lightweight cloth that is very common in small craft boat building. Wets out fairly transparent. Most used fabric in cedar strip canoe type applications.

View full details

Technical Specifications

E-Glass2x2 Modified TwillWorks with Epoxy, Polyester, Vinyl EsterWoven in the USA

MaterialE-Glass

Industry Style #Style 7725

Weight8.5 oz/yd² (288 g/m²)

Weave / Construction2x2 Modified Twill

Fiber Orientation0°/90° (woven)

Thickness0.0096"

Available Widths38", 50"

Full Roll Length125 yd

Thread Count54 × 18

Tensile / Breaking Strength≥450 / ≥250 lb/in (warp / fill, greige)

Resin-to-Reinforcement Ratio~1:1 by weight

Compatible ResinsEpoxy, Polyester, Vinyl Ester

Best ForDrapable layup over compound curves

Compare Fabrics

Product	8.5oz 2x2 Twill Fiberglass E ClothYou're viewingfrom $12.80	3oz Fiberglass E Clothfrom $16.45	4oz Fiberglass E Clothfrom $7.95	6oz Fiberglass E Clothfrom $10.95
Material	E-Glass	E-Glass	E-Glass	E-Glass
Style	Style 7725	Style 120	Style 1522	Style 3733 (50")
Weight	8.5 oz/yd² (288 g/m²)	3.16 oz/yd² (107 g/m²)	approx. 3.6 oz/yd² (122 g/m²), sold as 4 oz	approx. 5.7 oz/yd² (193 g/m²), sold as 6 oz
Weave	2x2 Modified Twill	4-Harness Satin	Plain weave	Plain weave
Orientation	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)	0°/90° (woven)
Thickness	0.0096"	0.0041"	0.0059"	0.008" to 0.009"
Widths	38", 50"	38"	30", 50"	38", 50", 60"
Full Roll	125 yd	125 yd	125 yd	125 yd
Thread Count	54 × 18	60 × 58	24 × 22	18 × 18
Tensile Strength	≥450 / ≥250 lb/in (warp / fill, greige)	≥125 / ≥120 lb/in (warp / fill, greige)	200 / 185 lb/in (warp / fill, greige)	—
Resin Ratio	~1:1 by weight	~1:1 by weight	~1:1 by weight	~1:1 by weight
Resins	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester	Epoxy, Polyester, Vinyl Ester
Best For	Drapable layup over compound curves	Lightweight finishing and surface coats	Lightweight repairs and surfboard work	General-purpose marine layup and repair
	Selected	View	View	View

What To Expect When You Order Fabric Rolls

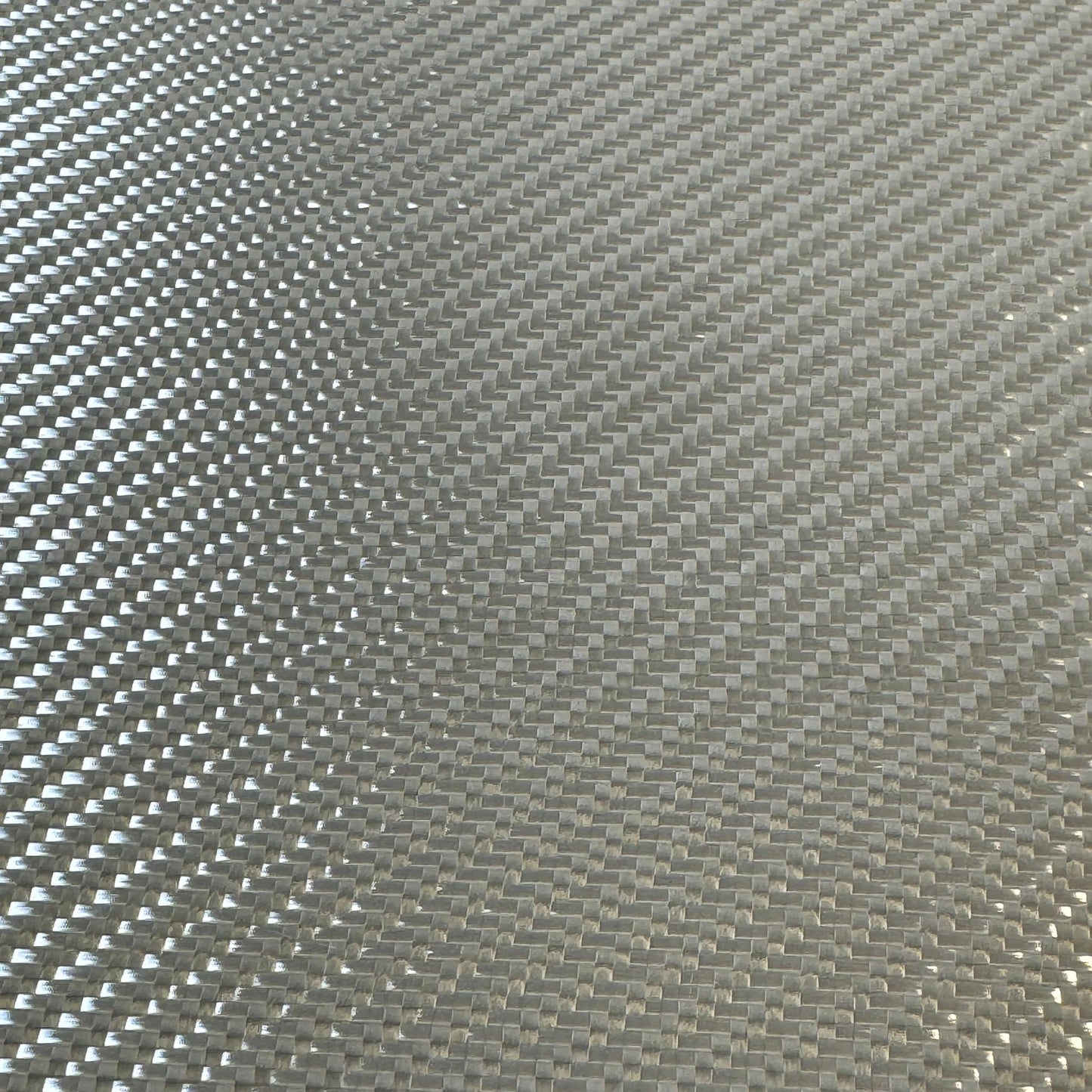

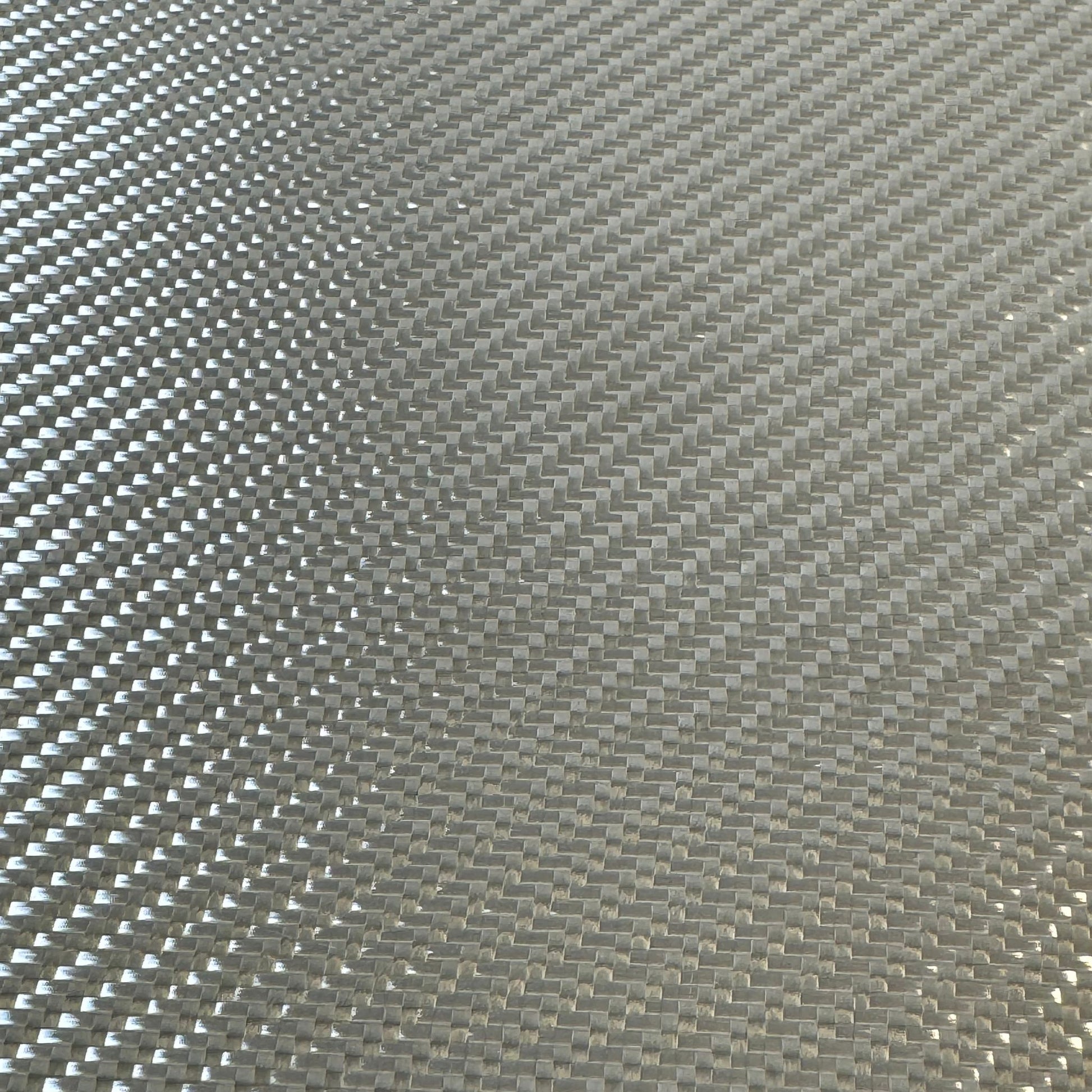

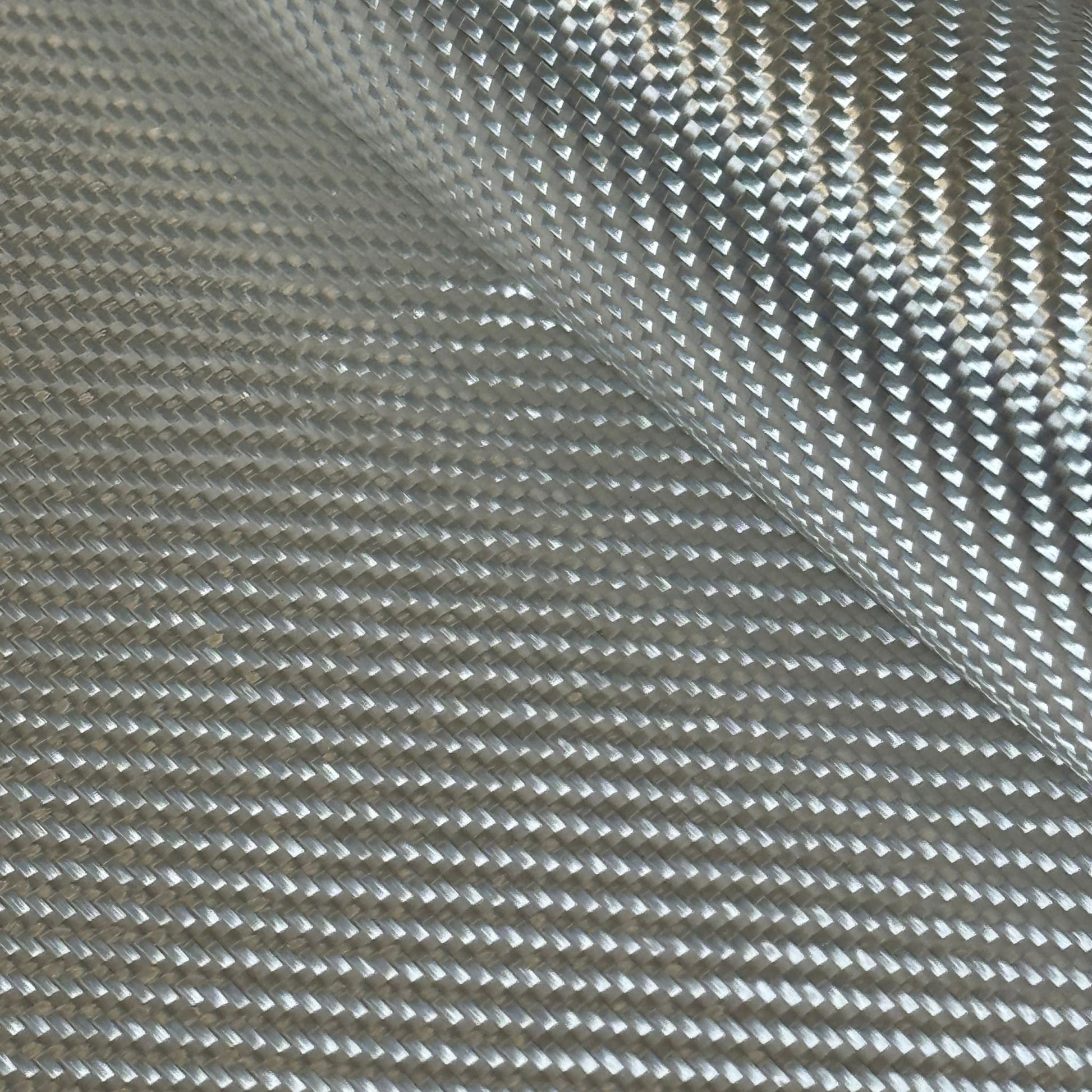

Close-up of 8.5oz 2x2 twill fiberglass E cloth laid flat, showing the two over two under diagonal weave pattern in the glass fibers

Can epoxy resin be used with fiberglass cloth?

Yes, epoxy resin is ideal for wetting out fiberglass cloth and other reinforcements like carbon fiber and Kevlar. It saturates the fabric well and cures into a strong, durable laminate.

Can fiberglass cloth be used on wood or metal?

Yes. With the right resin, fiberglass cloth bonds to wood, metal, foam, and cured fiberglass. Use epoxy for wood and metal, since it grips those substrates far better than polyester. Prep matters more than the cloth: sand to clean, bare material, remove all dust and oil, and wet out the surface before laying the cloth down.

What does the weight (oz) of fiberglass cloth mean?

The weight refers to ounces per square yard. Lighter cloth (e.g., 4oz) is more flexible and used for fine finishing; heavier cloth (e.g., 10oz) provides more strength and bulk.

How do I cut fiberglass cloth?

Use sharp scissors or a rotary cutter on a clean surface. To reduce fraying, run masking tape along the cut line and cut through the middle of the tape, and handle cut edges gently. Keep the cloth dry before layup, since moisture on the glass weakens the resin bond.

What is fiberglass cloth used for?

Fiberglass cloth is used to reinforce composite materials in applications like boat building, surfboard repairs, auto bodywork, and structural laminates. It’s combined with resin to form a strong, lightweight composite.

What’s the difference between fiberglass cloth and chopped mat?

Fiberglass cloth is woven for strength in specific directions, while chopped strand mat is made of randomly oriented fibers and is better for building bulk.
