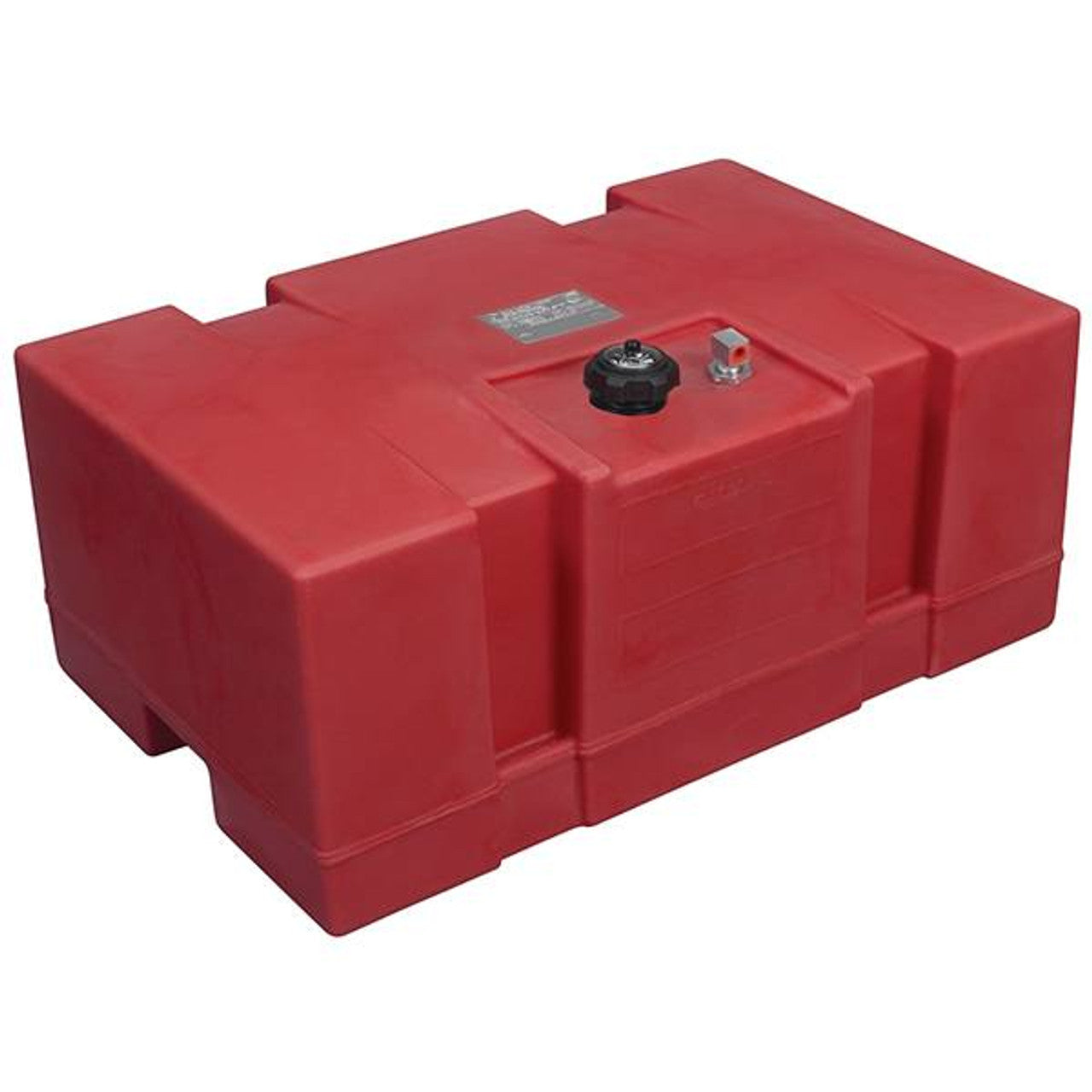

Moeller 24 Gallon Topside Fuel Tank

Moeller 24 Gallon Topside Fuel Tank

Click here for Moeller Topside Fuel Tank Installation Instructions

Frequently Asked Questions

What is the capacity of the Moeller 24 Gallon Topside Fuel Tank?

The Moeller 24 Gallon Topside Fuel Tank has a 24-gallon capacity. It measures 29.25 inches long, 19 inches wide, and 14.09 inches high.

What material is the Moeller 24 Gallon Topside Fuel Tank made from?

The Moeller 24 Gallon Topside Fuel Tank is constructed from high-density polyethylene with UV-stabilized resin, providing the specified material construction for this topside fuel tank.

Does the Moeller 24 Gallon Topside Fuel Tank have a fuel gauge?

Yes. The tank features a mechanical direct-sight gauge with an easy-to-read indicator, allowing the fuel level to be viewed directly through the gauge.

What type of fuel withdrawal fitting does the Moeller 24 Gallon Topside Fuel Tank have?

The tank features a 90-degree 1/4-inch NPT fuel withdrawal elbow that rotates 360 degrees. The rotating elbow is designed to help eliminate hose kinks during installation or use.

Does the Moeller 24 Gallon Topside Fuel Tank include a fuel cap?

Yes. The Moeller 24 Gallon Topside Fuel Tank features a mechanically vented fuel cap designed to provide a positive grip.

Does the Moeller 24 Gallon Topside Fuel Tank have provisions for securing it?

Yes. The tank has molded provisions for tie-down straps, providing designated features for securing the fuel tank.
