What Is Coremat and How to Use It in Composite Layups: Complete Guide

When building strong, lightweight composite structures for marine applications, understanding coremat composite materials can make the difference between a professional-grade layup and a heavy, weak laminate. Coremat is a specialized bulking fabric that adds thickness and stiffness to fiberglass laminates while keeping weight to a minimum—making it an essential material for boat builders and repair professionals.

Whether you're reinforcing a deck, building custom components, or repairing structural elements on your vessel, knowing when and how to use coremat will elevate your composite work to the next level. Let's dive into everything you need to know about this versatile composite core material.

Understanding Coremat Composite Technology

Coremat is a unique bulking fabric made from hollow glass microspheres bonded together with a polyester matrix. Unlike traditional core materials, coremat conforms to complex curves and compound surfaces, making it ideal for marine applications where shapes are rarely flat or simple.

The microsphere structure creates a lightweight core that dramatically increases laminate thickness without adding significant weight. This translates to improved stiffness-to-weight ratios—a critical factor in marine construction where every pound matters for performance and fuel efficiency.

One of coremat's standout features is its ability to prevent print-through, that unsightly pattern that shows through gel coat when the underlying fiberglass weave becomes visible. By creating a smooth, uniform surface, coremat ensures professional-looking finishes on visible surfaces.

How Coremat Works in Layup Sequences

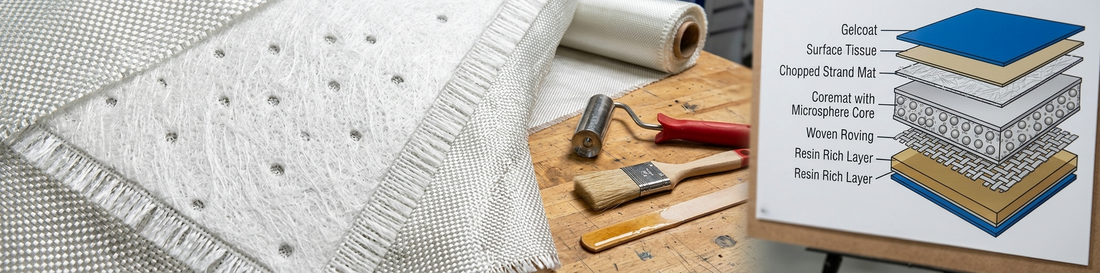

In a typical composite layup, coremat sits between layers of reinforcing fabric like fiberglass cloth or woven roving. The resin saturates both the coremat and the surrounding fabrics, creating a unified structure that's much stiffer than a solid laminate of equivalent weight.

The key is proper resin management—coremat requires adequate resin to fully wet out the microspheres while avoiding resin-rich areas that add weight without strength. This balance takes practice but results in superior laminates.

Coremat Thickness Guide: Choosing the Right Option

Selecting the proper coremat thickness depends on your specific application and structural requirements. The most common thicknesses for marine use are 2mm and 4mm, each serving different purposes in composite construction.

2mm Coremat Applications

The 2mm Coremat Bulking Fabric is perfect for applications requiring moderate thickness increase with maximum conformability. At just 2mm thick, this option easily follows complex curves and tight radii without bridging or creating voids.

Use 2mm coremat for:

• Deck and hull surfaces where print-through prevention is critical
• Interior panels and cabinetry
• Areas with tight curves or complex geometry
• Situations where weight savings are paramount
• Repair work on existing laminates

The thinner profile makes it easier to achieve smooth, professional finishes while still providing noticeable improvements in stiffness and surface quality.

4mm Coremat for Maximum Performance

When structural stiffness is the primary concern, 4mm Coremat Bulking Fabric delivers maximum thickness and reinforcement. This option provides the greatest stiffness increase per weight added, making it ideal for high-load applications.

Choose 4mm coremat for:

• Structural bulkheads and stringers
• High-stress areas like engine mounts
• Large flat panels prone to flexing
• Applications where maximum stiffness is required
• Thick section buildups

While slightly less conformable than the 2mm version, 4mm coremat still handles moderate curves well and provides exceptional structural benefits.

Coremat vs Balsa Core: Making the Right Choice

Understanding the differences between coremat vs balsa core helps you select the best material for each application. Both serve as composite core materials, but their properties and ideal uses vary significantly.

Coremat Advantages

Coremat excels in several areas where traditional balsa core falls short:

• Conformability: Easily follows complex curves without pre-shaping
• Moisture resistance: Won't rot or degrade like wood cores
• Print-through control: Creates smooth surfaces for gel coat applications
• Workability: Can be cut with scissors and shaped by hand
• Consistency: Uniform properties throughout the material

When to Choose Balsa Instead

Balsa core still has its place in certain applications:

• Maximum stiffness in thick sections
• Cost-sensitive projects (balsa is typically less expensive)
• Applications where conformability isn't critical
• Very thick core requirements (balsa available in thicker sheets)

Step-by-Step Coremat Application Process

Proper coremat installation requires attention to detail and good technique. Follow these steps for professional results:

Surface Preparation

Start with a properly prepared surface—clean, dry, and free of contaminants. If applying over existing fiberglass, sand lightly to improve adhesion. Remove all dust with a tack cloth.

First Fabric Layer

Apply your first layer of reinforcing fabric (typically chopped strand mat or light cloth) with resin. This creates a smooth, even surface for the coremat to bond to. Don't let this layer fully cure—apply coremat while still tacky.

For even better results, consider using surfacing veil beneath the coremat to achieve the smoothest possible finish.

Coremat Installation

Roll out the coremat and cut to size, allowing for slight overlap at joints. Place the material and gently work out air bubbles, being careful not to compress the microspheres. The goal is even contact without excessive pressure.

Resin Application

Apply resin evenly across the coremat surface using a brush or roller. Work in sections to ensure complete saturation without creating resin-rich areas. The material should appear uniformly wet but not swimming in resin.

Understanding proper epoxy hardener ratios is crucial for achieving optimal cure properties and avoiding problems during this critical step.

Final Fabric Layers

Apply your final reinforcing layers while the coremat is still wet. This ensures proper inter-laminar bonding and creates a unified structure. Use appropriate rolling techniques to consolidate the laminate and remove trapped air.

Common Coremat Mistakes to Avoid

Several common errors can compromise your coremat composite layup:

Insufficient resin: Under-wetted coremat creates weak, dry spots that compromise structural integrity.

Excessive rolling pressure: Crushing the microspheres defeats the purpose of using coremat and reduces its effectiveness.

Poor timing: Applying coremat to fully cured substrates creates weak bond lines that can delaminate under load.

Inadequate overlap: Failing to properly overlap joints creates weak spots and potential failure points.

Professional Tips for Success

Temperature and humidity control significantly impact coremat performance. Work in moderate conditions (65-75°F, low humidity) for best results. Cold temperatures slow resin cure and can cause poor wetting, while hot conditions accelerate cure times and make working more difficult.

Pre-cutting all materials before starting saves time and ensures better results. Having everything ready allows you to work efficiently within the resin's pot life.

Consider using slow-hardener resin systems when working with coremat, especially on complex shapes. The extended working time allows proper consolidation and air removal.

For critical applications, vacuum bagging techniques can dramatically improve coremat consolidation and final laminate quality.

Conclusion: Mastering Coremat for Better Composites

Understanding coremat composite technology opens up new possibilities for creating stronger, lighter, and better-looking fiberglass structures. Whether you choose 2mm coremat for conformability or 4mm coremat for maximum stiffness, this versatile composite core material will improve your laminate quality and performance.

The key to success lies in proper material selection, careful application technique, and understanding how coremat fits into your overall layup strategy. With practice, you'll discover that coremat is an invaluable tool for creating professional-grade composite structures that stand up to the demanding marine environment.

Take time to experiment with different thicknesses and application methods on test pieces before tackling critical projects. The investment in learning proper coremat techniques will pay dividends in stronger, lighter, and more professional-looking composite work.
