Chopped Strand Mat vs Woven Roving: When to Use Each in Marine Composites

Understanding the Difference: Chopped Strand Mat vs Woven Roving

When it comes to fiberglass work on boats, choosing the right reinforcement material can make or break your project. The debate between chopped strand mat vs woven roving is one every boat owner should understand, as each material serves distinct purposes in marine composite construction and repair.

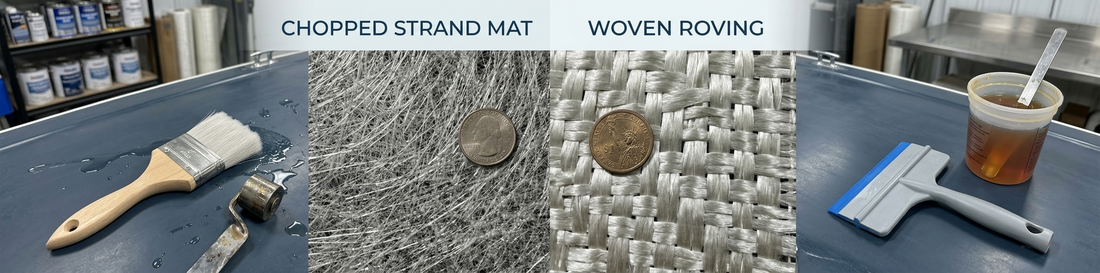

Chopped strand mat (CSM) consists of randomly oriented short glass fibers held together with a binder, while woven roving features continuous glass fibers woven in a specific pattern. This fundamental difference affects everything from strength characteristics to how they handle curves and complex shapes.

What is Chopped Strand Mat (CSM Fiberglass)?

Chopped strand mat is made from randomly distributed glass fibers, typically 1-2 inches long, held together with a styrene-soluble binder. When you apply polyester or vinyl ester resin, the binder dissolves, allowing the fibers to conform easily to complex shapes and curves.

The random fiber orientation provides uniform strength in all directions, making CSM ideal for applications where multi-directional stress is expected. Available in various weights, from lightweight 0.75oz options to heavy-duty 2oz versions, each weight serves specific purposes in marine applications.

Key Characteristics of CSM:

• Excellent conformability to complex curves
• Uniform strength in all directions
• Good resin absorption properties
• Creates smooth surface finish
• Dissolves easily with styrene-based resins

Understanding Woven Roving: The Heavy-Duty Alternative

Woven roving consists of continuous glass fiber bundles woven in a plain or basket weave pattern. The woven roving weight typically ranges from 18oz to 24oz per square yard, making it significantly heavier than most chopped strand mat options.

The continuous fiber construction provides exceptional strength-to-weight ratio, particularly in the direction of the weave. However, this directional strength comes at the cost of conformability – woven roving doesn't bend around tight curves as easily as CSM.

Key Characteristics of Woven Roving:

• High strength-to-weight ratio
• Directional strength properties
• Less resin absorption than CSM
• More difficult to conform to curves
• Excellent for flat or gently curved surfaces

When to Choose Chopped Strand Mat for Your Marine Project

CSM fiberglass excels in several specific marine applications. Its ability to conform to complex shapes makes it invaluable for boat hull repairs, especially around curved sections like the bow or stern.

For beginners, 1.5oz chopped strand mat offers an excellent balance of strength and workability. It's forgiving during application and provides sufficient strength for most repair work while remaining easy to handle.

Best Applications for CSM:

• Hull repairs on curved surfaces
• Small dings and gel coat damage
• Building up thickness in multiple layers
• First layer over foam core materials
• Repairs around hardware mounting points

When working with fiberglass mat layers, start with lighter weights for the initial layer, then build up with heavier weights as needed. This technique ensures good resin saturation and eliminates air bubbles that can weaken the repair.

When Woven Roving is Your Best Choice

Woven roving shines in applications requiring maximum strength with minimal weight. Its higher woven roving weight doesn't necessarily mean a heavier final product – the superior strength allows you to use fewer layers to achieve the same structural integrity.

Ideal Uses for Woven Roving:

• Structural reinforcement of flat panels
• Strengthening transom areas
• Large area hull reinforcement
• Building laminate thickness quickly
• High-stress structural components

However, woven roving requires more skill to apply properly. The material doesn't conform to curves easily and can create bridging over concave surfaces, leading to air pockets and weak spots.

Combining Both Materials: The Smart Approach

Many professional boat builders and repair specialists don't see this as an either-or choice. Instead, they strategically combine both materials to maximize the benefits of each.

A common approach involves using CSM as the initial layer to ensure good surface contact and eliminate air bubbles, followed by woven roving for structural strength, then finishing with another layer of CSM for a smooth surface ready for gel coat or paint.

For targeted repairs, 1.5oz mat tape provides the conformability of CSM in a convenient tape format, perfect for sealing edges or reinforcing corners where traditional cloth might be difficult to position.

Weight Considerations and Layer Planning

Understanding how different weights affect your project is crucial. Lighter weights like 0.75oz CSM excel for final smoothing layers and detailed work, while 2oz provides maximum build-up per layer.

When planning your fiberglass mat layers, consider the total thickness needed and work backwards. Multiple thin layers often provide better strength than fewer thick layers, as each layer can be properly wetted out without creating resin-rich areas that weaken the laminate.

Resin Compatibility and Application Tips

Both materials work well with polyester and vinyl ester resins, but application techniques differ. CSM absorbs significantly more resin than woven roving, so factor this into your material calculations.

Temperature and humidity affect both materials, but CSM's binder system is more sensitive to environmental conditions. Work in moderate temperatures (65-75°F) with low humidity for best results.

Making the Right Choice for Your Project

The choice between chopped strand mat vs woven roving ultimately depends on your specific application, skill level, and project requirements. For most boat owners tackling typical repairs, CSM provides the best balance of workability and performance.

Consider your project's shape complexity, strength requirements, and your experience level. Simple hull dings call for CSM, while major structural work might benefit from woven roving's superior strength characteristics.

Remember that quality materials make a significant difference in your final results. Whether you choose lightweight conformability or maximum strength, using the right material for each application ensures your marine composite work will stand up to years of harsh marine conditions.
